Specifications:
1. V<sub>DS</sub> (Drain-Source Voltage): 20 V max
2. I<sub>D</sub> (Continuous Drain Current): 4 A @ T<sub>A</sub>=25 °C (up to 6 A typ.)
3. R<sub>DS(ON)</sub> (Max): 25 mΩ @ V<sub>GS</sub>=4.5 V, 35 mΩ @ 2.5 V
4. V<sub>GS</sub> (Gate-Source Rating): ±10 V
5. Total Gate Charge (Q<sub>g</sub>): 2–3 nC typ.
6. Package: TSSOP-8 / SOT-23-6
7. Operating Temp.: –55 °C to +150 °C junction

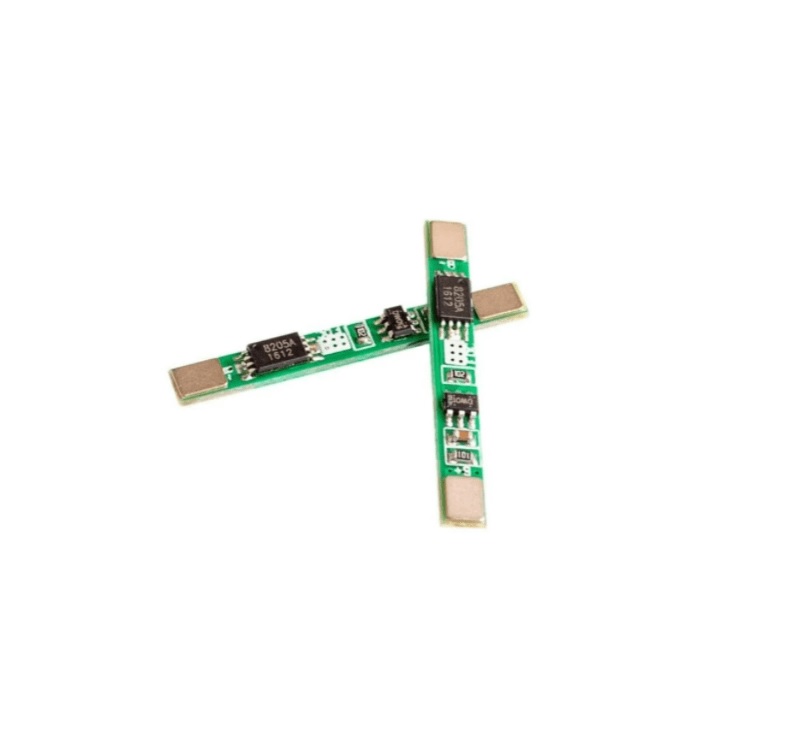

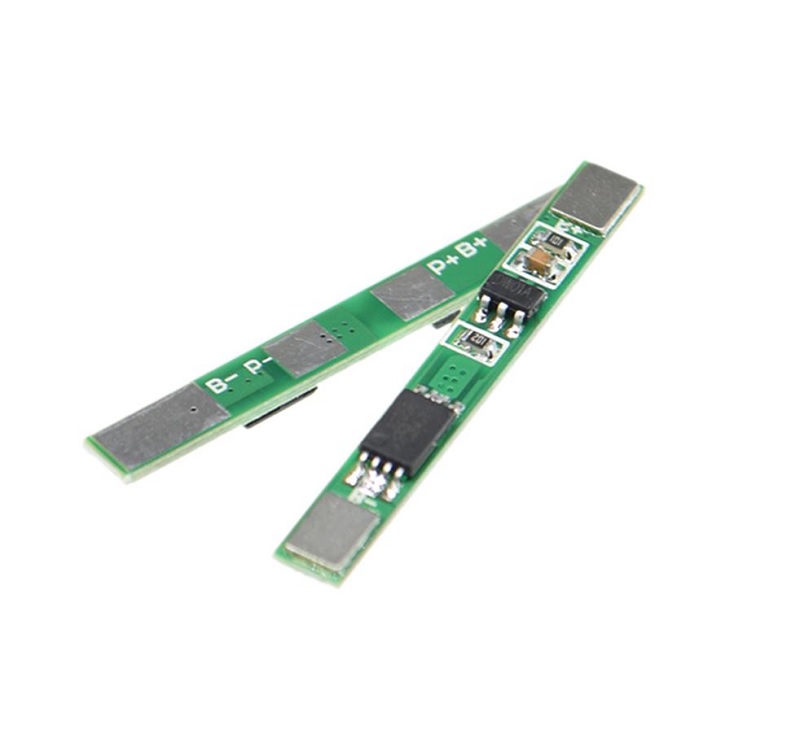

8. Typical Uses: 1-cell BMS boards, portable equipment load switch, low-side PWM drivers, USB power control
Non-returnable
₹29.00 ₹50.00
