LINEAR BLOCKS

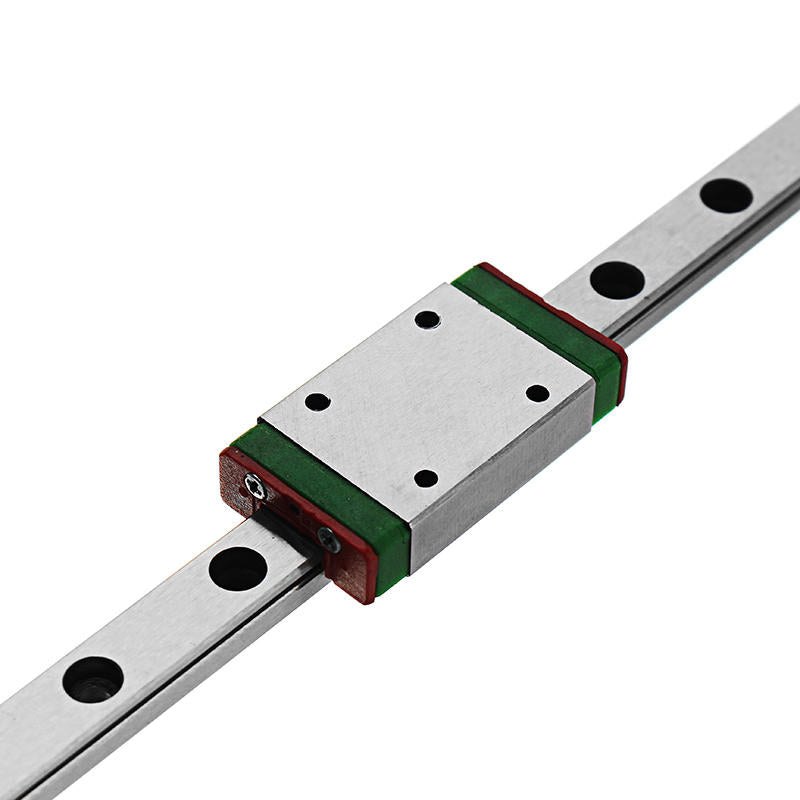

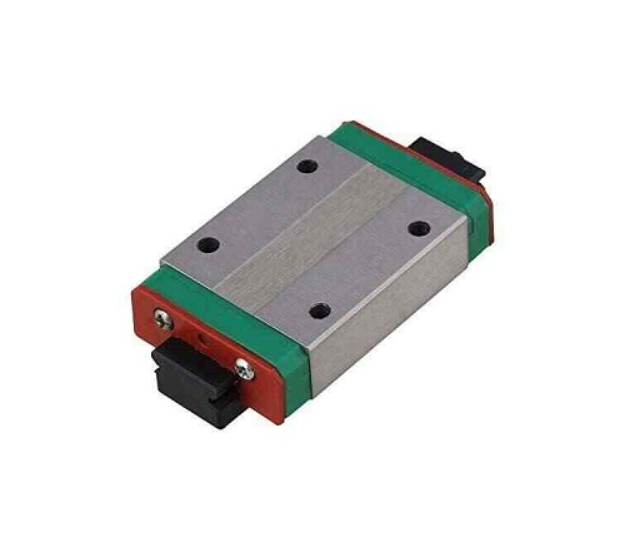

Linear Blocks, also known as linear guide blocks or carriage blocks, are essential components in linear motion systems. They work in tandem with linear guide rails to provide smooth, precise, and low-friction movement in one direction. Commonly used in CNC machines, 3D printers, robotic arms, industrial automation, and inspection systems, these blocks ensure high positional accuracy and stability even under dynamic loads.

Linear blocks come in several types, including:

• HIWIN-style or MGN/MGW series

• Flanged or square blocks

• Short, standard, and long versions

• Preloaded or clearance-adjustable types

Key Features:

• High load capacity and rigidity

• Precision-ground stainless steel or alloy bodies

• Internal recirculating ball bearings for minimal friction

• Corrosion-resistant coatings (optional)

• Easy mounting with multiple hole patterns

• Compatible with matching linear guide rails (e.g., MGN12H, HGH15CA, etc.)

Applications:

• CNC routers, milling, and laser cutters

• 3D printers and plotters

• Industrial automation systems

• Camera sliders and motion rigs

• Medical equipment and semiconductor tools

These blocks are engineered for low noise, long service life, and high repeatability, making them a reliable choice for both DIY builders and industrial-grade machine designs.
