SERVO MOTOR

The Servo Motor category offers a curated selection of motors built for precise angular positioning and smooth control. Servo motors are equipped with built-in feedback systems that allow them to rotate to exact angles, making them perfect for robotic arms, RC vehicles, gimbals, and automation mechanisms.

Types of Servo Motors Available:

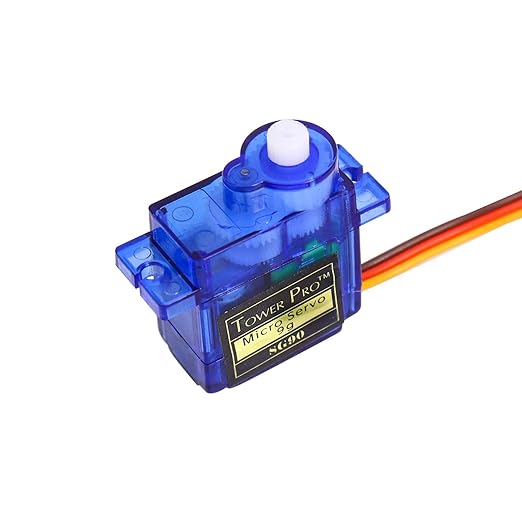

• Micro Servo Motors (SG90, MG90S) – Compact and lightweight for small robots and drones

• Standard Servo Motors (MG996R, MG995) – High torque and durable gears for general-purpose robotics

• High-Torque Digital Servos – Greater precision, programmable angles, and metal gears

• Continuous Rotation Servos – Function like DC motors with PWM speed control

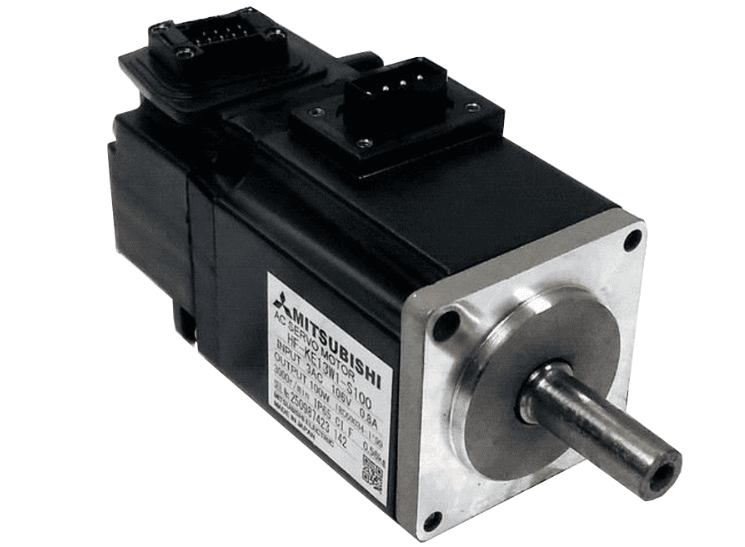

• Industrial Servo Motors – Brushless, closed-loop systems for CNC and automated machinery

Key Features:

• Control angle: 0° to 180° / continuous

• Operating voltage: 4.8V to 7.4V (micro to standard)

• Torque ratings: From 1.8 kg.cm to 20+ kg.cm

• Precision gear systems (nylon or metal)

• PWM signal control (50 Hz standard)

• Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other MCUs

Applications:

• Robotic arms and grippers

• Pan-tilt camera mounts

• Steering in RC cars and boats

• Mechatronics projects

• Humanoid robots and animatronics

• CNC Z-axis or tool changers

Servo motors are easy to program and require only one PWM signal pin, making them a go-to solution for precise motion with minimal hardware.
