MOTORS AND DRIVERSSERVO MOTOR TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
TowerPro SG90 Continuous Rotation 360 Degree Servo Motor
TowerPro SG90 Continuous Rotation 360 Degree Servo Motor

TowerPro SG90 Continuous Rotation 360 Degree Servo Motor

Specifications:

  1. Model: TowerPro SG90 Continuous Rotation

  2. Rotation: Full 360° continuous rotation (unlike 180°)

  3. Operating Voltage:4.8 V – 6 V DC

  4. Torque: Approx. 1.8 kg·cm @ 6 V

  5. Speed: Approx. 0.10 s/60° (rated speed at 4.8 V)

  6. Control Method:PWM (1–2 ms pulse width)

  7. Motor Type:Coreless DC

  8. Gear Type:Plastic (standard quality)

  9. Connector: 3-pin (Signal / VCC / GND)

  10. Cable Length: ~25 cm

  11. Dimensions:22.2 × 11.8 × 31 mm

  12. Weight: Approx. 9 g

  13. Applications: Robotics, wheeled platforms, conveyor systems, autonomous vehicles, educational platforms

Non-returnable
₹130.00 ₹200.00
Product Details

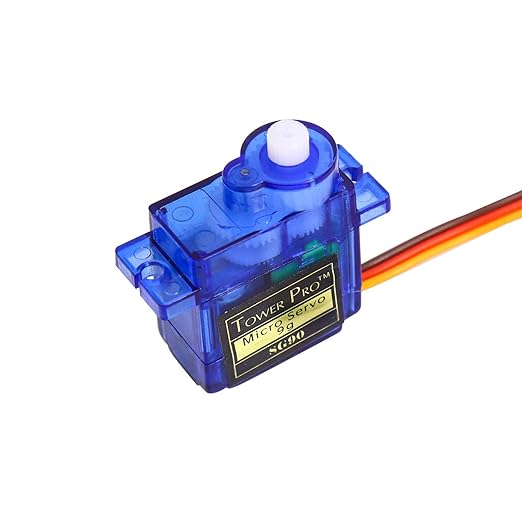

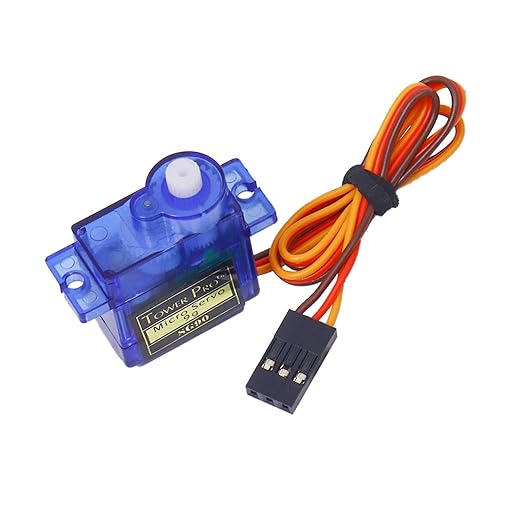

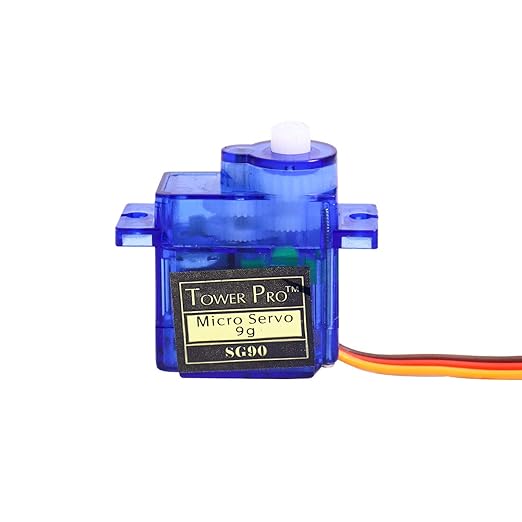

A modified version of the popular SG90, this servo provides 360° continuous rotation, ideal for robot wheels, conveyor belts, pan-tilt platforms, and robotic vehicles. It uses PWM control signals for speed and direction, and—unlike standard servos—turns freely with no end stops. It's compact, lightweight, and perfect for basic robotics and control projects.


Features:
• 360° continuous rotation for full-speed control.
• Compact micro servo form factor (same as SG90).
• Supports speed and direction control via PWM.
• Ideal for lightweight robotic applications.

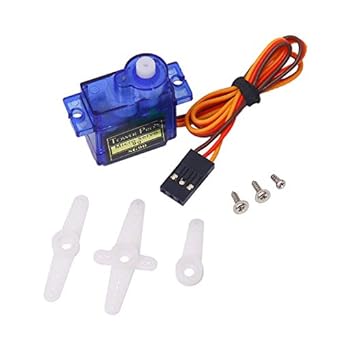

• Includes plastic gears and mounting hardware.
• Compatible with Arduino, Raspberry Pi, and many microcontrollers.
