specification:

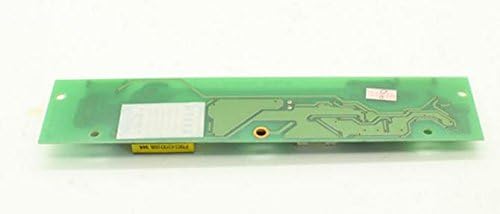

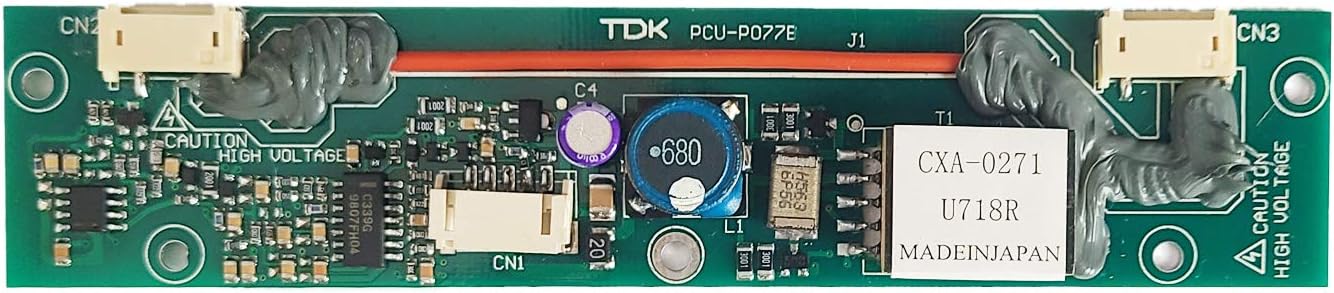

Model: TDK PCU-P077E
Function: LCD CCFL Backlight Inverter
Input Voltage: Typically 12V DC
Output Voltage: Up to ~1,000V AC (open circuit, for CCFL ignition)
Output Current: ~6mA to 8mA per lamp (varies with configuration)
Number of Lamps Supported: 1 or 2 CCFLs
Operating Frequency: Typically 40–80 kHz (inverter switching)
Control Signal: ON/OFF logic input (TTL level)
Dimming Control: Analog or PWM (depending on application circuit)
Operating Temperature: 0°C to +60°C
Non-returnable
₹11,499.00 ₹12,500.00
