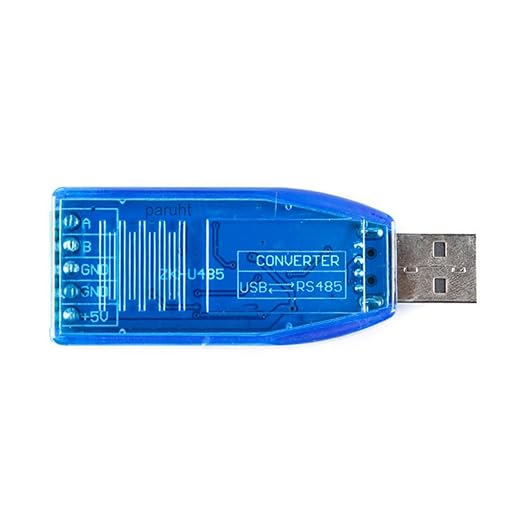

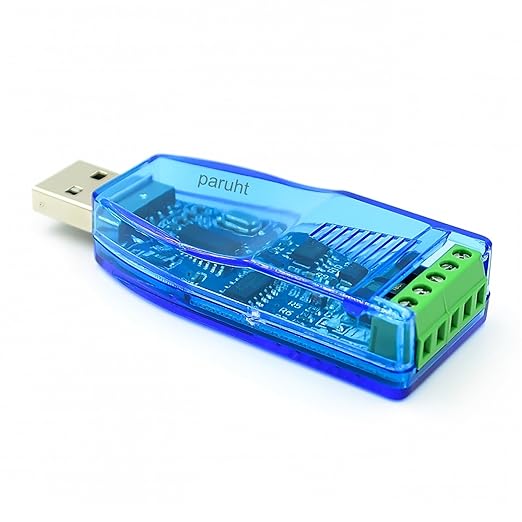

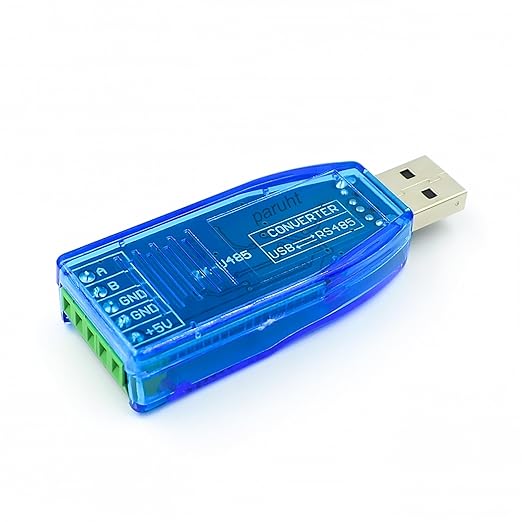

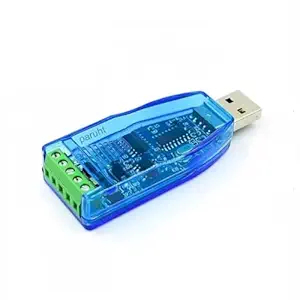

USB to RS485 Converter Adapter CH340/CH341 Supports All Windows Version
Specifications:
Chipset: WCH CH340 (USB-UART) compatible with CH341 driver
USB Connector: Type-A male

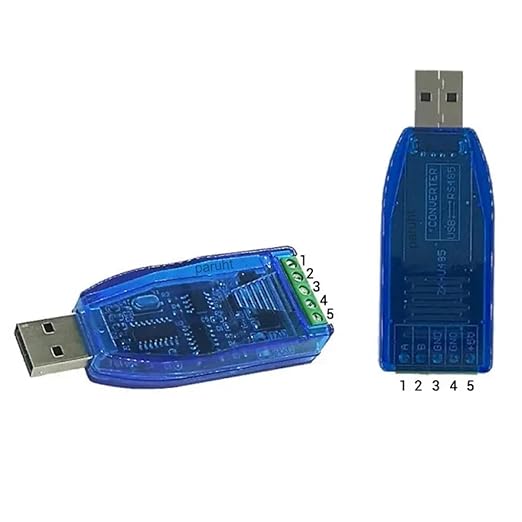

RS485 Interface: 2-wire differential (A, B), plus optional GND and 5 V terminals
Operating Voltage: 5 V DC (USB powered)
Baud Rate Range: 50 bps – 2 Mbps
Max Communication Range: Up to approx. 1.2 km (line-of-sight)
Operating Temperature: –40 °C to +85 °C (industrial-grade)
Physical Size: ~60 × 18 × 14 mm
Supported OS: Windows, Linux, macOS, WinCE
Protection Features: ESD, surge, short-circuit, and A/B signal line protection
Non-returnable
₹149.00 ₹200.00
Share :
Product Details
A compact USB-to-RS485 converter that uses the CH340/CH341 chipset to add a differential RS485 serial port to any Windows PC via USB. Built to industrial standards, it's suitable for connecting to PLCs, Modbus devices, and industrial sensors with reliable full-duplex communication and robust electrical protections.
Features:
Transparent plug-and-play operation on Windows (XP–11), macOS, Linux, WinCE
Built-in surge, ESD, and voltage spike (TVS) protection for harsh environments
Supports wide baud rates up to 2 Mbps, suitable for Modbus RTU and other protocols
Half/full-duplex RS485 communication with A/B differential signal lines
Pocket-sized, lightweight design─easy to carry and install
Provides both USB-powered and optional external 5 V supply via terminal block
