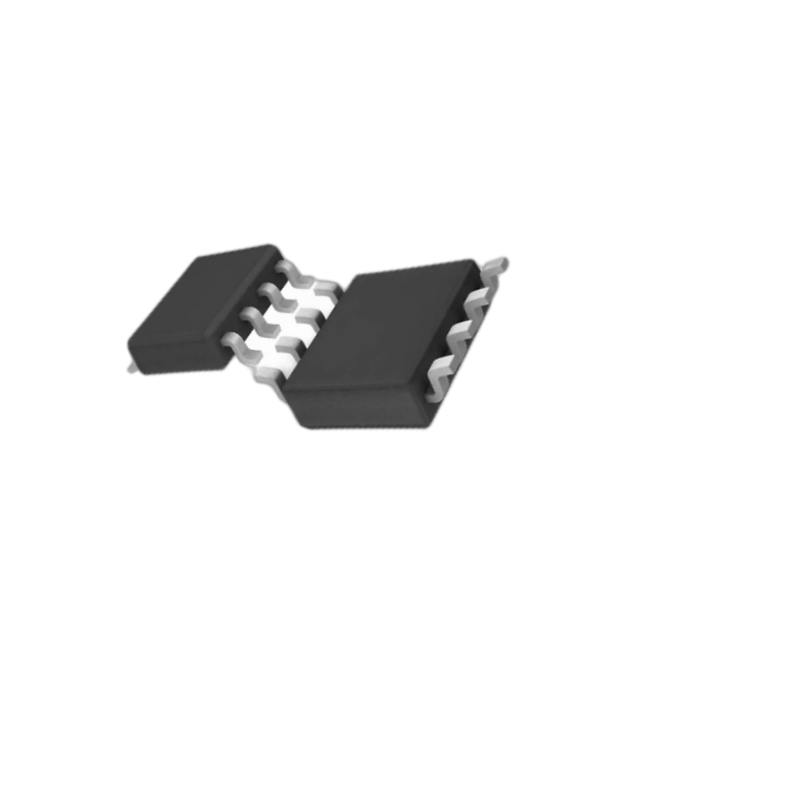

The PIC16F15213-I/SN is an 8-bit Flash-based microcontroller from Microchip's PIC16F family, offering a balance of performance, efficiency, and integrated peripherals in a small SOIC-8 package. Designed for cost-effective embedded applications, this MCU features an enhanced mid-range core with low power consumption, making it suitable for battery-powered systems, simple control applications, and sensor interfaces. It includes essential peripherals such as an ADC, comparators, timers, and EUSART, all operating over a wide voltage range and temperature range, enabling reliable performance in industrial and consumer environments.
• 8-bit enhanced mid-range PIC® microcontroller with 7 KB Flash and 512 bytes SRAM
• Operating voltage from 1.8V to 5.5V for flexible power supply support
• Internal 32 MHz oscillator for clock stability without external components
• Integrated 10-bit ADC with up to 12 channels for analog signal monitoring
• EUSART, SPI, and I²C modules for robust serial communication
• 2 x 8-bit and 1 x 16-bit timers for precise time-based tasks
• Two analog comparators and voltage reference module for signal conditioning
• XLP (eXtreme Low Power) technology for sleep currents as low as 50 nA
• Configurable logic cell (CLC) and PWM for smart peripheral control
• Wide operating temperature range from –40°C to +85°C
• Ideal for small control systems, sensor interfacing, industrial automation, and smart battery-powered devices
