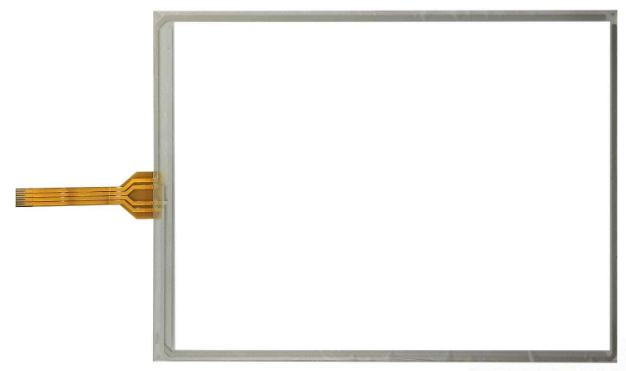

FT-AS00-12.1 Touch Screen

Product Specification – FT-AS00-12.1

1. Model: FT-AS00-12.1

2. Touch Type: 4-Wire Resistive – ensures accurate input detection with finger, glove, or stylus

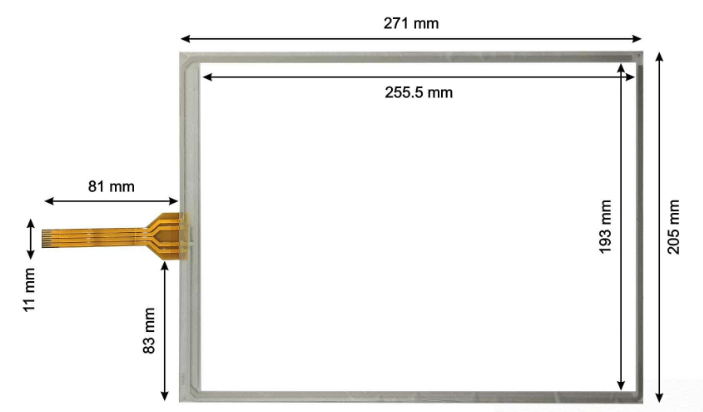

3. Screen Size: 12.1 Inch (Diagonal) – commonly used in industrial and medical display systems

4. Input Method: Finger, Glove, Stylus – supports versatile input for both bare and covered hands

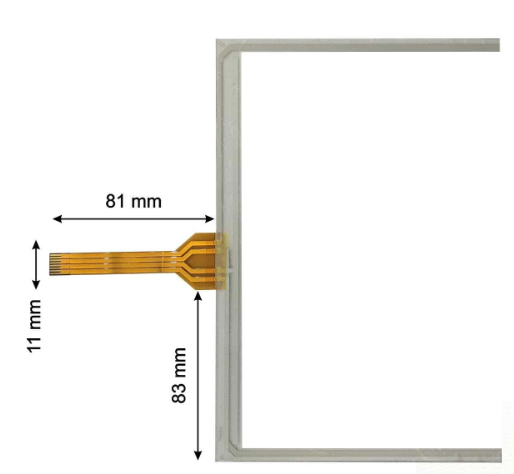

5. Interface: Flat Flexible Cable (FFC) – 4-pin, typically 1.0 mm pitch for standard industrial controllers

6. Transparency: ≥78% – ensures good visibility and display brightness

7. Surface Hardness: 3H – provides resistance to scratches and surface wear

8. Touch Lifespan: Over 1 million touches – built for long-term reliability in demanding environments

9. Operating Temperature: -10°C to +60°C – suitable for indoor and controlled industrial settings

10. Applications:

• Industrial Displays

• Factory Automation Terminals

• Kiosks and Public Information Systems

• Medical Equipment Interfaces
