Interface Output: RS‑485 differential bus, half‑ or full‑duplex
Isolation Voltage: Typically 2.5 kV RMS or higher
Surge Protection: ±600 W clamp; IEC 61000-4-5 compliant
Relay or Opto-Isolation: Multi-layer isolation across signal and power domains
Power Supply: 9–30 V DC typical via rail power or auxiliary terminal
Data Rate: Up to 115.2 kbps (typical); higher with advanced variants
Operating Temperature: –40 °C to +85 °C
Mounting: EN 60715 TH35 DIN‑rail

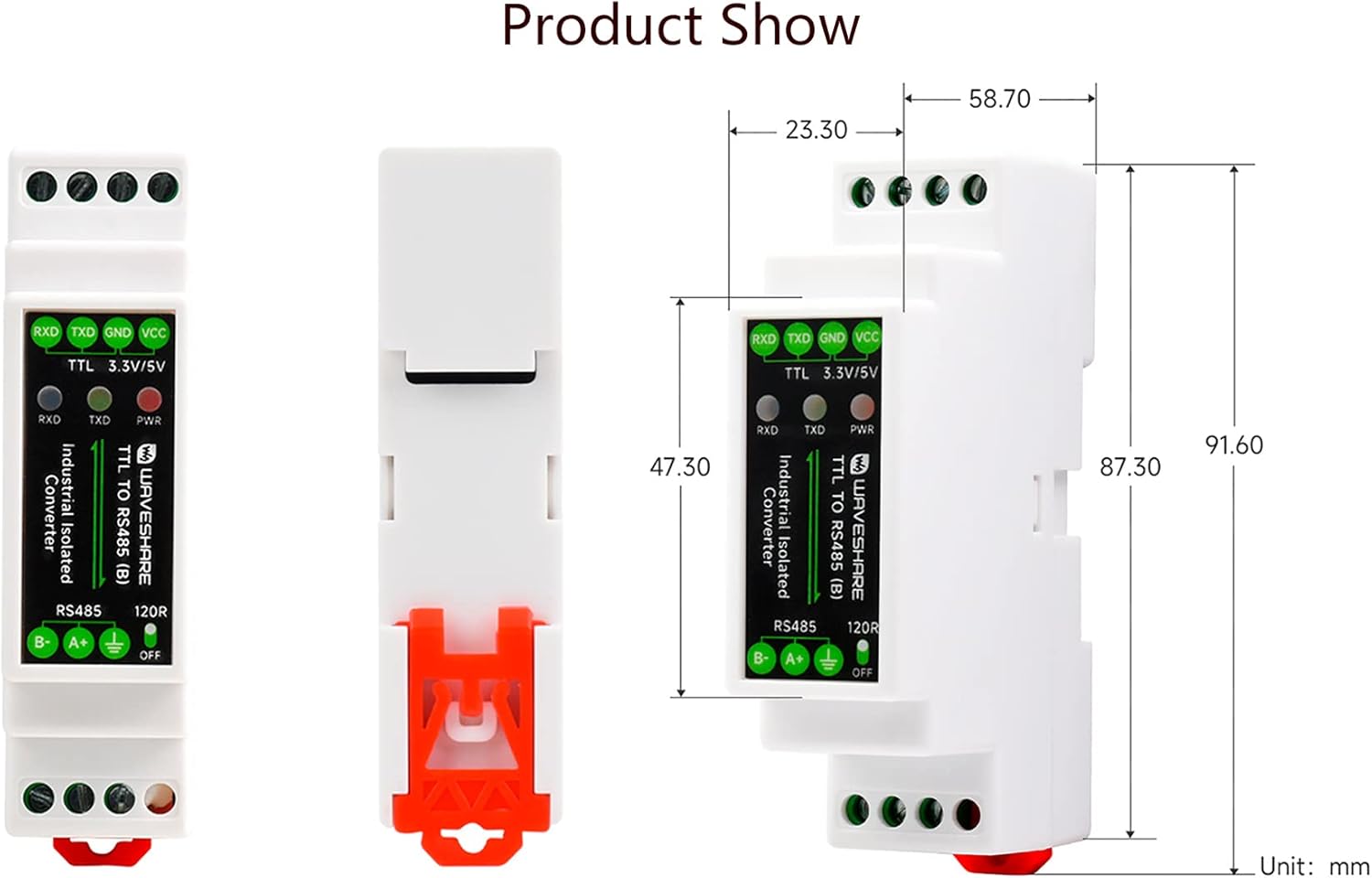

Dimensions: Approx. 110 × 22.5 × 90 mm (varies by brand)
Weight: ~120 g
Non-returnable
₹1,200.00 ₹1,500.00
Share :
Product Details

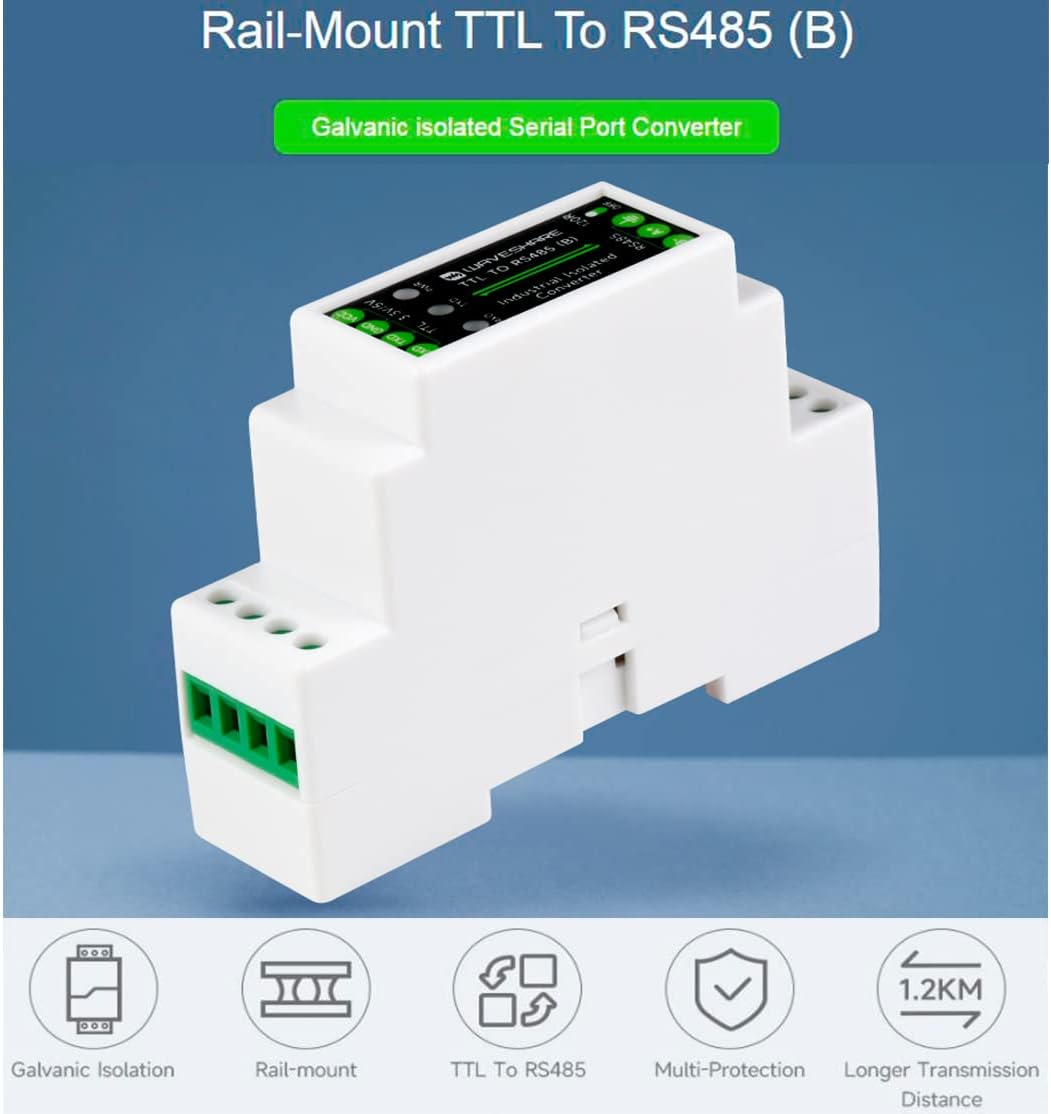

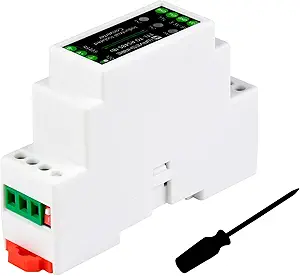

A robust DIN‑rail mount converter that translates TTL-level serial signals to RS‑485 differential communication while providing galvanic isolation. Designed for industrial applications, it includes surge and lightning protection, ensuring safe and reliable data transmission in harsh environments.
Features
Galvanic Isolation between TTL side and RS‑485 bus to prevent ground loops

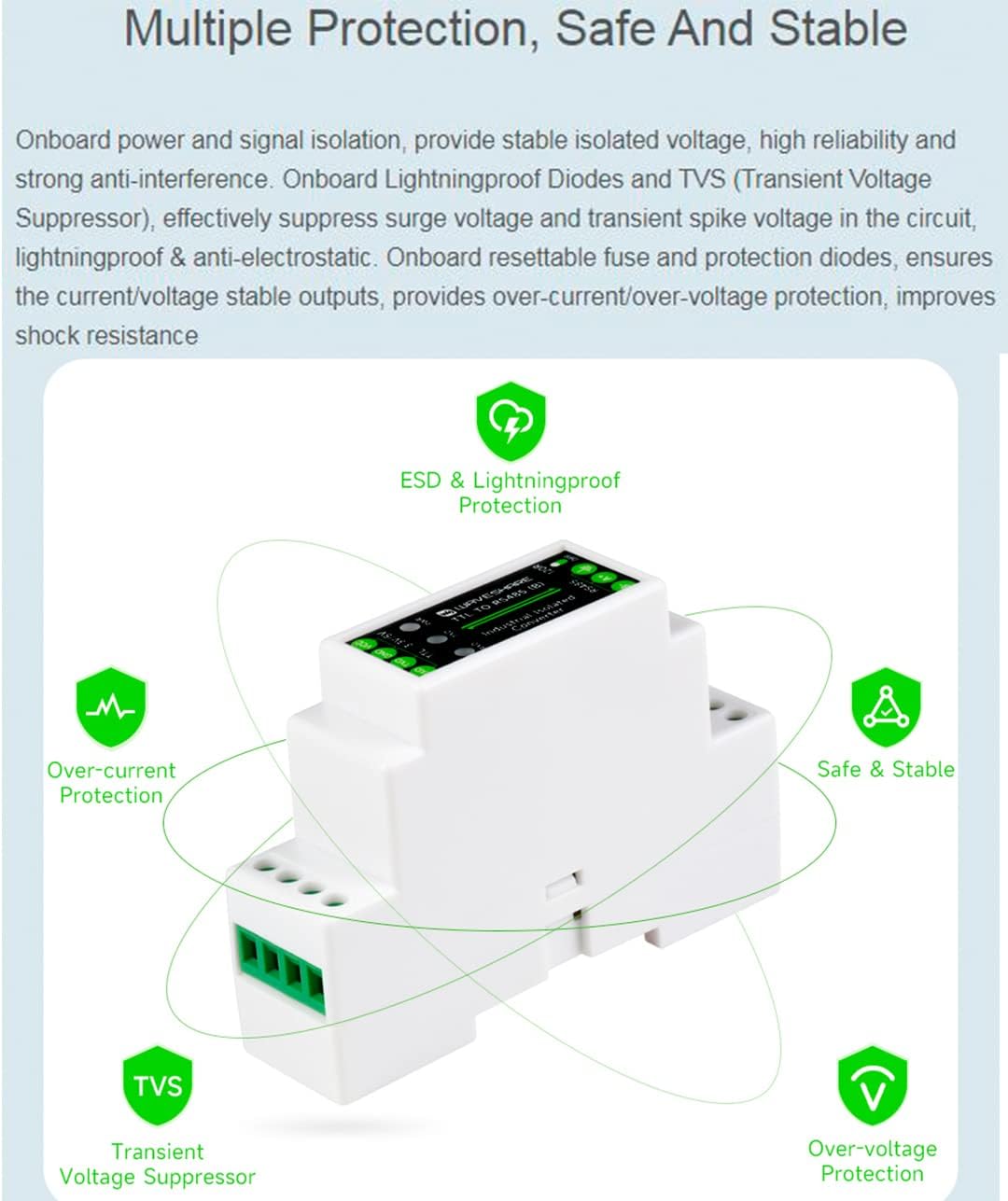

Surge & Lightning Protection capable of withstanding high-voltage transients
Rail-Mountable design fits standard DIN-rail enclosures

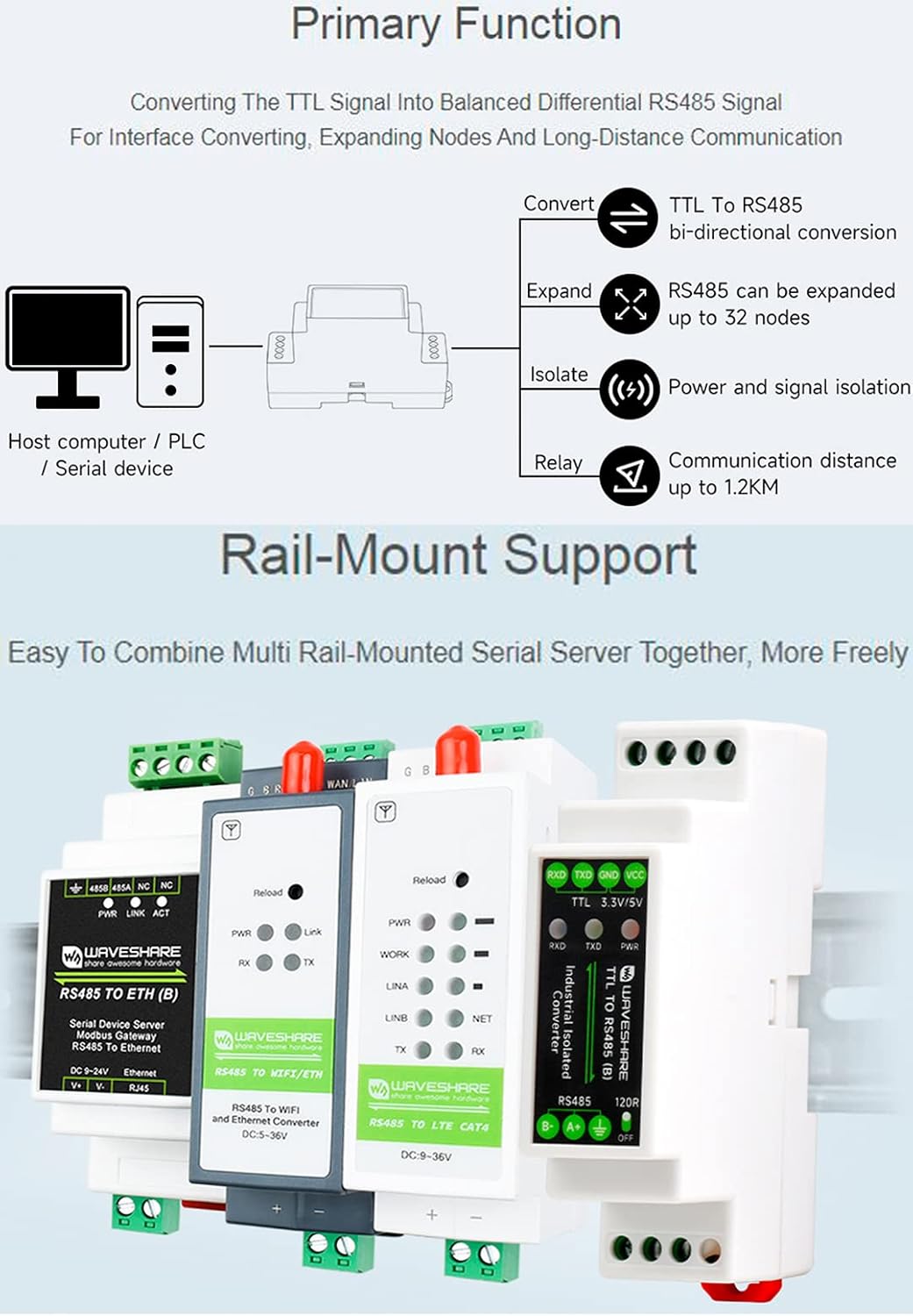

TTL-to-RS485 Conversion enabling industrial communication compatibility
Multi-Isolation Layers including signal, power, and chassis separation
Automatic Data Direction Control (no manual driver/receiver switching)
Wide Operating Temperature Range suitable for industrial settings
LED Status Indicators for power and data transmission status
