Specification:
Model: NTS AST-150C
Touch Technology: 4-Wire Resistive – suitable for environments requiring finger, gloved, or stylus input
Screen Size: 15.0 inches – large format for industrial or automation interfaces

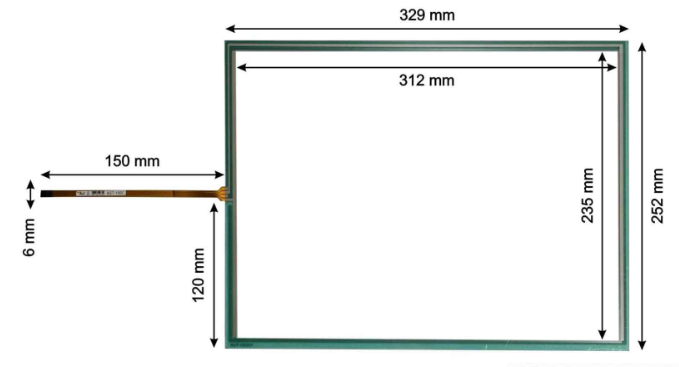

Active Area: Approximately 305 mm × 229 mm – usable touch zone
Outer Dimensions: Approximately 326 mm × 252 mm – total panel footprint
Input Methods Supported: Stylus, finger, and gloved hand – versatile and rugged input capability
Connector Type: 4-pin FPC with ZIF interface – widely compatible, easy to integrate

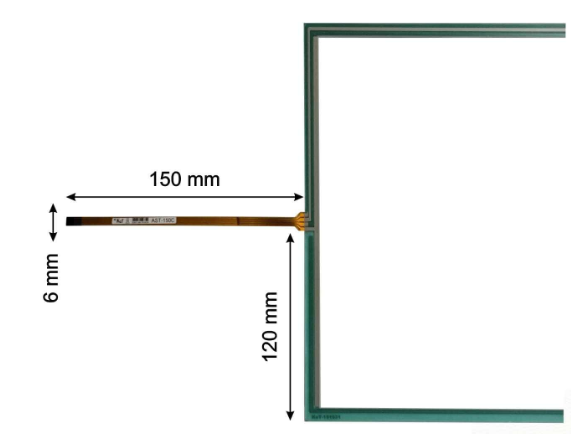

Cable Length: Approximately 85 mm – flexible flat cable (FFC) for internal connectivity
Light Transmission: ~80% – ensures decent display brightness through the touch layer
Response Time: <10 ms – supports real-time interaction
Linearity: ≤1.5% – offers consistent, precise touch tracking
Touch Activation Force: 50–120 grams – suitable for both light and deliberate presses
