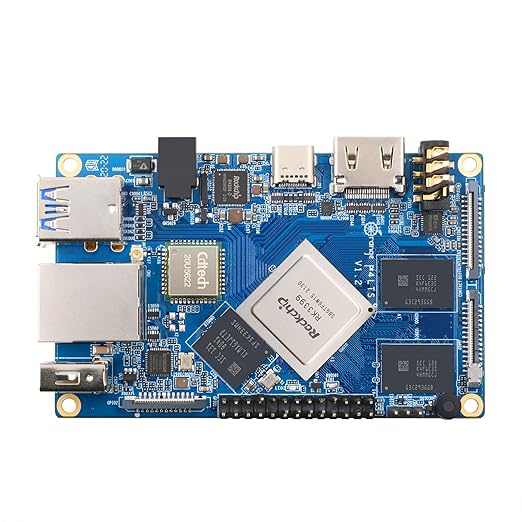

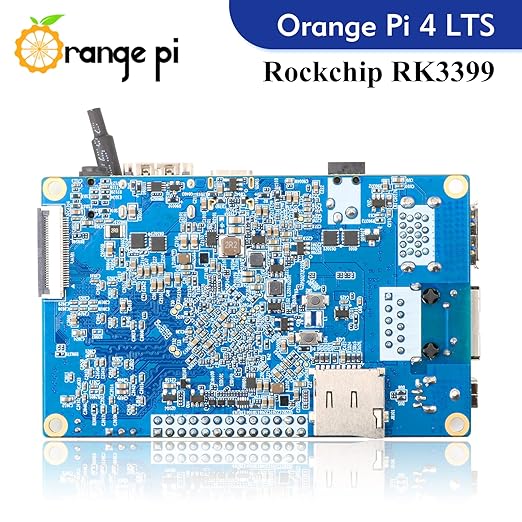

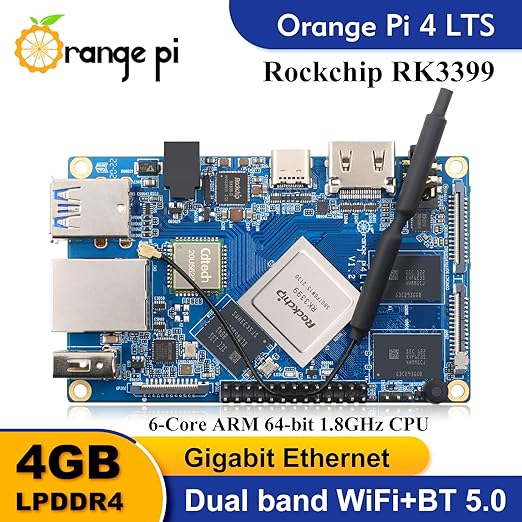

DEVELOPMENT BOARDORANGE PIORANGE PI BOARD Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC
Orange Pi 4 LTS 4GB RAM 16GB EMMC

Orange Pi 4 LTS 4GB RAM 16GB EMMC

Specifications:

  1. Processor: Rockchip RK3399

    • 2× Cortex-A72 @ 1.8GHz

    • 4× Cortex-A53 @ 1.4GHz

  2. GPU: Mali-T860 MP4

  3. NPU: N/A (no dedicated AI chip in RK3399)

  4. RAM: 4GB LPDDR4

  5. Storage: 16GB eMMC onboard, microSD slot (up to 256GB)

  6. Wireless Connectivity:

    • Wi-Fi 802.11 a/b/g/n/ac

    • Bluetooth 5.0

  7. Ethernet: 1× Gigabit Ethernet port

  8. USB Ports:

    • 1× USB 3.0 Type-C OTG

    • 2× USB 2.0 Host

    • 1× USB 3.0 Host

  9. Video Output: HDMI 2.0 (up to 4K @ 60fps), MIPI-DSI

  10. Camera Interface: 2-lane MIPI-CSI

  11. Audio: 3.5mm audio jack, onboard microphone

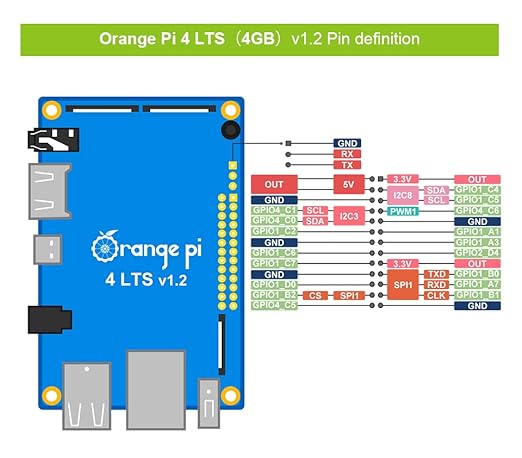

  12. Expansion: 40-pin GPIO header (Raspberry Pi compatible layout)

  13. Power Input: 5V/3A via USB-C

  14. Operating System Support: Android 8.1, Ubuntu, Debian

  15. Dimensions: ~91mm × 56mm

  16. Weight: Approx. 50–70 grams

  17. Operating Temperature: 0°C to +60°C

  18. Applications: AI development, edge computing, media playback, industrial systems

  19. Compliance: RoHS, CE, FCC

Non-returnable
₹12,000.00 ₹15,000.00
Product Details

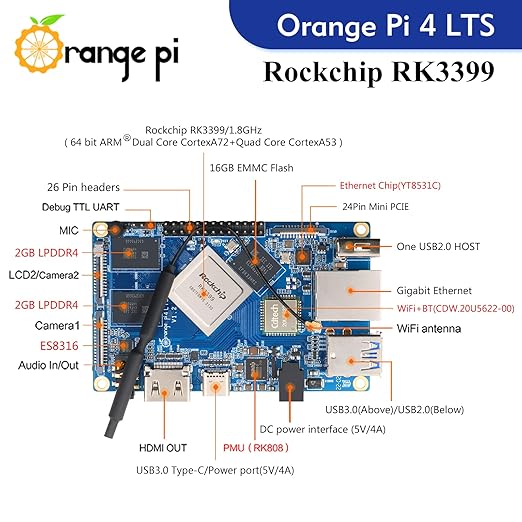

The Orange Pi 4 LTS is a powerful and cost-effective single-board computer (SBC) based on the Rockchip RK3399 SoC, equipped with 4GB LPDDR4 RAM and 16GB onboard eMMC storage. Designed for both developers and industrial users, it delivers exceptional performance for multimedia, AI, server, and IoT applications. With support for Android, Debian, Ubuntu, and other Linux distributions, it offers versatility and robust computing capabilities. Its integrated GPU and NPU enable AI inference and high-resolution graphics processing, while abundant I/O options including USB 3.0, PCIe, Gigabit Ethernet, and GPIO headers make it ideal for embedded system development.


• Based on Rockchip RK3399 hexa-core processor (Dual Cortex-A72 + Quad Cortex-A53)
• 4GB high-speed LPDDR4 RAM for multitasking and heavy applications
• Built-in 16GB eMMC storage for fast boot and system responsiveness
• Mali-T860 MP4 GPU for advanced 3D graphics and video acceleration
• Supports Android 8.1, Debian, Ubuntu, and other Linux systems
• Dual display support via HDMI 2.0 and MIPI-DSI interfaces
• Rich connectivity: USB 3.0, USB 2.0, PCIe, CSI, MIPI DSI, audio jack, and TF card slot
• 40-pin GPIO header for hardware interfacing and prototyping
• Gigabit Ethernet, Wi-Fi 802.11ac, and Bluetooth 5.0 onboard
• Ideal for robotics, edge AI, media centers, and industrial control
