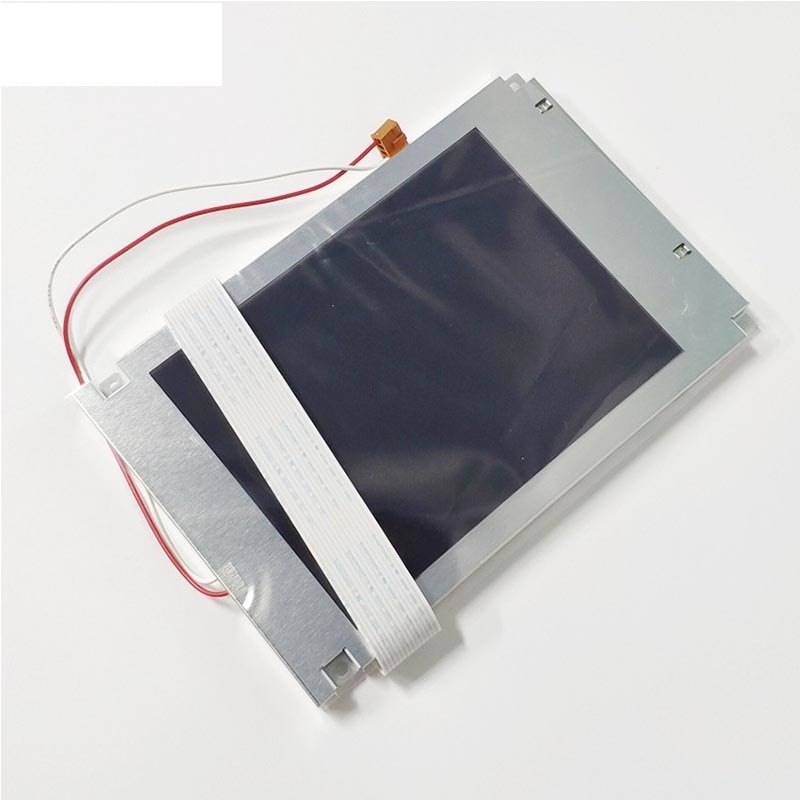

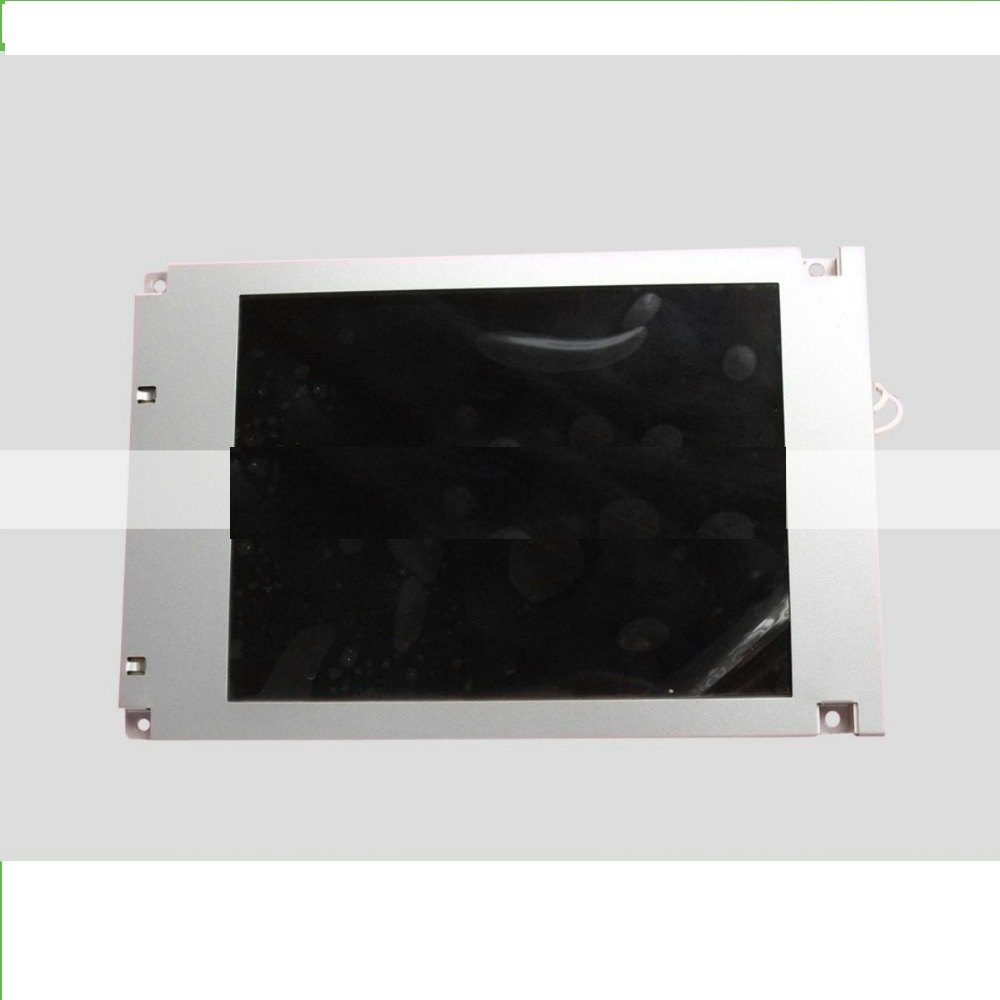

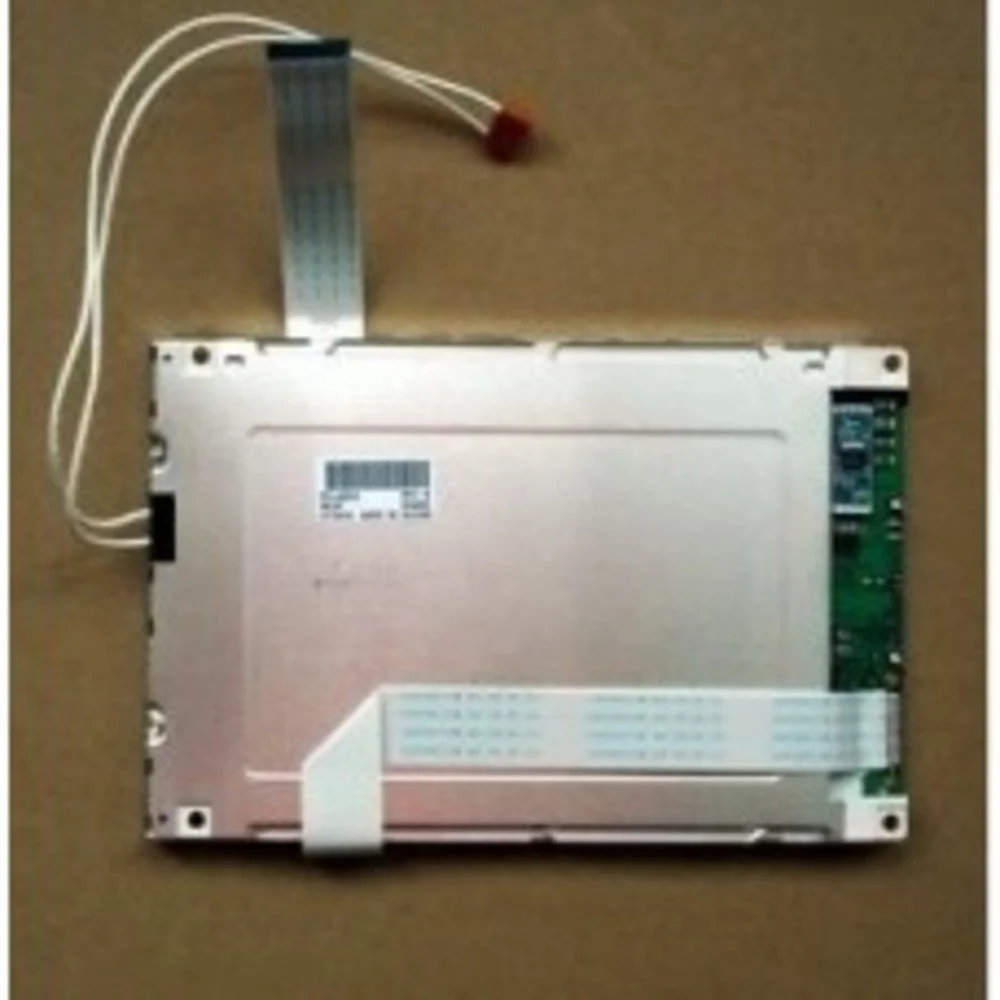

Hitachi SX14Q006 LCD

The Hitachi SX14Q006 is a 5.7-inch QVGA (320×240 pixels) monochrome STN (Super Twisted Nematic) LCD module engineered for industrial and legacy embedded systems. Known for its long product lifecycle, high reliability, and low power consumption, this display is commonly used in industrial equipment, factory automation terminals, and instrumentation panels.

Mechanical Specifications:

• Module Dimensions: ~144 mm (W) × 104 mm (H) × 12 mm (D)

• Active Area: 115.18 mm (W) × 86.38 mm (H)

• Pixel Pitch: ~0.36 mm (W) × 0.36 mm (H)

• Weight: Approx. 200 grams

Electrical & Environmental Characteristics:

• Supply Voltage: Typically 5V DC

• Backlight Voltage: EL inverter required (for EL backlight versions)

• Operating Temperature: 0 °C to +50 °C

• Storage Temperature: –20 °C to +60 °C

• RoHS Compliance: Legacy part; may not be RoHS compliant without updates

Applications:

• Legacy industrial control systems

• Medical diagnostic devices

• CNC machine interfaces

• Factory automation panels

• Measurement and test instruments
