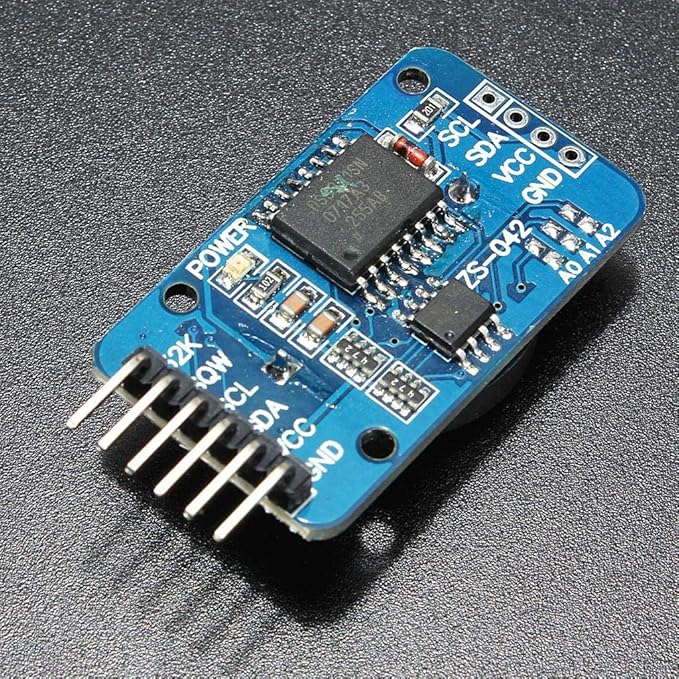

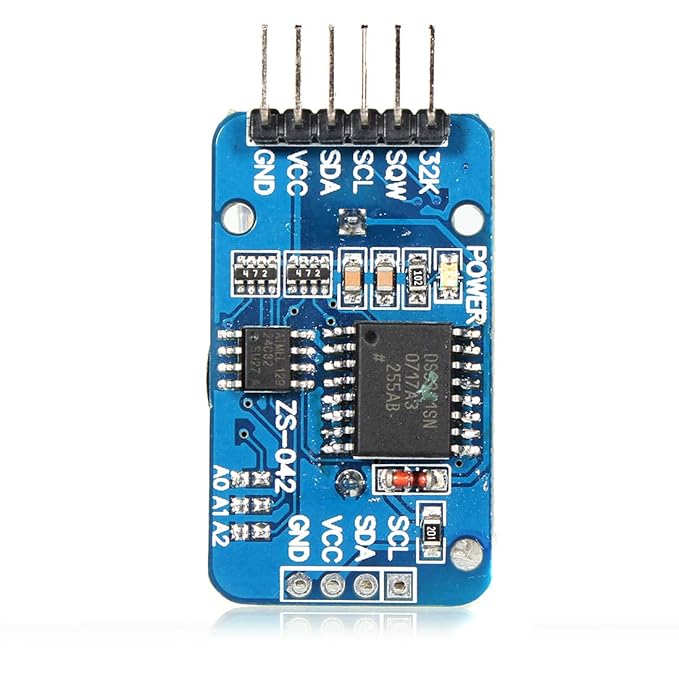

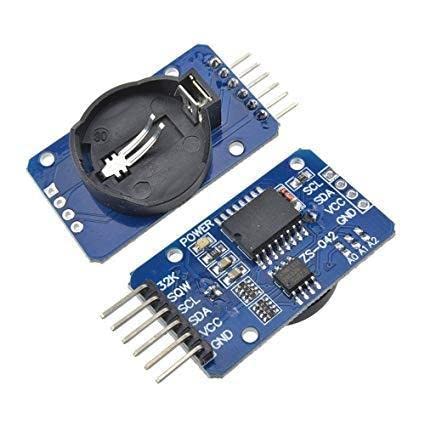

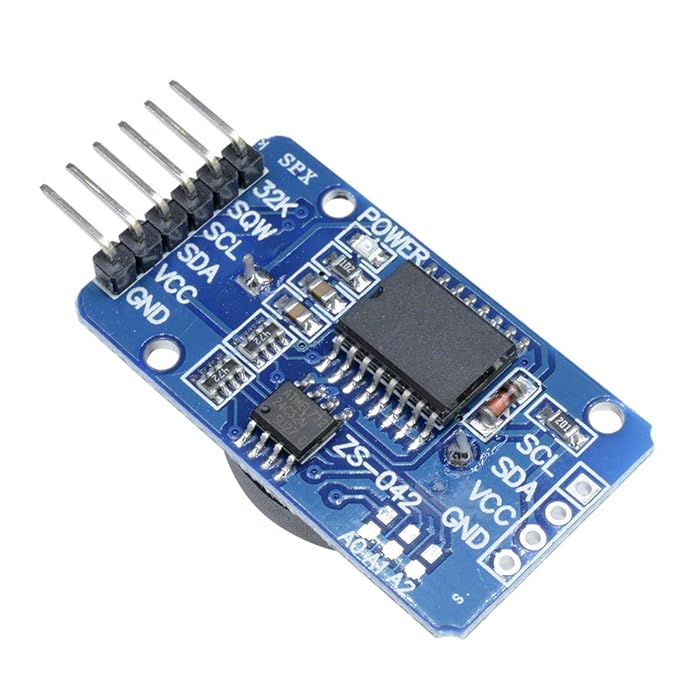

DS3231 RTC Module Precise Real Time Clock I2C AT24C32

The DS3231 RTC Module is a high-accuracy real-time clock (RTC) designed for precise timekeeping in embedded systems. Powered by the DS3231 chip, it features integrated temperature-compensated crystal oscillator (TCXO) and crystal, enabling accuracy of ±2 ppm (approx. ±1 minute per year).

This module includes an I²C interface, making it easy to connect with microcontrollers like Arduino, Raspberry Pi, ESP32, and others. It comes with an onboard AT24C32 EEPROM (32Kb = 4KB), ideal for storing additional user data such as configuration settings or log entries.

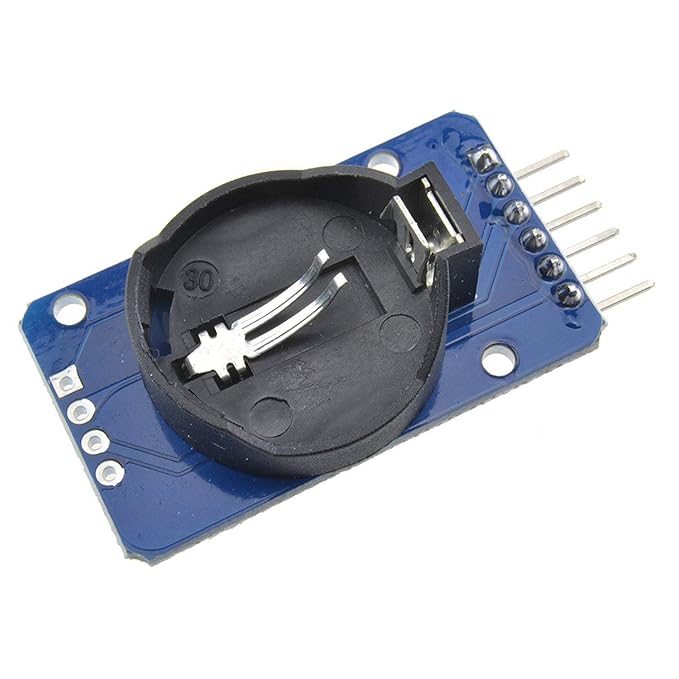

With a CR2032 battery holder, the DS3231 maintains accurate timekeeping even during power loss, making it a reliable choice for clocks, data loggers, alarms, and automation systems.

Features: High-precision real-time clock with integrated temperature sensor Battery backup for timekeeping when power is off Built-in EEPROM (AT24C32) for data storage I2C communication interface Specifications: Operating Voltage: 3.3V or 5V Accuracy: ±2ppm from 0°C to +40°C (~±1 minute/year) Battery: CR2032 coin cell (user replaceable) Communication: I2C, address 0x68
