Nano Base Board (B) for Raspberry Pi Compute Module 4, Same Size as the CM4

Specifications:

Compatible with: Raspberry Pi Compute Module 4 (All variants)
Dimensions: Same as CM4 (approx. 55mm x 40mm)
Input Voltage: 5V via USB-C
Ports: 1× HDMI, 1× USB 2.0, 1× CSI, 1× DSI
GPIO: 40-pin standard Raspberry Pi layout
MicroSD: Yes (for Lite versions of CM4)
Weight: Approx. 25–30g

Non-returnable

₹2,300.00 ₹2,500.00

Product Details

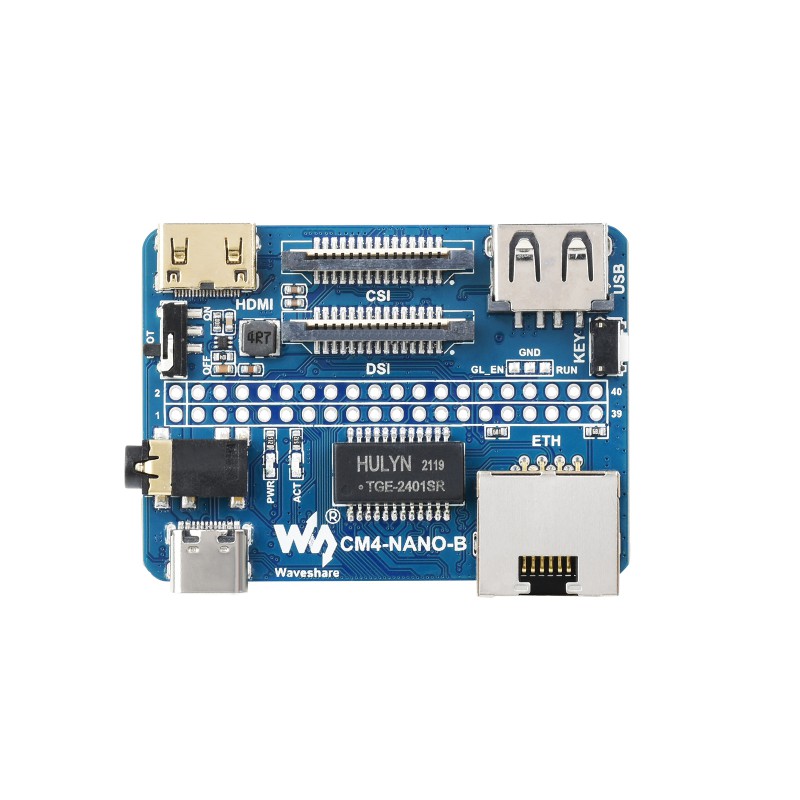

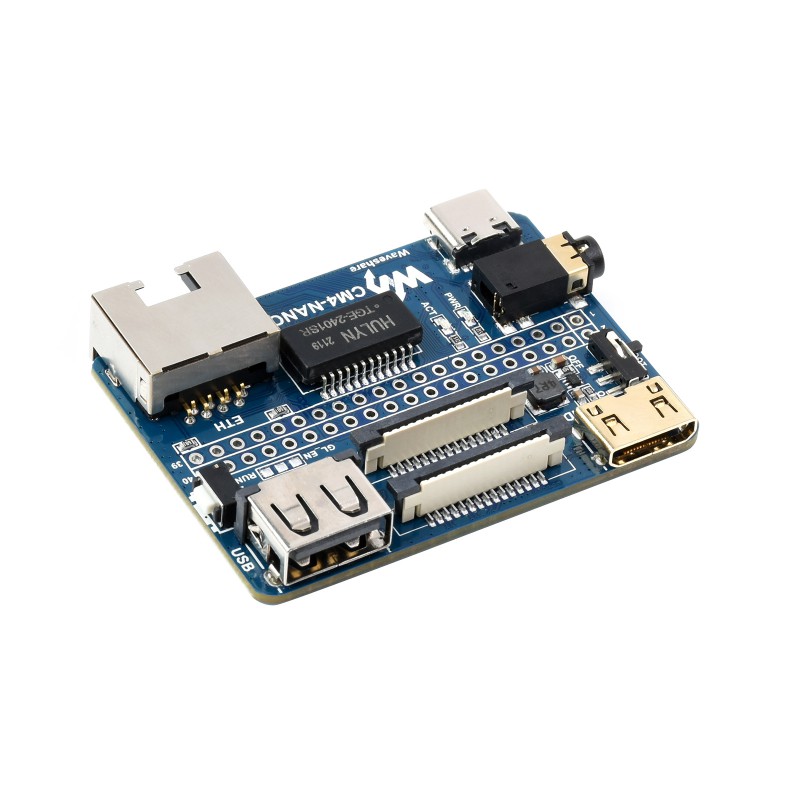

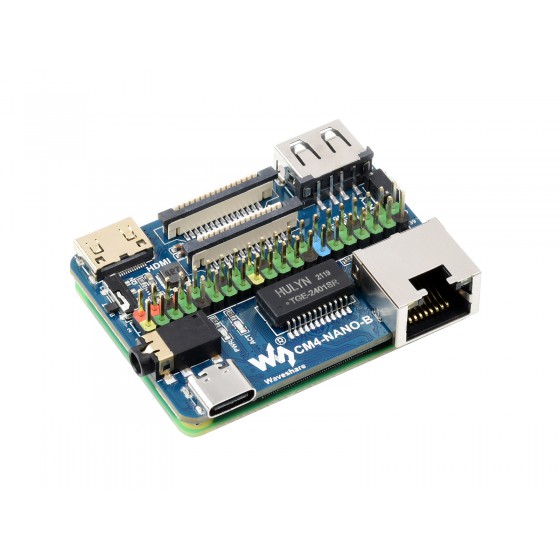

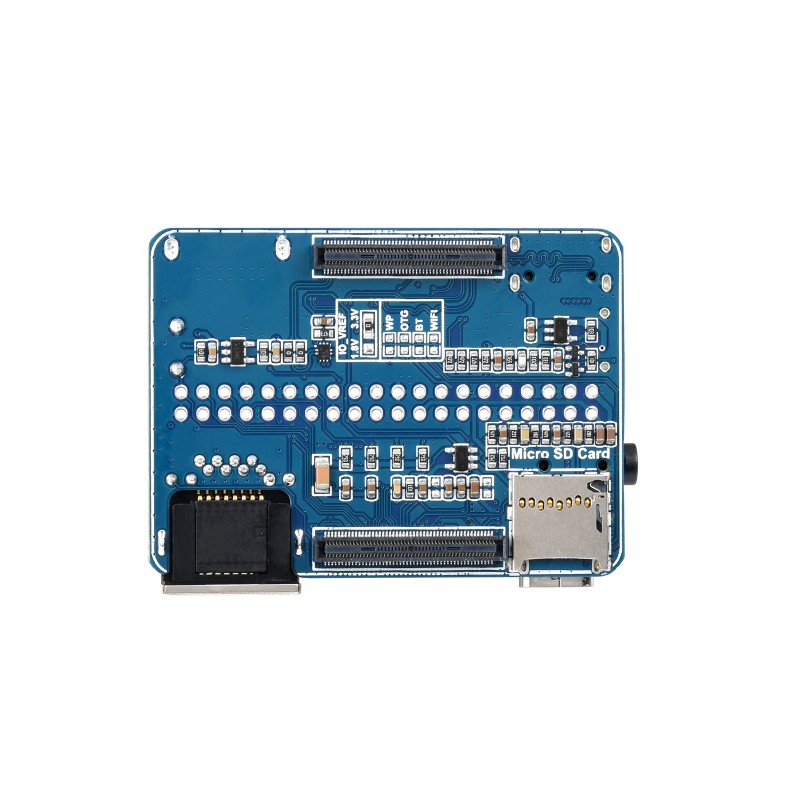

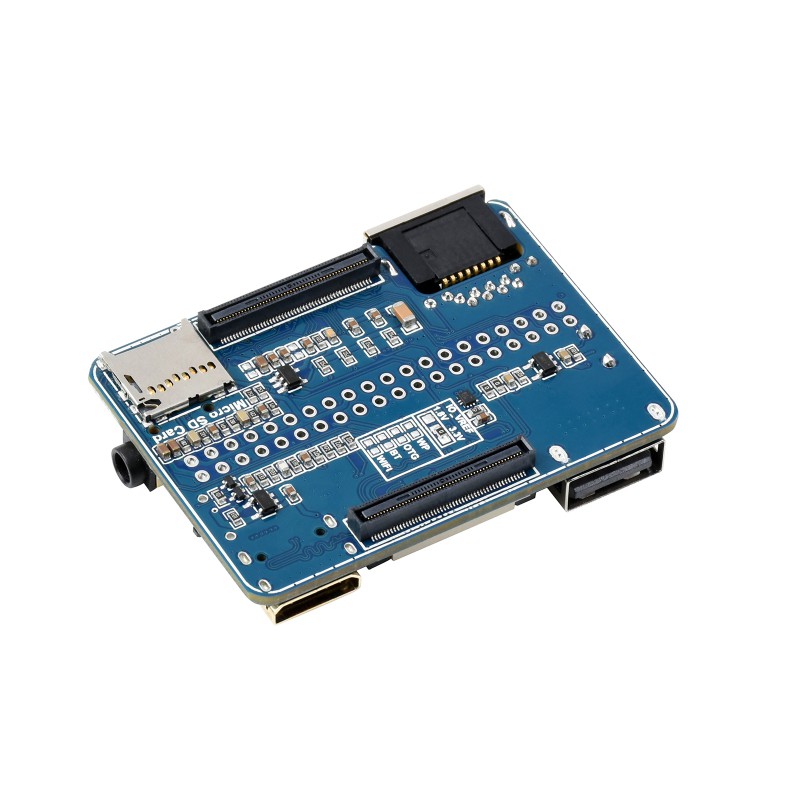

The Nano Base Board (B) is a compact and efficient baseboard designed specifically for the Raspberry Pi Compute Module 4 (CM4). It mirrors the size of the CM4 itself, making it ideal for space-constrained applications and embedded systems. It offers essential connectivity and interfaces while maintaining a minimal footprint.

Features:

Ultra-compact design, same size as Raspberry Pi CM4
Designed for embedded and space-limited projects
Onboard HDMI, USB 2.0, CSI/DSI interfaces
MicroSD card slot for CM4 Lite versions
40-pin GPIO header for expansion
Power via USB Type-C
