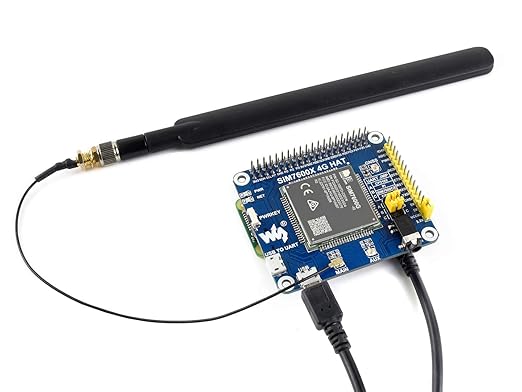

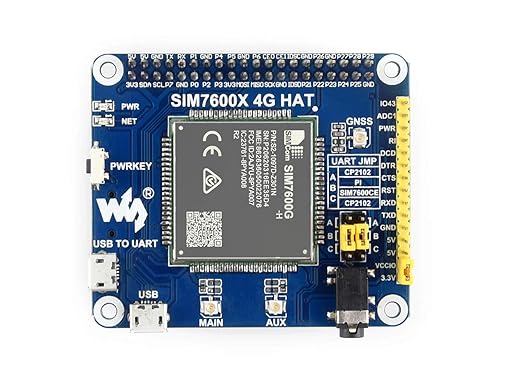

SIM7600G-H 4G HAT For Raspberry Pi, LTE Cat-4 4G / 3G / 2G Support, GNSS Positioning, Global Band

The SIM7600G-H 4G HAT is a high-performance LTE Cat-4 communication module designed for the Raspberry Pi, based on the SIM7600G-H module. It supports global 4G/3G/2G networks and comes with built-in GNSS positioning (GPS, GLONASS, BeiDou, Galileo, QZSS). This HAT enables your Raspberry Pi to connect to mobile networks for data, SMS, voice, and location services, making it ideal for IoT, telemetry, GPS tracking, and remote data logging applications. Its onboard UART and USB interfaces allow for easy integration and control.

Features

• LTE Cat-4 module with worldwide band support

• Backward compatibility with 3G (WCDMA) and 2G (GSM/GPRS)

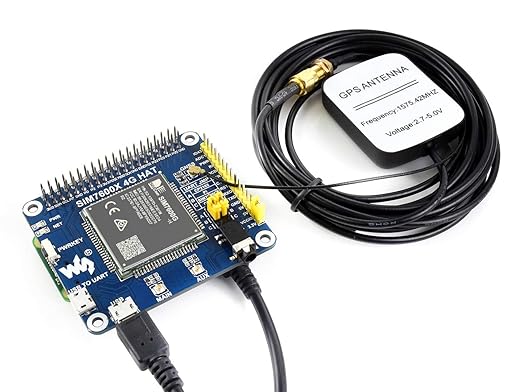

• GNSS support: GPS, GLONASS, BeiDou, Galileo, QZSS

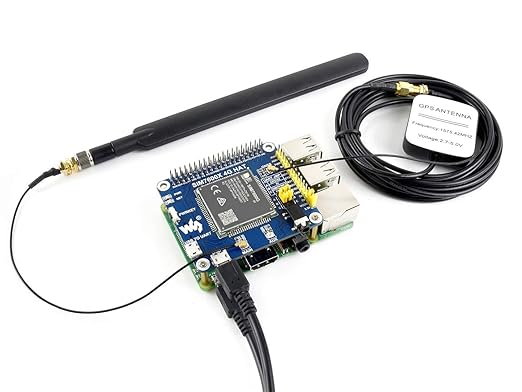

• Compatible with Raspberry Pi 4/3/Zero via GPIO or USB

• Supports internet access, SMS, voice call, and GNSS positioning

• USB interface for high-speed communication and debugging

• AT command control support

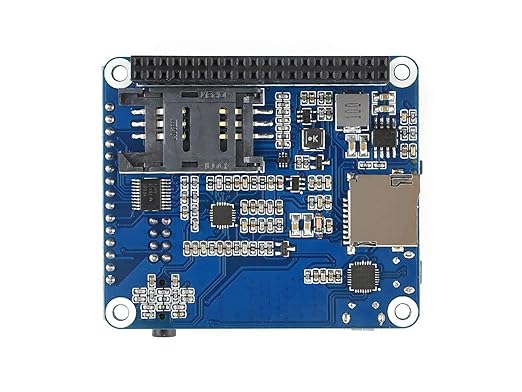

• Onboard SIM card slot and antenna interfaces

• LED indicators for power, network status, and activity

• Optional microphone and speaker support for voice applications
