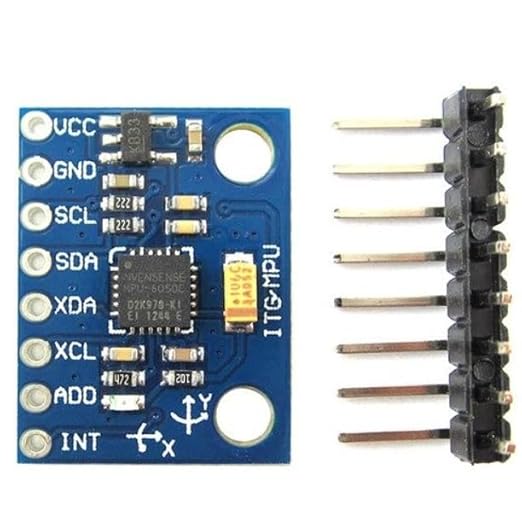

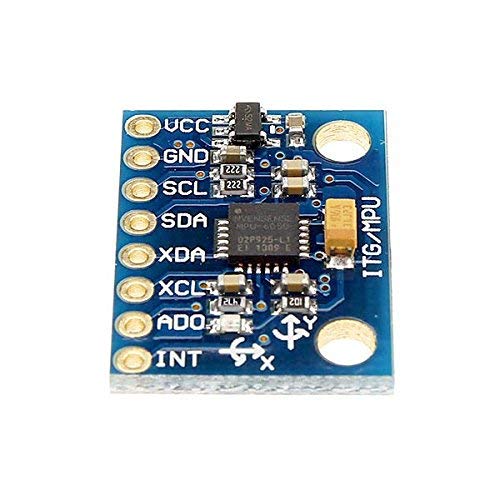

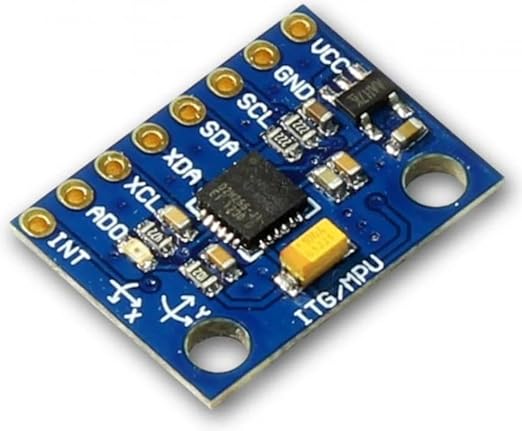

MPU-6050 3-Axis Accelerometer and Gyro Sensor

The MPU-6050 is a 6-DOF (Degrees of Freedom) motion tracking device that combines a 3-axis accelerometer and a 3-axis gyroscope in a single chip, ideal for motion sensing and gesture recognition. With its integrated Digital Motion Processor (DMP), it offloads complex motion computations from the host MCU, enabling efficient orientation, tilt, and motion tracking. Communicating via I²C, it’s widely used in robotics, drones, gaming devices, and wearable applications where compact, accurate inertial sensing is needed.

• Combines 3-axis accelerometer and 3-axis gyroscope
• Digital Motion Processor (DMP) for sensor fusion and low-latency motion processing
• Communicates via I²C (default address: 0x68 or 0x69)
• Configurable full-scale ranges for both accel and gyro
• Integrated temperature sensor
• Low power consumption suitable for battery-powered devices
• Internal FIFO buffer for efficient data logging
• Ideal for IMU (Inertial Measurement Unit) applications in robotics, drones, and motion control systems
