Specifications
Processor: Broadcom BCM2711 quad-core Cortex-A72 @1.8 GHz
Graphics: VideoCore VI GPU with 4K and OpenGL ES 3.0 support
Memory: 4 GB LPDDR4-3200 RAM
Storage: microSD card slot (16 GB included)
Wireless: Wi‑Fi 802.11 b/g/n/ac, Bluetooth 5.0 BLE
Networking: Gigabit Ethernet

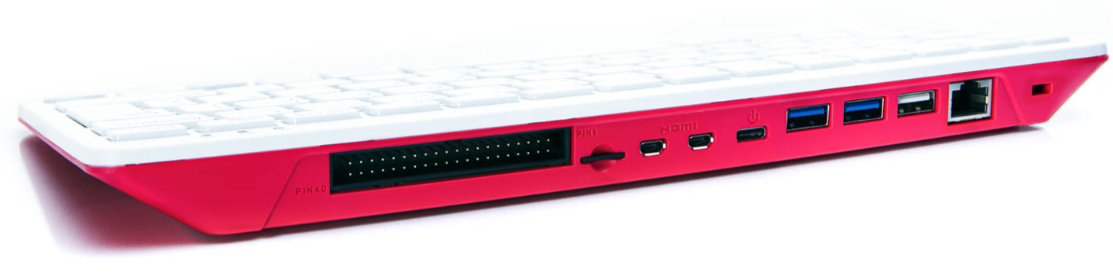

Video Outputs: 2 × micro-HDMI (supports dual 4Kp60 displays)

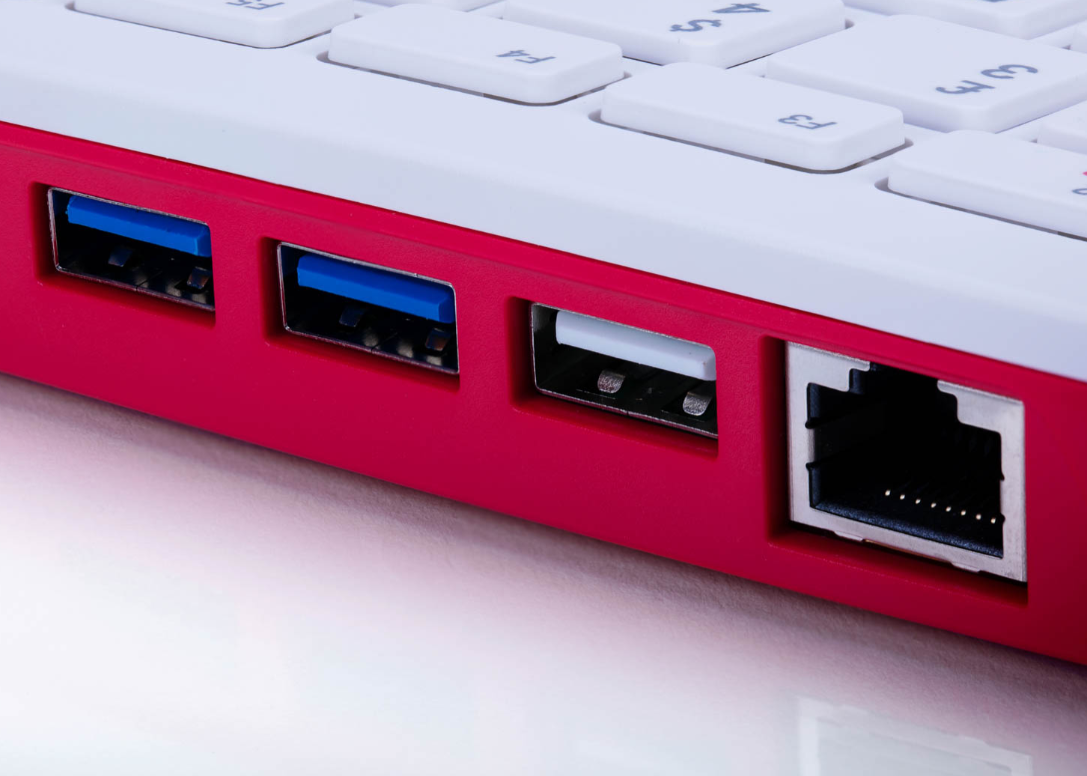

USB Ports: 2 × USB 3.0, 1 × USB 2.0
Input Power: USB‑C, 5.0 V @ 3A
GPIO Header: 40-pin (horizontal)
Dimensions: 286 mm × 122 mm × 23 mm
Weight: ~385 g
Operating Temperature: 0 °C to +50 °C
