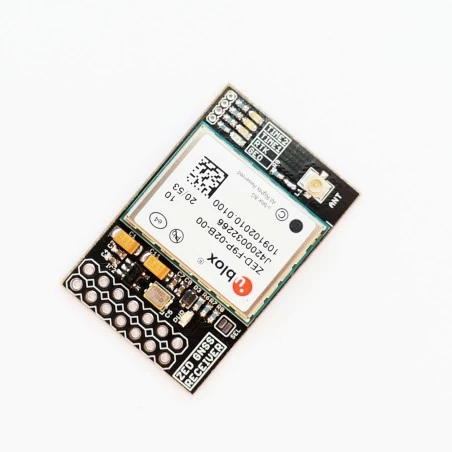

ZED-F9P-01B-01 Drone parts Development Board From Original module For UAV develop board gps modules

The ZED-F9P-01B-01 Development Board is a high-precision, multi-band GNSS receiver board designed around the u-blox ZED-F9P module, specifically tailored for UAVs, drones, robotics, and precision navigation systems. It supports RTK (Real-Time Kinematic) positioning, achieving centimeter-level accuracy using multi-constellation GNSS (GPS, GLONASS, Galileo, BeiDou) with concurrent reception.

This development board serves as a powerful platform for GNSS-based UAV and IoT development, with flexible I/O and communication interfaces such as UART, USB, and I2C, making it suitable for integration with flight controllers, microcontrollers (like STM32/ESP32), and autopilot systems like Pixhawk.

🔹 Key Features:
• Based on u-blox ZED-F9P multi-band GNSS module
• Supports RTK (Real-Time Kinematic) with baseline accuracy of ±1 cm + 1 ppm
• Simultaneous reception of GPS, Galileo, GLONASS, and BeiDou
• Multi-band support: L1/L2/E5b/B2I for better satellite coverage and reliability
• Integrated onboard antenna interface and UART/I2C/USB ports
• High update rate: up to 25 Hz position update
• Built-in 3.3V LDO regulator for low-noise operation
