Specifications:

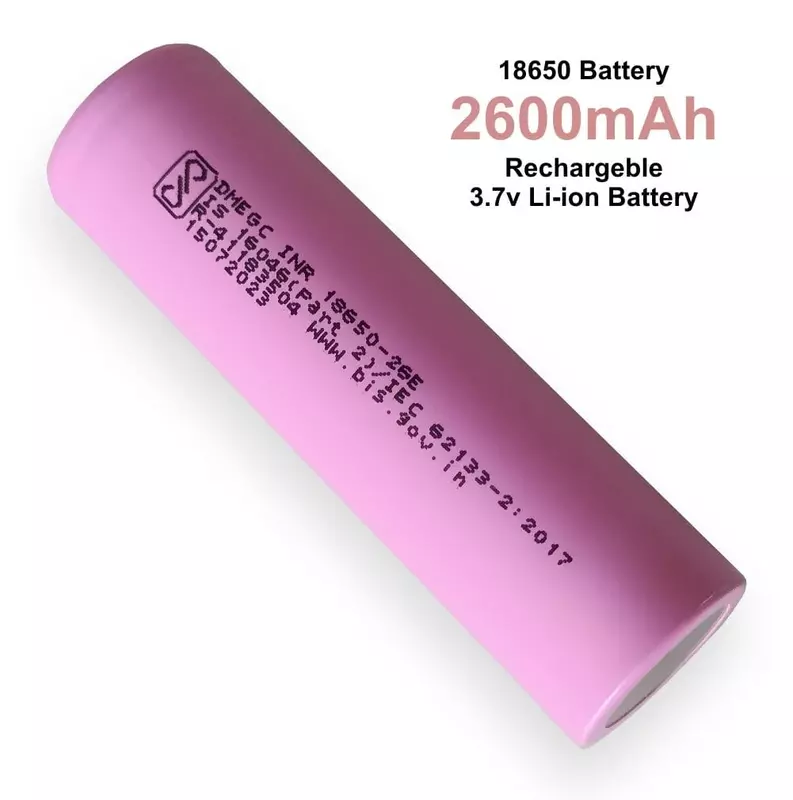

Model: DMEGC 18650 – 2-Pin
Battery Type: Lithium-Ion Rechargeable Cell
Nominal Capacity: 2600mAh
Nominal Voltage: 3.7V
Full Charge Voltage: 4.2V
Discharge Cut-off Voltage: 2.75V
Connector Type: 2-pin JST (or similar)
Standard Charging Current: 0.5C (~1300mA)
Max Discharge Current: ~5A (continuous)
Cycle Life: 500–1000 cycles
Dimensions (without wires): 18.4mm × 65.0mm
Wire Length: Typically ~5–10 cm
Weight: ~47 grams
Operating Temperature:
Charge: 0°C to +45°C
Discharge: -20°C to +60°C
