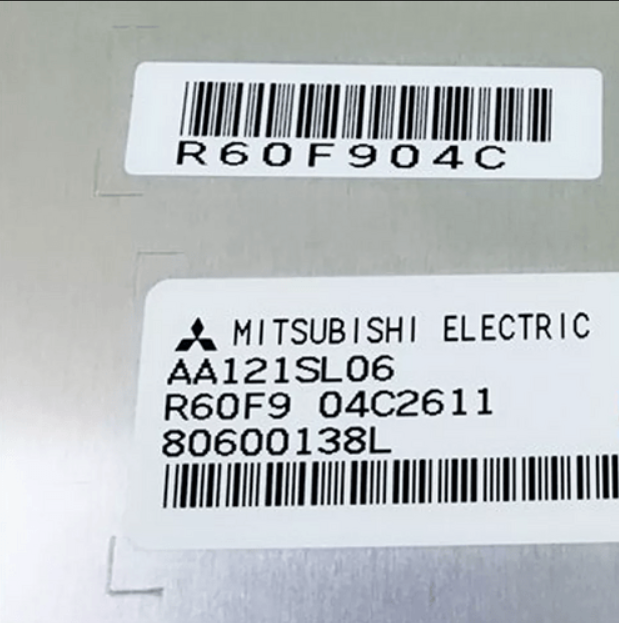

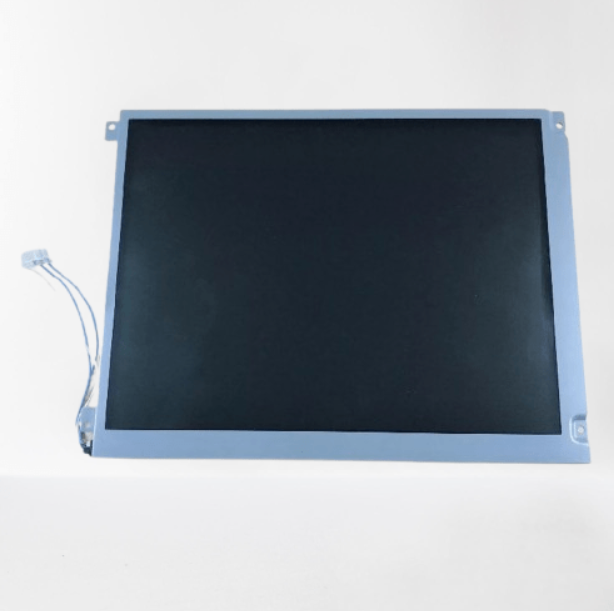

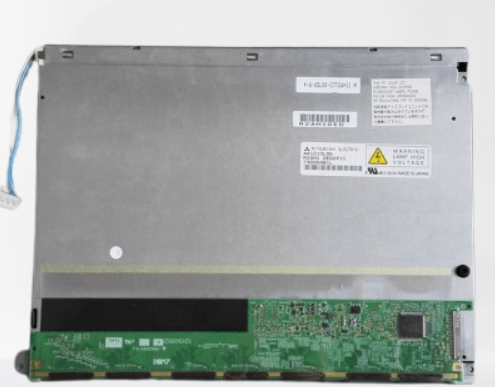

Mitsubishi AA121SL06 LCD display

Specification:

Manufacturer: Mitsubishi
Model: AA121SL06
Display Size: 12.1 inches
Display Type: TFT LCD with LED backlight
Resolution: 800 × 600 pixels (SVGA)
Brightness: 700 cd/m² (typical), suitable for sunlight-readable applications
Contrast Ratio: 700:1 for sharp and vivid image quality
Viewing Angles: 80° left/right, 80° up, 60° down — wide enough for most industrial and medical uses
Interface: LVDS for high-speed and reliable data transmission
Backlight: Long-life LED backlight designed to reduce maintenance and operational costs
Operating Temperature Range: -30°C to +80°C — rugged for harsh industrial environments

Non-returnable

₹11,840.00 ₹18,800.00

Available Offer

Product Details

The Mitsubishi AA121SL06 LCD Module is a high-performance 12.1-inch a-Si TFT-LCD display, ideal for demanding industrial applications. With a resolution of 800(RGB)×600 (SVGA) and a luminance of 350 cd/m², this module delivers bright, clear, and vibrant visuals. Its RGB vertical stripe pixel format ensures precise color reproduction, supporting 262K/16.7M colors for a dynamic display experience.

Designed with durability in mind, the module features an antiglare surface with a hard coating (3H), making it resistant to scratches and reflections. It operates reliably across a wide temperature range of -20°C to 70°C and stores safely between -20°C and 80°C. With 2 CCFL backlight lamps rated for 50,000 hours, it offers long-lasting performance.
