Toshiba LTD104C11S LCD display

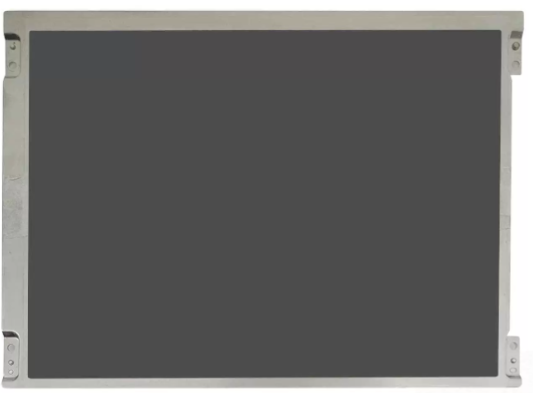

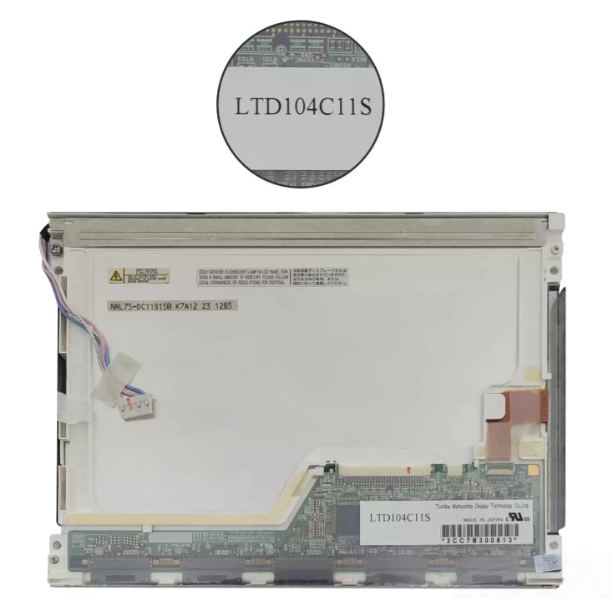

The Toshiba LTD104C11S LCD Module is one of the most popular LCD modules, primarily used in industrial and medical applications. It is a 10.4-inch diagonal a-Si TFT-LCD display panel from Toshiba Matsushita Display Technology Co., Ltd., featuring an integral CCFL backlight system (without backlight driver, without touch screen).

It offers a resolution of 640(RGB)×480 (VGA) with 76 PPI and a contrast ratio of 500:1 (Typ.) (TM). With an active area of 211.2(W) × 158.4(H) mm, housed in a frame measuring 238.5 × 177.5 × 12 mm, it strikes a good balance between screen size and compact form factor.

With a typical luminance of 400 cd/m² and a contrast ratio of 500:1, it provides good visibility under moderate ambient lighting conditions. The panel operates in TN mode, with a viewing angle of 70/70/60/60 (CR≥10), making it most effective when viewed directly. A response time of 10/20 ms (Tr/Td) ensures smooth rendering of interface elements and minor animations.

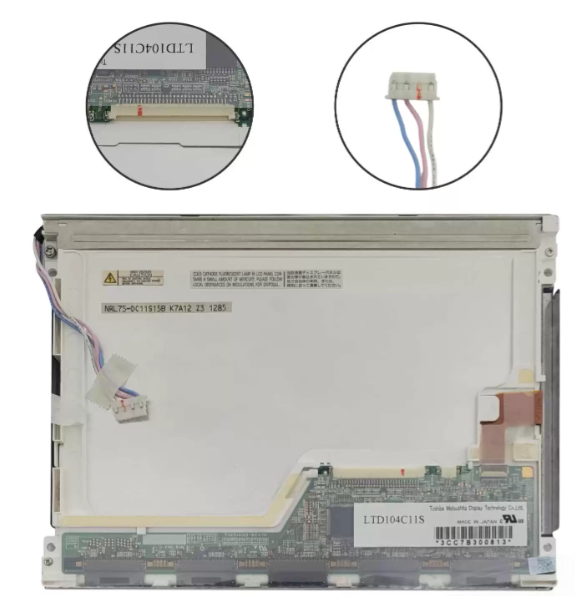

It supports 262K colors and uses a CMOS interface (1 ch, 6-bit, 32 pins), enabling reliable compatibility with a variety of system architectures. With dual CCFL backlighting and an extended lifespan of 50,000 hours, the module is built for long-term deployment in demanding environments.
