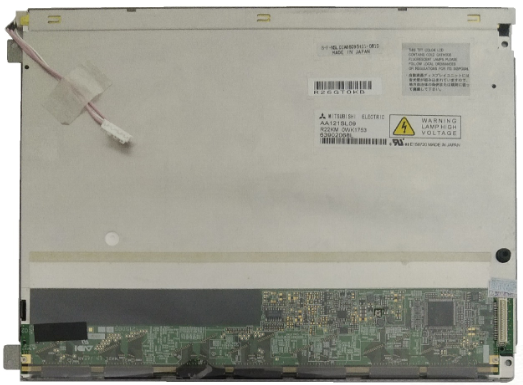

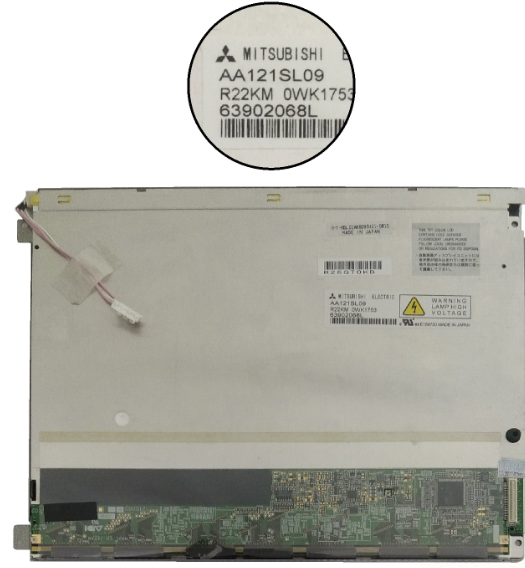

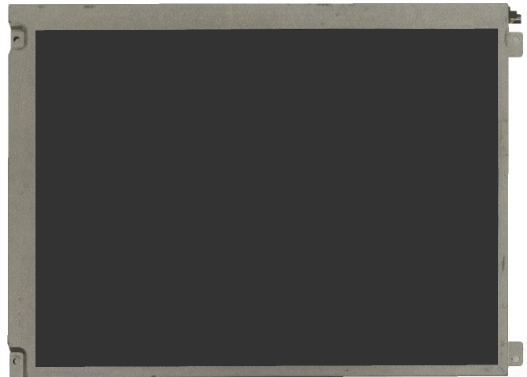

The Mitsubishi AA121SL09 LCD Module is a 12.1″ SVGA display offering a resolution of 800(RGB)×600 with a pixel density of 82 PPI, delivering clear and consistent visuals. It features an active area of 246(W)×184.5(H) mm and an outline dimension of 280(W)×210(H)×12.5(D) mm, making it ideal for various industrial and professional applications.
This panel provides a luminance of 400 cd/m² and a contrast ratio of 500:1, ensuring good brightness and image clarity. The viewing angles are 65/65/45/75 degrees (CR≥10), allowing visibility from multiple directions. It offers a fast response time of 6/19 ms (Tr/Td), enhancing the experience in dynamic display environments.

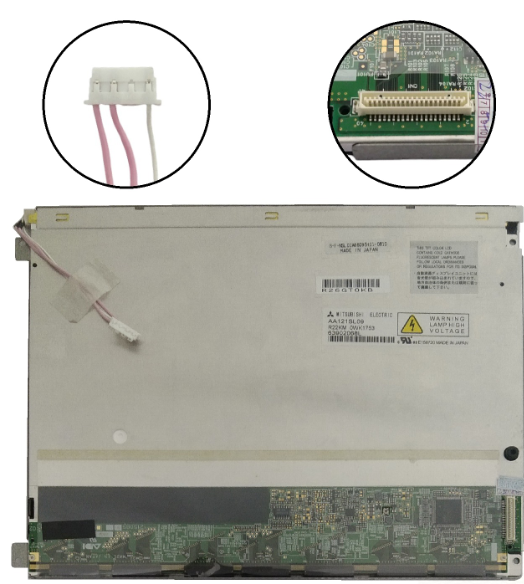

Built with a-Si TFT-LCD technology, the display utilizes RGB Vertical Stripe arrangement and is protected with an antiglare, hard coating (3H) surface. It supports 262K/16.7M colors covering 40% of the NTSC color gamut. The signal interface uses a CMOS (1 channel, 6-bit) configuration with a 41-pin connector at a frame rate of 60Hz. Powered by 3.3V (typical), the panel is illuminated by 2 CCFL backlights rated for 50,000 hours of life, although it does not include a driver.
It operates between -20°C to 70°C and can be safely stored between -20°C to 80°C.
