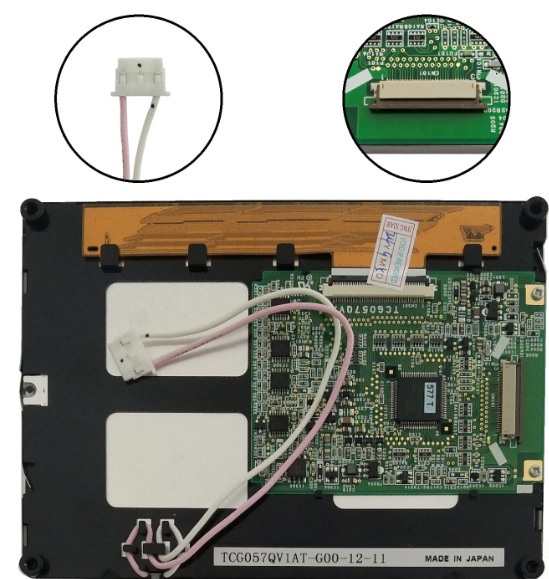

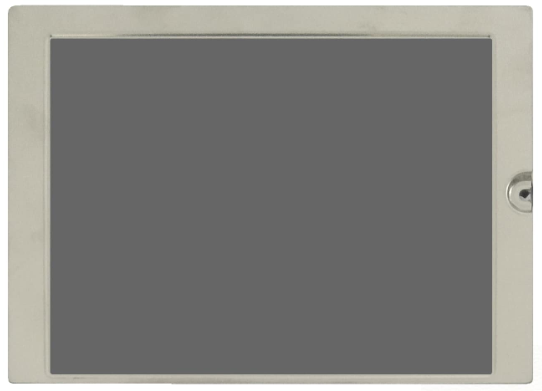

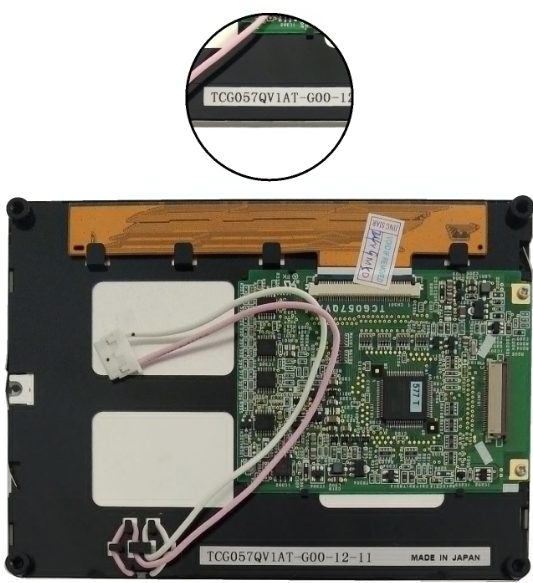

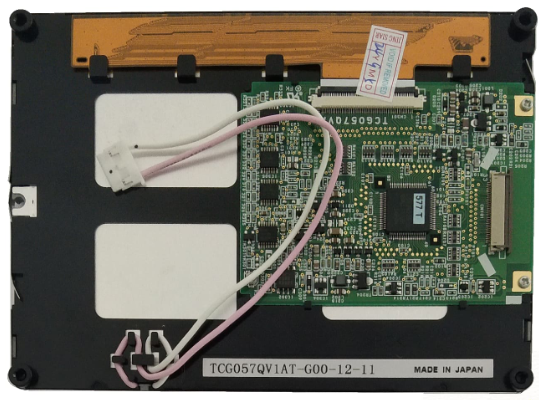

The Kyocera TCG057QV1AT-G00 is a 5.7-inch a-Si TFT-LCD module engineered for industrial and commercial display applications that demand high brightness, stable performance, and compact design. Featuring a QVGA resolution of 320×240 pixels with a pixel density of 70 PPI, this display offers clear and crisp image quality suitable for machine interfaces, diagnostic tools, instrumentation panels, and portable terminals.
The module features an active area of 115.2 mm (W) × 86.4 mm (H), providing a well-balanced viewing surface in a small footprint. It offers a high luminance of 470 cd/m², ensuring visibility even in brightly lit environments. With a contrast ratio of 450:1, users benefit from clear visual distinction between dark and light content.
The display supports a viewing angle of 70°/70°/70°/50° (L/R/U/D, CR≥10), providing good readability from the sides and moderate performance from vertical angles. Its response times of 10 ms (Tr) and 25 ms (Td) enable smooth image transitions, making it reliable for both static content and limited motion display.
Built using a-Si TFT technology, the panel operates in TN mode with a normally white, transmissive configuration, ensuring quick response and energy efficiency. The backlight is provided by a single CCFL lamp, which may be optionally included, depending on the configuration. Designed to endure a wide operating temperature range from -10°C to +70°C, the module is ideal for use in rugged industrial conditions. A stable 3.3V power supply supports low power consumption.
