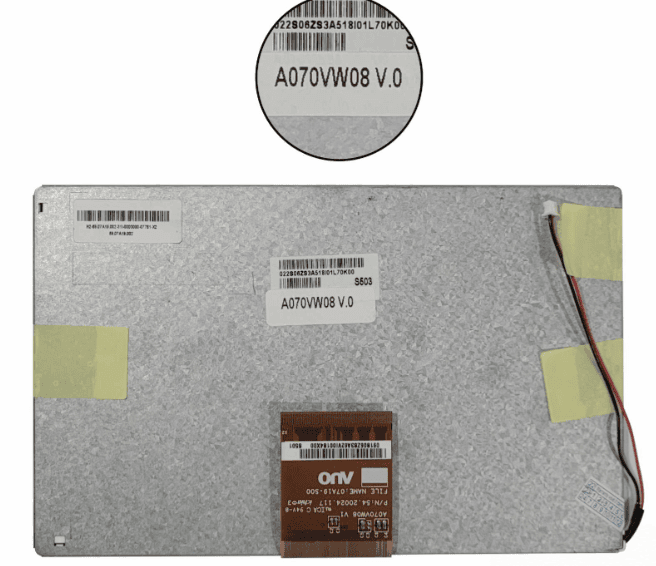

The AUO A070VW08-V.0 LCD Module is a 7.0-inch a-Si TFT-LCD display designed for high-quality visuals and wide industrial applications. With a WVGA resolution of 800×480 pixels and RGB horizontal stripe format, this display ensures sharp and vibrant imagery, making it ideal for digital photo frames, portable DVD players, MP3/PMP devices, and more.
Featuring an antiglare surface with a hard coating (3H), this LCD module minimizes reflections and enhances durability. The 250 cd/m² brightness and 500:1 contrast ratio deliver clear and crisp visuals, while its 80/80/50/60° viewing angles provide a balanced display experience. The TN, normally white, transmissive display mode ensures high-speed response, with a 12/18 ms (Tr/Td) response time.
The A070VW08-V.0 comes equipped with a 3S7P WLED backlight rated for 10,000 hours of operation, ensuring long-term reliability. It supports TTL (1ch, 8-bit) + SPI signal interface via a 60-pin FPC connector and operates at 3.3V/5V input voltage. With a lightweight 150±10g build, this module is ideal for portable and embedded display applications.
Technical Precautions :-
It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
Always turn off the power supply when you are inserting or disconnecting it from the input connector.
Wipe off water drop immediately as it may cause discoloration or spots.
Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
Do not try to open or modify the module assembly.
At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
Severe temperature condition may result in different luminance, response time.
