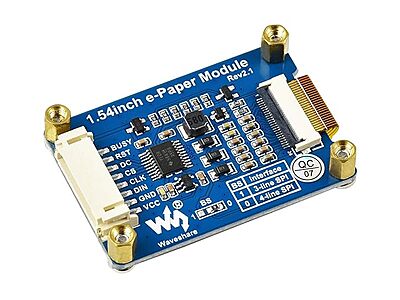

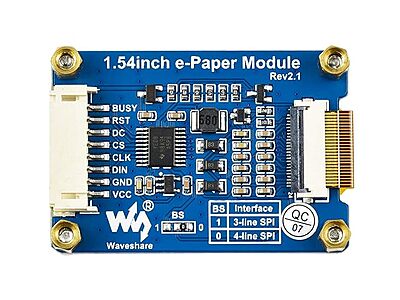

Part No.:1.54inch e-Paper Module (B)
Resolution: 200×200 pixels
Color: Red, Black, and White
Interface: SPI
Power Consumption: Ultra-low (only consumes power when changing content)
Available Offer

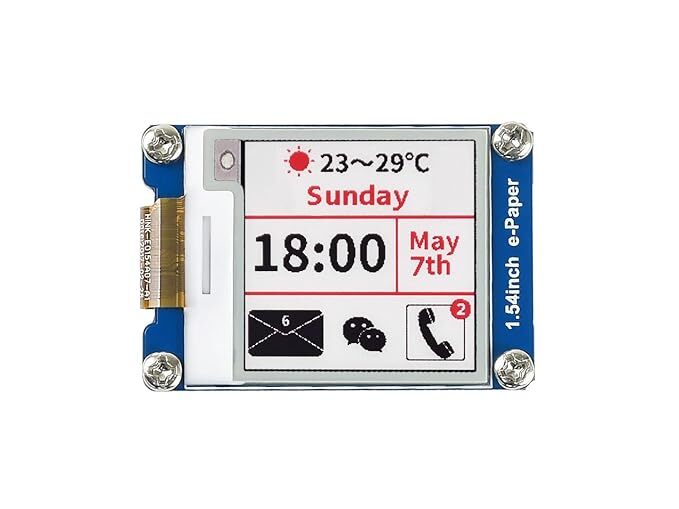

The Waveshare 1.54-inch 200×200 tri-color e-Paper display delivers high-contrast, vivid visuals using electrophoretic ink technology that shows black, white and red colors clearly without a backlight.
With a 200×200 pixel resolution, it offers sharp text and graphics for embedded IOT projects.
The panel uses a standard SPI interface, making integration with Arduino, ESP32, Raspberry Pi and other controllers straightforward.
This e-Paper display operates in ultra-low power mode, drawing power only while refreshing the screen.
Its reflective display design ensures excellent readability even in direct sunlight, eliminating the need for a backlight.
The low power consumption and wide viewing angle make it ideal for battery-powered IoT dashboards and information signage.
Package Include
- 1.54inch e-Paper Module (B) x1
- PH2.0 20cm 8Pin x1
