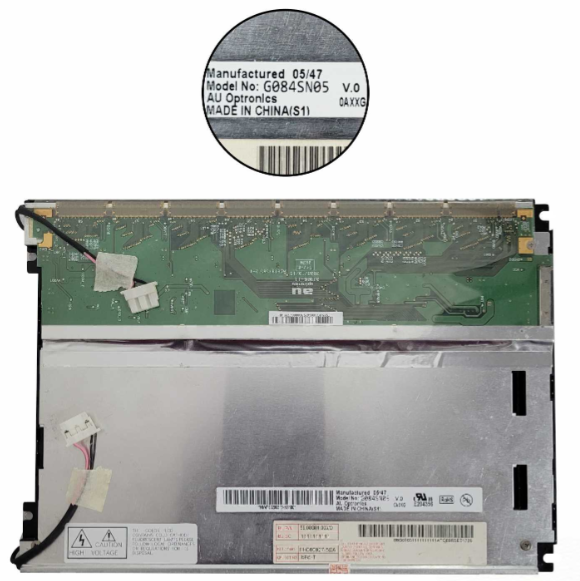

AUO G084SN05-V.0 LCD DISPLAY

The AUO G084SN05-V.0 LCD Module is 8.4-inch TFT-LCD panel delivers an SVGA resolution of 800(RGB)×600 pixels at 119 PPI, providing sharp, high-clarity visuals. Its active area measures 170.4 mm × 127.8 mm, while the overall outline is 203 mm × 142.5 mm × 8.6 mm, offering a compact footprint for embedded or industrial applications.

Engineered with a-Si TFT-LCD technology, the panel operates in TN mode with a normally white, transmissive design. It delivers a typical brightness of 350 cd/m² and a contrast ratio of 500:1, ensuring clear image reproduction in various lighting conditions.

Viewing angles are rated at 60° from the left, right, and above, and 40° from below (CR≥10), suitable for direct viewing use cases. The response time is 10 ms for rise and 25 ms for fall, offering adequate performance for static or moderately dynamic content.

It supports 262K colors and covers 46% of the NTSC color gamut. The display interfaces through a 20-pin LVDS connector with 1-channel 6-bit support, running at a 60Hz refresh rate. Power is supplied via a 3.3V input.

The backlight system consists of 2 CCFL tubes with a typical lifespan of 50,000 hours, requiring an external driver. Weighing approximately 260g, the panel is designed to operate between 0°C and 50°C and can be stored at temperatures ranging from -20°C to 60°C.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
