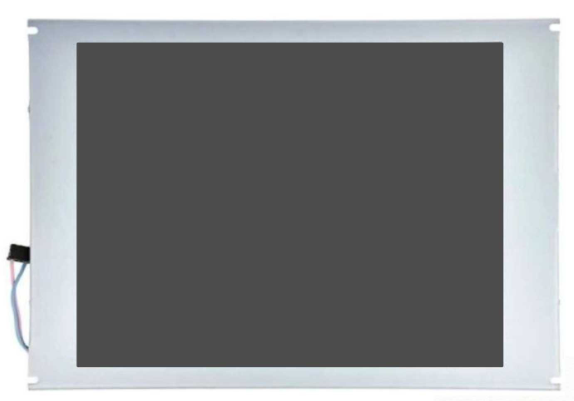

The Sharp LM64P30R is a 9.4-inch monochrome FSTN-LCD (Film-compensated Super Twisted Nematic) module, purpose-built for legacy industrial, control, and embedded systems that demand consistent performance, clarity, and a slim profile. With a VGA resolution of 640 × 480 pixels and a pixel density of 84 PPI, it is ideal for clear rendering of text, menus, and basic graphics in embedded control panels or monitoring interfaces.
The active display area spans 191.97 mm × 143.97 mm, neatly enclosed in a compact 166 mm × 109 mm × 7.5 mm chassis, providing a large viewing space in a space-efficient frame. The use of FSTN technology with STN enhancement in a Black/White monochrome mode ensures improved contrast and outdoor readability compared to standard STN displays.
This panel is illuminated by a single CCFL backlight (driver not included), suitable for use in moderate ambient lighting conditions. The parallel data interface makes it straightforward to integrate with a variety of embedded microcontrollers and industrial systems, supporting legacy hardware architectures.
Key Specifications:
Display Size: 9.4 inches (diagonal)
Resolution: 640 × 480 (VGA)
Pixel Density: 84 PPI
Display Type: Monochrome FSTN-LCD (STN-enhanced)
Display Mode: Normally white, transmissive
Active Area: 191.97 mm (W) × 143.97 mm (H)
Outline Dimensions: 166 mm (W) × 109 mm (H) × 7.5 mm (D)
Backlight: 1 × CCFL (cold cathode, driver not included)
Interface: Parallel data interface
Power Supply: Not specified (likely 3.3V or 5V typical for similar models)
Touch Support: Not included
Environmental & Performance Characteristics:
Brightness / Contrast: Not specified
Viewing Angle / Response Time: Not specified
Frame Rate: Not specified (typically 60–75Hz assumed)
Operating Temperature: Not specified
Storage Temperature: Not specified
Applications:
Industrial control terminals
Legacy equipment upgrades
Diagnostic tools
Medical and handheld instrumentation
Embedded visualization systems
