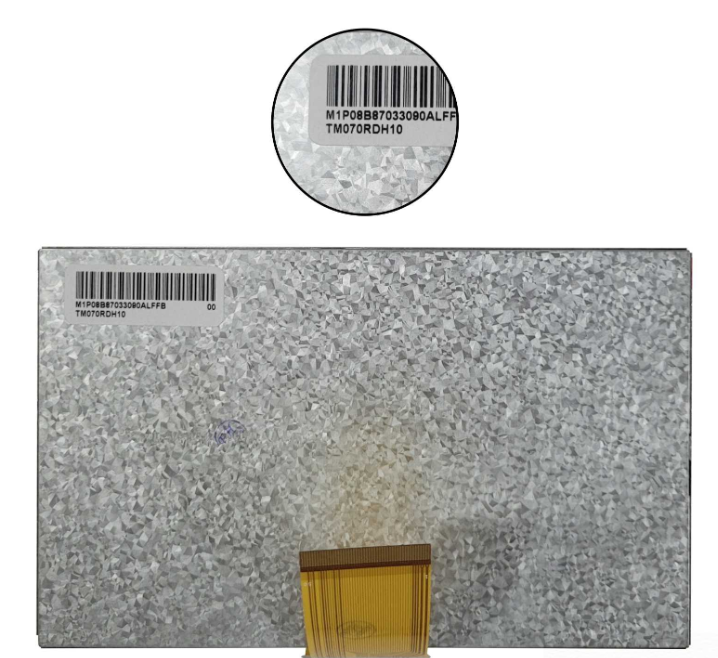

Tianma TM070RDH10 LCD display

The Tianma TM070RDH10 LCD Module is a 7.0-inch display delivering crisp visuals with WVGA resolution of 800(RGB)×480 and a pixel density of 134 PPI, offering excellent clarity across its 154.08(W)×85.92(H) mm active area. Its a-Si TFT-LCD panel is designed in TN, Normally White, Transmissive mode, combined with an antiglare surface to ensure clear readability and energy-efficient performance in bright environments. The module provides a luminance of 450 cd/m² and an 800:1 contrast ratio, ensuring vivid brightness and deeper contrast for dynamic visuals. Viewing angles of 80/80/60/80° (CR≥10) enable consistent display quality from multiple directions, while a response time of 15 ms ensures smooth transitions. It supports 262K/16.7M colors at 50% NTSC, delivering accurate color representation. The unit features a Parallel RGB (1 ch, 6/8-bit) interface with a 50-pin FPC connector for easy integration. With an operating temperature range of -30°C to 80°C and a durable 3S8P WLED backlight (20K hours lifespan), this display is built for reliability in demanding environments.
