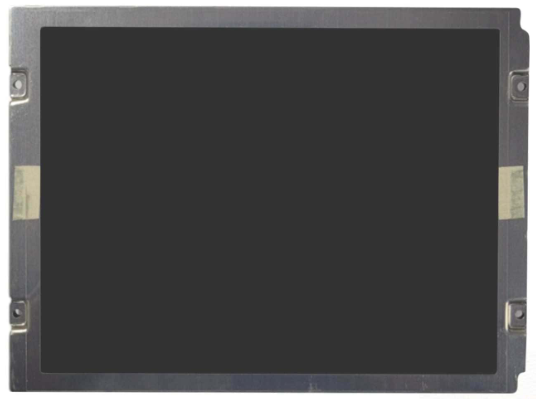

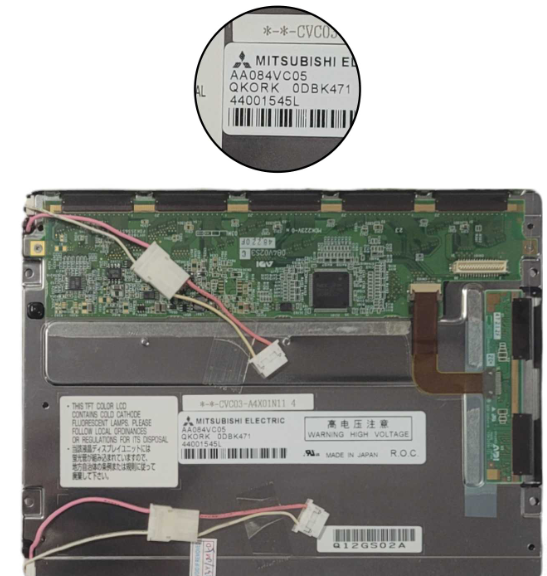

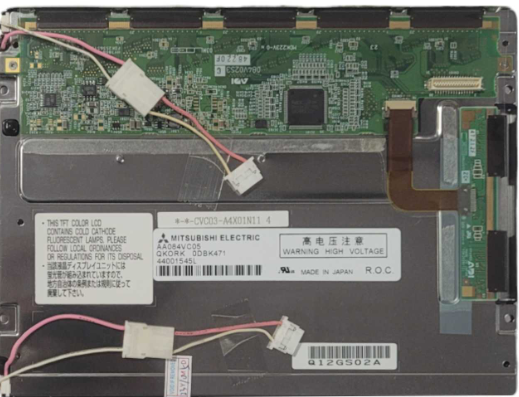

The Mitsubishi AA084VC05 LCD Module is an 8.4-inch a-Si TFT-LCD module delivering a high-quality display solution for demanding industrial, automotive, and outdoor applications. Featuring a VGA resolution of 640(RGB)×480 and a pixel density of 95 PPI, it provides sharp, clear visuals suitable for HMIs, instrumentation, and embedded systems.
Its active area of 170.88(W)×128.16(H) mm is enclosed in a compact 199.5(W)×149(H)×12(D) mm form factor. A luminance of 480 cd/m² and 500:1 contrast ratio ensure vivid image quality even under strong ambient light. The display utilizes TN technology, operating in a Normally White, Transmissive mode for consistent brightness and visibility.
With viewing angles of 65/65/50/60 (CR≥10), the screen maintains legibility from multiple directions. With a swift response time of 6/19 ms (Tr/Td), the display seamlessly renders both static images and dynamic content, making it well-suited for fast-paced visual interfaces. In addition, its surface features an antiglare coating and a 3H hard layer, which not only enhance visual clarity but also shield the panel against scratches and reflective glare. Consequently, users benefit from consistent visibility and long-term durability, even in demanding operational settings.

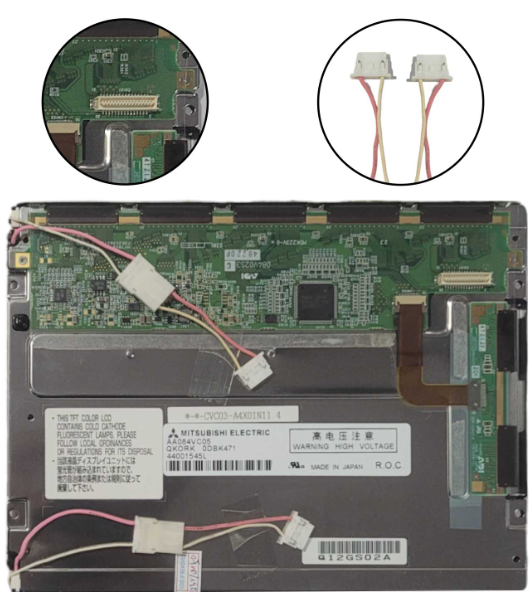

Furthermore, the display supports 262K colors at 40% NTSC, offering rich color representation. It connects via a CMOS interface (1 ch, 6-bit) through a 31-pin connector, and operates at a 60Hz frame rate, ensuring smooth and stable performance throughout.
The display runs on a 3.3V power supply and includes 2 CCFL backlights with a 50,000-hour lifespan (driver not included). It handles harsh environments with ease, operating between -20°C and +70°C. For storage, it withstands temperatures from -20°C to +80°C, making it a dependable choice for industrial deployments.
