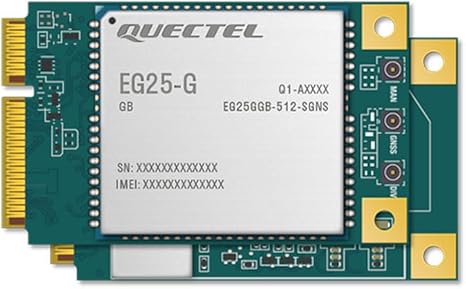

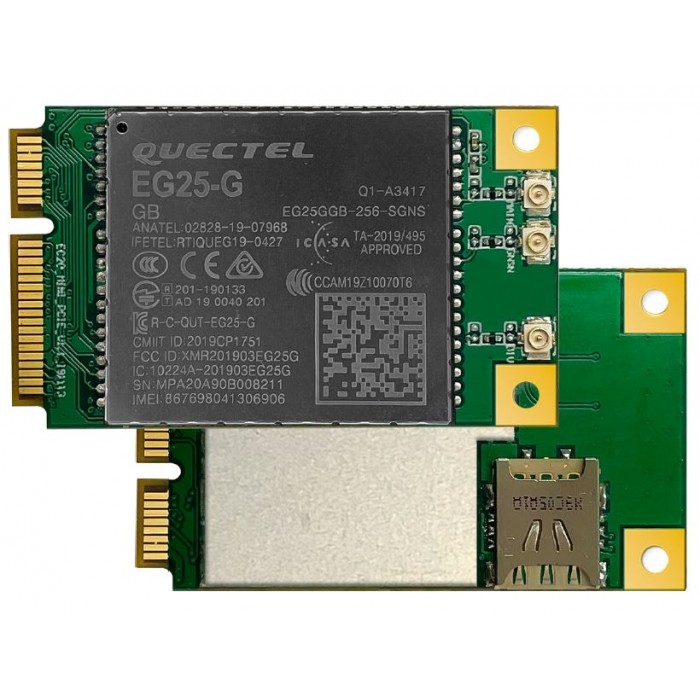

RF AND WIRELESS MODULEQUECTEL MODULES QUECTEL EG25-GGB-MINIPCIE-S Withantenna and RF cable
QUECTEL EG25-GGB-MINIPCIE-S With antenna and RF cable
QUECTEL EG25-GGB-MINIPCIE-S With antenna and RF cable
QUECTEL EG25-GGB-MINIPCIE-S With antenna and RF cable
QUECTEL EG25-GGB-MINIPCIE-S With antenna and RF cable
QUECTEL EG25-GGB-MINIPCIE-S With antenna and RF cable

QUECTEL EG25-GGB-MINIPCIE-S Withantenna and RF cable

Specifications:

  • Cellular Standard: LTE Cat 4 / UMTS / GSM

  • LTE Bands: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B38/B39/B40/B41

  • UMTS Bands: B1/B2/B4/B5/B6/B8/B19

  • GSM Bands: 850/900/1800/1900 MHz

  • GNSS Support: GPS, GLONASS, BeiDou, Galileo

  • Data Rates:

    • LTE: DL 150 Mbps / UL 50 Mbps

    • HSPA+: DL 42 Mbps / UL 5.76 Mbps

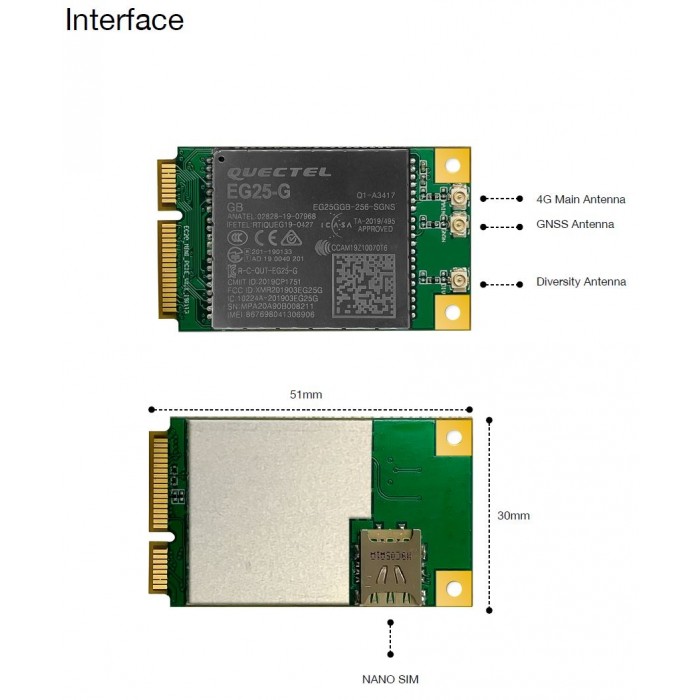

  • Interfaces:

    • USB 2.0

    • SIM (1.8V / 3.0V)

    • UART, PCM (optional)

  • Power Supply: 3.3 V (via Mini PCIe)

  • Operating Temperature: –30 to +75 °C (extended range)

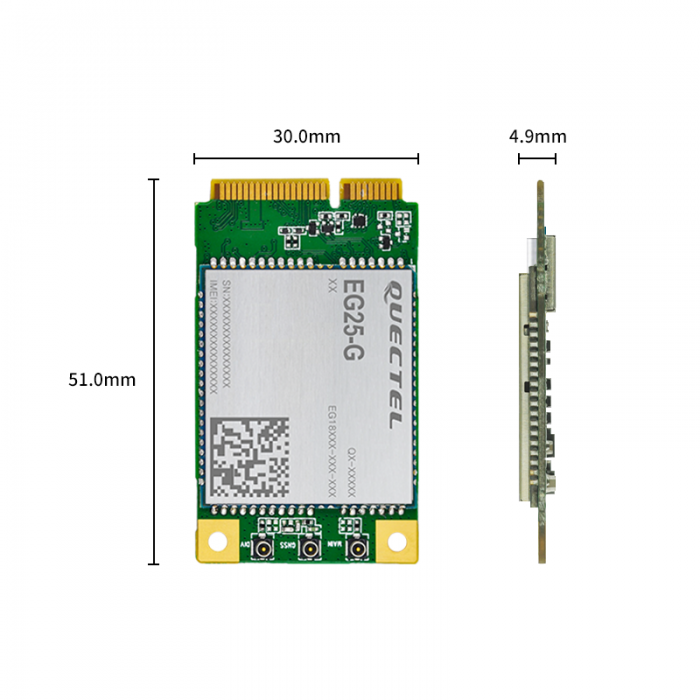

  • Form Factor: Standard Mini PCIe (51 × 30 × 4.9 mm)

  • Weight: ~8 g

  • Certifications: CE, FCC, GCF, PTCRB, IC, RCM

Non-returnable
₹6,700.00 ₹7,000.00
Product Details

The Quectel EG25-GGB-MINIPCIE-S is a compact 4G LTE Cat 4 Mini PCIe module designed for worldwide connectivity. It supports LTE, UMTS/HSPA+, and GSM/GPRS/EDGE networks. This version comes integrated with antenna and RF cable, making it suitable for a wide range of IoT and embedded computing applications including industrial routers, gateways, and rugged tablets.


Features:

  • 4G LTE Cat 4 module with global band support

  • Mini PCIe form factor, plug-and-play for embedded systems

  • Downlink speed up to 150 Mbps, uplink up to 50 Mbps

  • Integrated GNSS receiver (GPS, GLONASS, BeiDou, Galileo)

  • Includes high-performance antenna and RF cable

  • USB 2.0 high-speed interface

  • Drivers available for Windows, Linux, and Android

  • Low power consumption with power-saving mode support

  • Designed for harsh environments with extended temperature support
