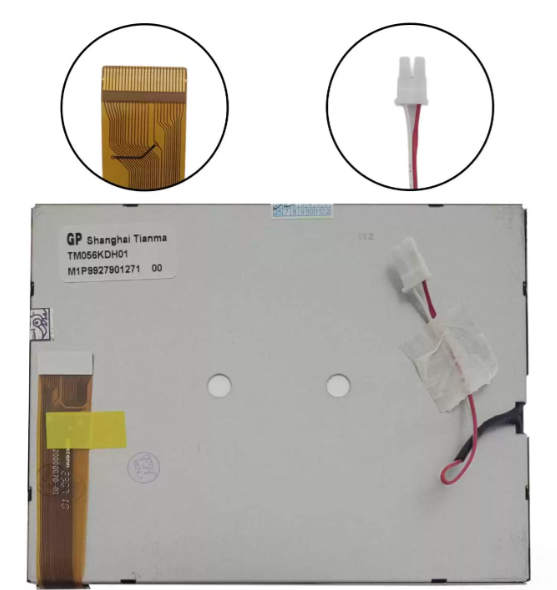

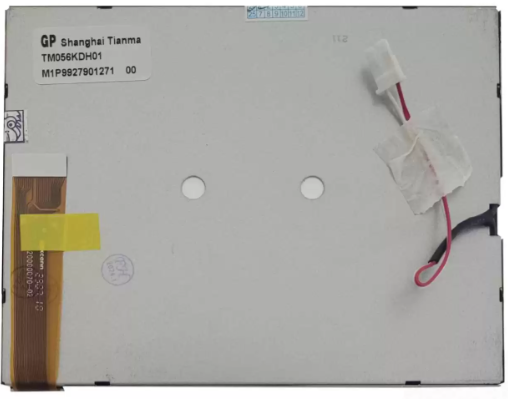

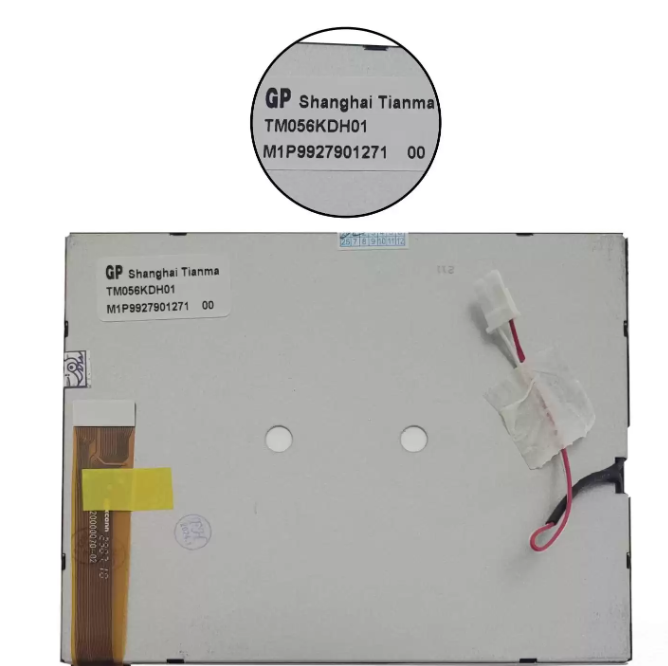

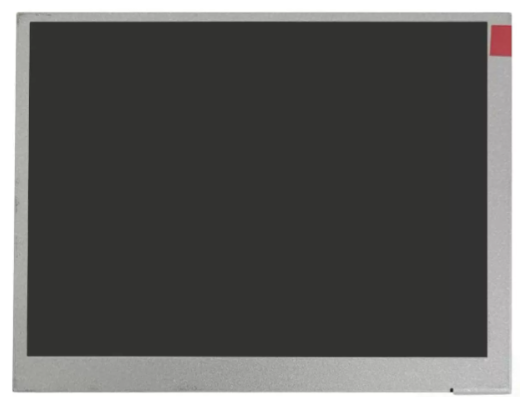

Tianma TM056KDH01 LCD display

The Tianma TM056KDH01 LCD Module is a 5.6″ TFT-LCD panel designed for compact yet clear visual output, offering a resolution of 320×234 pixels at 71 PPI. Its active area measures 113.28(W) × 84.708(H) mm, while the slim outline dimension of 126.5(W) × 100(H) × 6(D) mm supports space-conscious designs. The compact form factor makes it ideal for portable and embedded applications. Thanks to its antiglare surface, the display minimizes reflections, enhancing readability under challenging lighting. With a 300:1 contrast ratio, it ensures clear, distinguishable visuals for a reliable viewing experience. The 25 ms response time supports smooth transitions, beneficial for real-time data displays. Operating in TN, Normally White, Transmissive mode, the panel maintains brightness and clarity while optimizing power consumption, balancing visual performance and energy efficiency for industrial and commercial use. Viewing angles of 65/65/45/65 (CR≥10) offer moderate visibility, suitable for handheld terminals or instrumentation displays. Supporting full color at 50% NTSC, it delivers vibrant yet energy-efficient visuals. It features a TFT-specific analog RGB interface (26-pin FPC), simplifying integration into analog systems. With a 2S7P WLED backlight and temperature tolerance from -20°C to 70°C (operating), it’s a dependable choice for industrial controls, automotive displays, and portable diagnostics.
