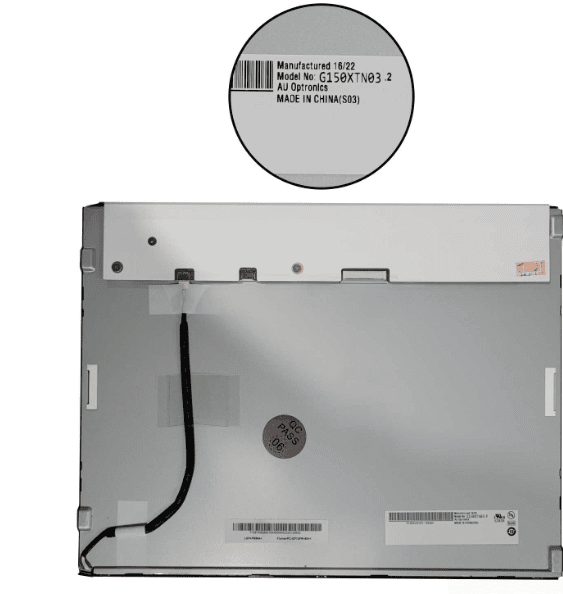

AUO G150XTN03.2 LCD DISPLAY

The AUO G150XTN03.2 LCD Module is a 15.0-inch industrial-grade TFT-LCD display designed to deliver stable performance, clear image quality, and long operational life in professional environments. It uses advanced a-Si TFT-LCD technology and operates in TN, normally white, transmissive mode, making it suitable for control panels, embedded systems, and industrial equipment.

This display provides a sharp XGA resolution of 1024 × 768 pixels with a pixel density of 85 PPI. The large active display area of 304.128 × 228.096 mm ensures excellent readability of graphical interfaces, monitoring screens, and user dashboards. With a typical brightness of 350 cd/m² and a contrast ratio of 700:1, the panel maintains consistent visibility under different lighting conditions.

The module supports 262K / 16.2 million colors with 60% NTSC color coverage, delivering reliable color reproduction for industrial and commercial visualization tasks. Fast response times of 5.7 ms (rise) and 2.3 ms (fall) enable smooth image transitions and reduced motion blur.

The AUO G150XTN03.2 uses a 1-channel LVDS (6/8-bit) 20-pin interface and operates at a standard 60 Hz refresh rate. It is powered by a 3.3 V input and features an integrated WLED backlight with built-in LED driver, rated for 50,000 hours of operation. The module is designed for controlled environments with an operating temperature range of 0°C to 65°C and storage down to –20°C.
