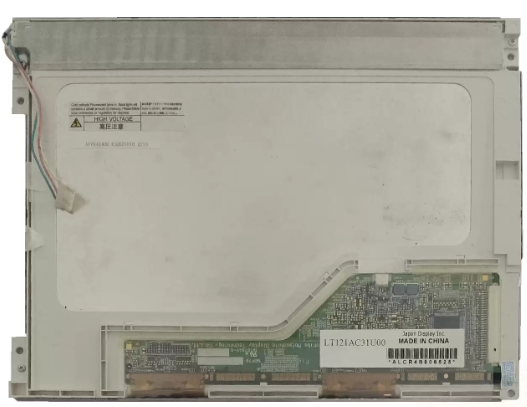

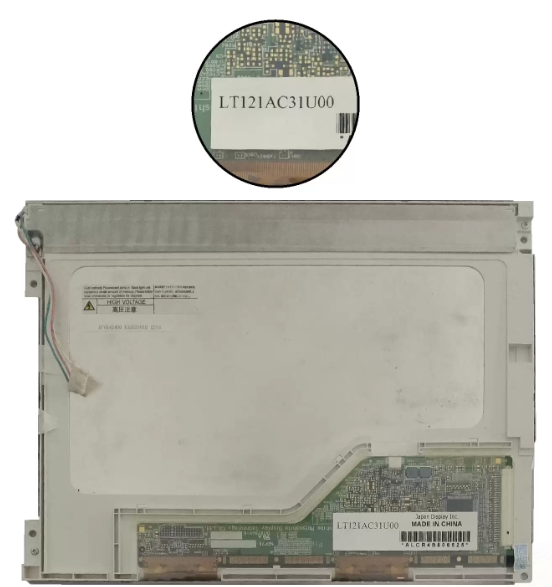

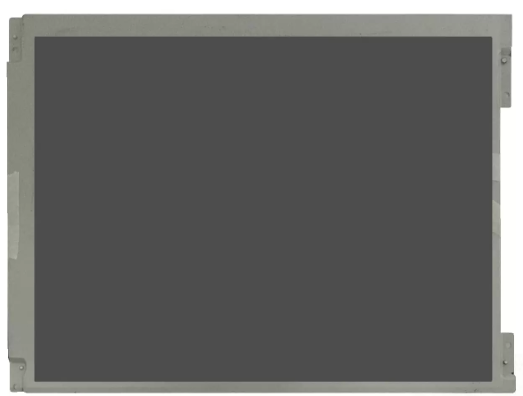

Toshiba LT121AC31U00 LCD display

The Toshiba LT121AC31U00 LCD Module is a 12.1″ LTPS TFT-LCD panel featuring 800×600 SVGA resolution, providing a solid display quality for various applications. The panel type utilizes LTPS (Low Temperature Poly-Silicon) TFT-LCD, known for its high performance, better efficiency, and reduced power consumption compared to traditional TFT displays.

This panel operates in TN mode, with a normally white, transmissive configuration, making it suitable for environments where brightness and color accuracy are not the primary focus. However, the active area, outline dimension, and other specific visual performance details like luminance, contrast ratio, viewing angle, and response time are not provided.

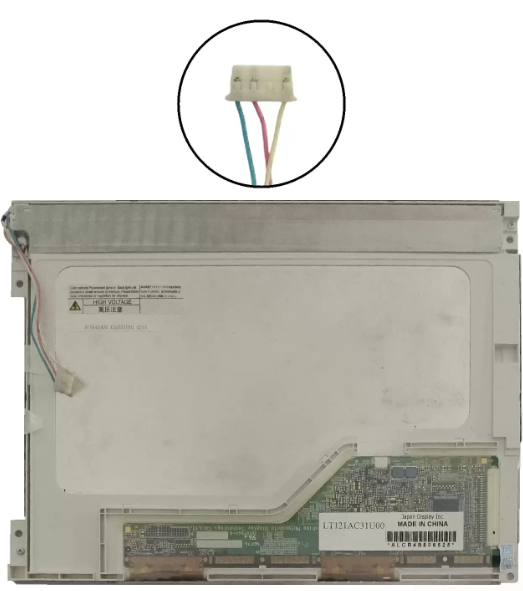

The signal interface uses LVDS (1 ch, 6-bit), ensuring stable data transfer. For backlighting, the panel uses 2 CCFL lamps, which require an external driver for operation, adding to the system’s complexity.
