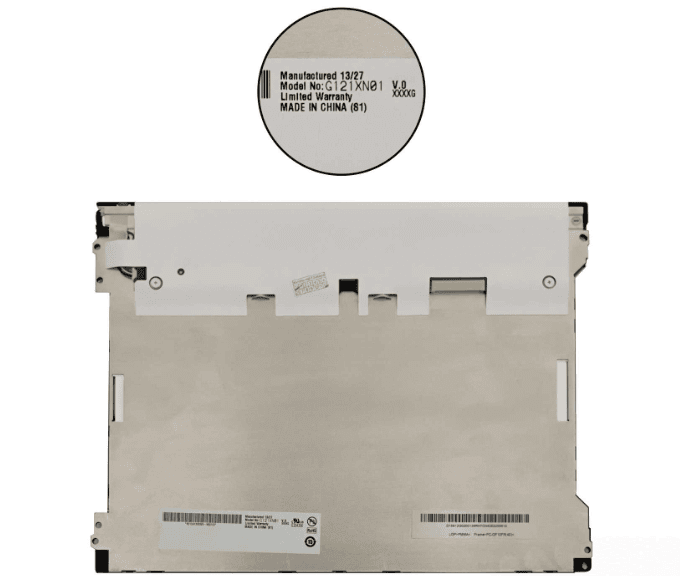

AUO G121XN01-V.0 LCD DISPLAY

The AUO G121XN01-V.0 LCD Module is a high-brightness, durable, and energy-efficient solution designed for industrial, medical, and commercial applications. With a 1024 × 768 XGA resolution (105 PPI) and an active area of 245.76 mm (W) × 184.32 mm (H), it delivers sharp, clear, and detailed visuals.

Featuring an impressive 500 cd/m² brightness and a 700:1 contrast ratio (TM), this a-Si TFT-LCD panel ensures excellent image clarity in various lighting conditions. The wide viewing angles of 80° in all directions (CR≥10) enhance visibility, making it ideal for demanding environments. With a response time of 25ms (Tr) and 10ms (Td), it provides smooth motion performance for real-time applications.

This TN-mode, Normally White, and Transmissive panel supports 262K/16.2M colors with 70% NTSC coverage, delivering vibrant and accurate colors. The LVDS (1ch, 6/8-bit) 20-pin connector ensures stable signal transmission, while the 60Hz frame rate offers consistent refresh rates.

Powered by a 3.3V supply, the display incorporates a 9S2P WLED backlight with a lifespan of 50K hours and a built-in LED driver for optimal efficiency. Weighing 495g (max), it operates within -30°C to 85°C, making it highly reliable for extreme conditions.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
