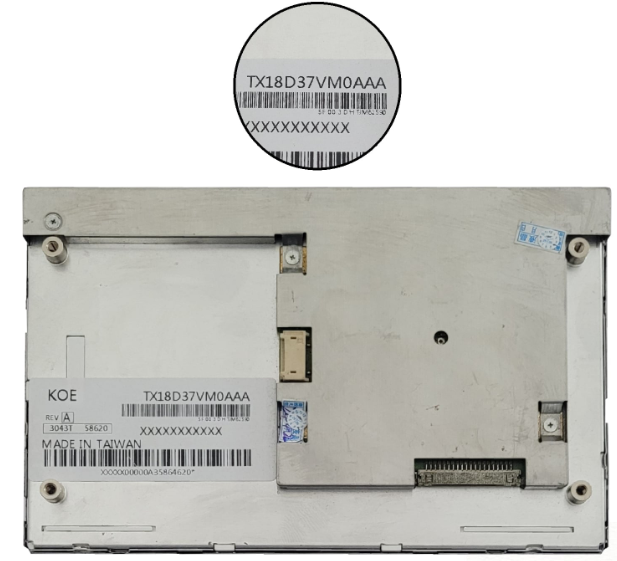

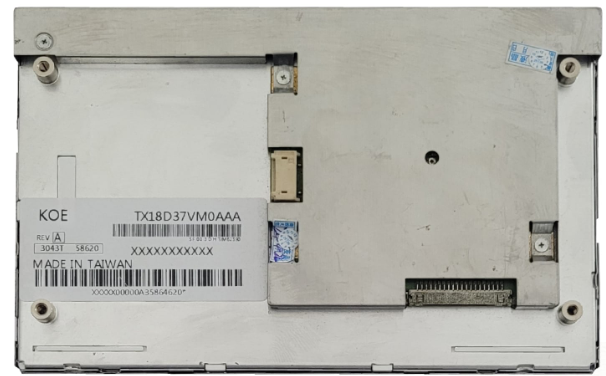

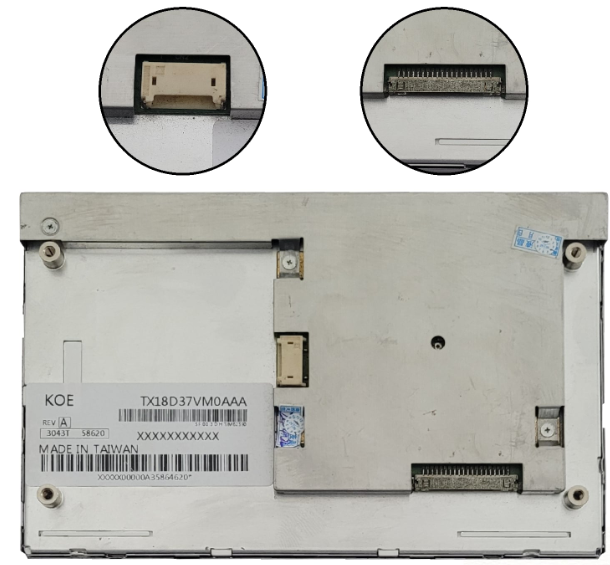

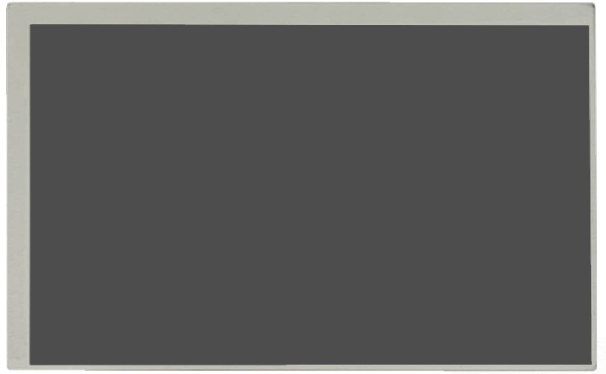

The KOE TX18D37VM0AAA LCD Module is 7.0″ a-Si TFT-LCD display stands out with its impressive 800×480 WVGA resolution, offering a high 133 PPI pixel density for sharp, clear visuals. It features a wide active area of 152.4(W)×91.44(H) mm within a compact 165×104×13.3 mm frame. Notably, the display provides a high luminance of 450 cd/m² and a strong contrast ratio of 600:1, ensuring vivid and bright image reproduction even in challenging lighting conditions. Thanks to its IPS Pro technology, the panel delivers superior 85° viewing angles in all directions, maintaining color consistency and clarity. It operates in a Normally Black, Transmissive mode, which enhances color depth and richness. The response time is rated at 45 ms (max), suitable for many industrial and multimedia applications. For connectivity, it uses a LVDS (1 ch, 6-bit) interface through a 20-pin connector, operating at a standard 60Hz frame rate. It is powered by a 3.3V supply and features a durable WLED backlight with a built-in LED driver, rated for 70,000 hours of life. Additionally, the panel is highly robust, designed to operate between -30°C to 85°C and withstand up to 5.0G vibrations, making it ideal for harsh environments.
