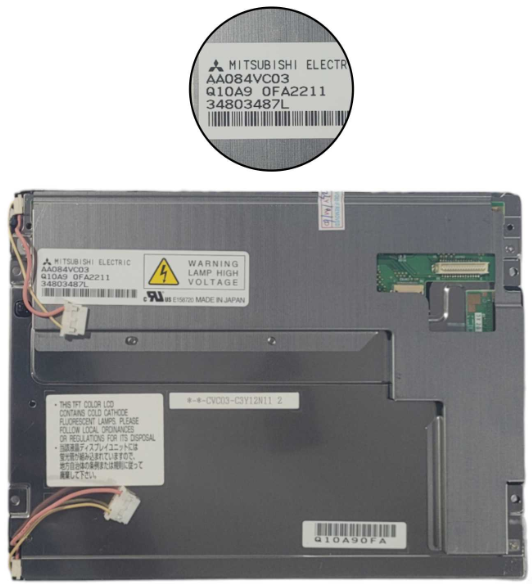

Mitsubishi AA084VC03 LCD display

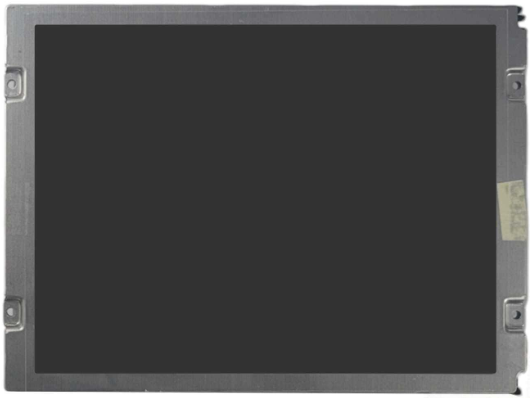

The Mitsubishi AA084VC03 LCD Module is an 8.4-inch a-Si TFT-LCD display engineered for industrial and embedded applications requiring dependable visual output and robust performance. With a VGA resolution of 640(RGB)×480 and a pixel density of 95 PPI, it offers sharp and legible visuals suited for HMIs, diagnostics, and control systems.

The active area measures 170.88 mm × 128.16 mm, framed in a compact 199.5 × 149 × 12 mm outline, allowing easy integration into various devices. Its 450 cd/m² luminance and 450:1 contrast ratio deliver bright, clear images across standard ambient lighting conditions.

Featuring TN, Normally White, Transmissive technology, the panel supports viewing angles of 65°/65°/50°/60° (CR≥10). The response time of 8/27 ms (Tr/Td) ensures smooth transitions—ideal for dynamic interfaces. It supports 262K colors at 39% NTSC, enabling accurate color reproduction.

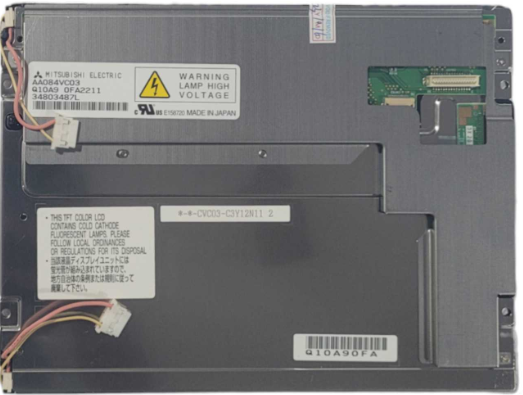

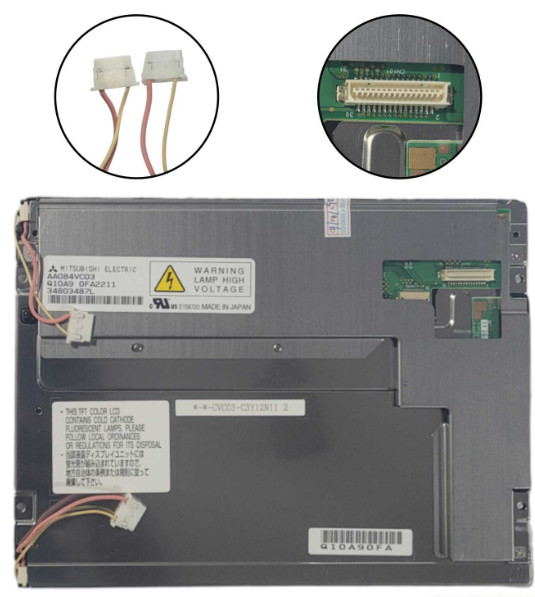

The unit connects via a CMOS (1 channel, 6-bit) interface using a 31-pin connector, operating at 60Hz. It runs on a 3.3V power supply, promoting efficient energy use. The backlight system consists of 2 CCFLs, offering up to 40,000 hours of lifespan, although a driver is not included.

Built to perform in harsh environments, it handles operating temperatures from -20°C to 70°C and storage temperatures from -20°C to 65°C, ensuring long-term reliability in diverse industrial settings.
