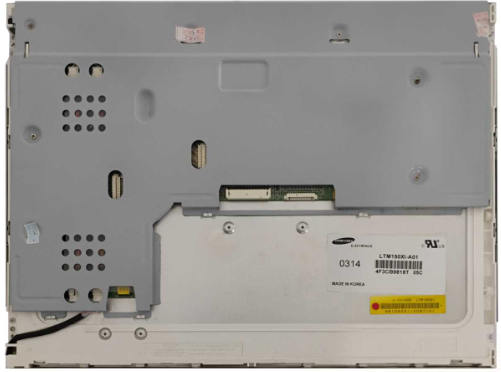

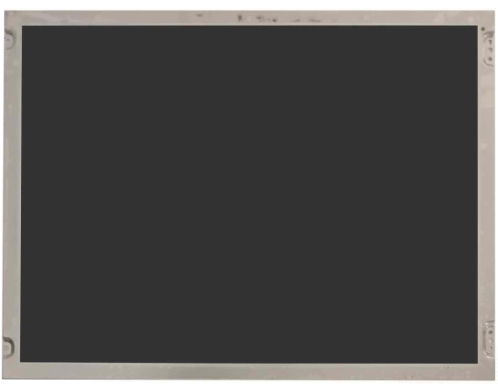

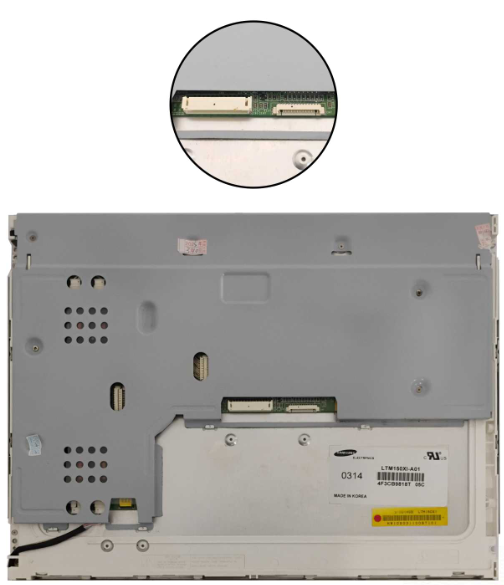

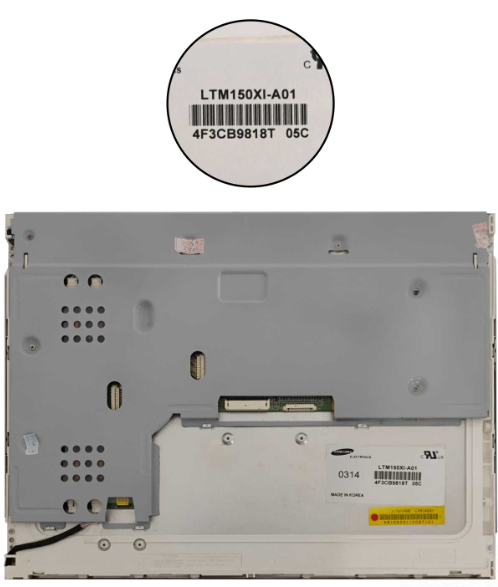

The Samsung LTM150XI-A01 LCD Module offers an optimal balance of clarity, brightness, and durability, making it a reliable choice for industrial and commercial applications. With a 1024 × 768 resolution, this screen delivers crisp images and sharp details, ensuring high-quality visuals for various use cases. The active area measures 304.128 × 228.096 mm, while the overall dimensions are 331.6 × 255.3 × 18 mm, providing a compact yet efficient display solution.
This a-Si TFT-LCD panel features a matte surface with 3H hard coating for reduced glare and enhanced durability. Operating in TN mode, the display maintains a 300:1 contrast ratio and a brightness level of 250 cd/m² (typical), offering decent readability under standard lighting conditions. It supports 16.2 million colors (65% CIE1931), ensuring vibrant color reproduction for accurate imaging.
With a response time of 5ms (tr) and 20ms (td), this screen minimizes motion blur, making it suitable for applications requiring smooth visual transitions. The 60Hz refresh rate ensures stable display performance, while the viewing angles of 65°/65°/50°/60° (min.) provide adequate visibility from different perspectives.
Equipped with four CCFL backlights with an inverter, this display operates within a temperature range of 0 to 50°C and can be stored at -25 to 60°C, ensuring reliable performance across varying environments.
