BATTERIES/COIN CELL/CR2032 coin cell with 2 pin connector(Yellow)/

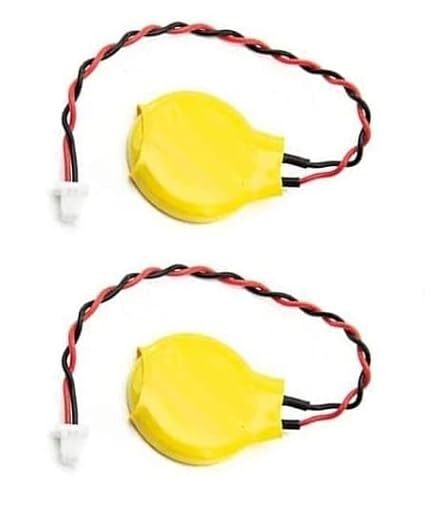

CR2032 coin cell with 2 pin connector(Yellow)

Technical Specifications:

Battery type: CR2032
Nominal voltage: 3V DC
Capacity: Approximately 220 mAh
Chemistry: Lithium Manganese Dioxide (Li-MnO2)
Connector type: 2-pin female connector (typically 2.0 mm pitch)
Wire length: Around 6 to 10 centimeters
Operating temperature range: minus 20 to plus 60 degrees Celsius
Diameter: 20 millimeters
Thickness: 3.2 millimeters
Weight: Approximately 3 to 4 grams

Non-returnable

₹15.00 ₹25.00

Product Details

The CR2032 3V coin cell battery with a 2-pin JST-style connector and yellow shrink wrap is widely used for CMOS backup, RTC modules, and memory retention in embedded systems. Its pre-attached leads make it easy to plug into mainboards or embedded devices without soldering.

Features:

Pre-attached 2-pin connector (JST-style or similar)
Yellow insulated heat-shrink housing for protection
Plug-and-play—no soldering required
Long shelf life and stable output
Ideal for BIOS backup, RTC modules, and embedded systems
