DEVELOPMENT BOARDORANGE PIORANGE PI BOARD Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)
Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)

Orange Pi Zero 3 4G Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, Support 4K Display WiFi Bluetooth (Zero 3 4G)

Specifications:

  1. SoC: Allwinner H618 quad-core Cortex-A53 (64-bit)

  2. RAM: 1 GB LPDDR4 (Zero 3 4G variant)

  3. Storage Options: microSD slot (bootable) + optional eMMC module support

  4. 4G Connectivity: SIM card slot; supports cellular bands depending on region

  5. Wi-Fi: Dual‑band IEEE 802.11 a/b/g/n/ac

  6. Bluetooth: Version 5.0

  7. Video Output: HDMI 2.0, up to 4K @ 30 fps

  8. USB Ports: 1× USB 2.0 Type-A; 1× USB 2.0 OTG Type-C

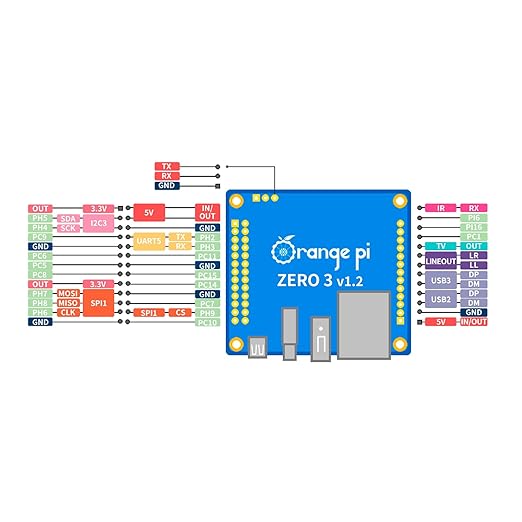

  9. GPIO: 26-pin header compatible with Raspberry Pi pinouts

  10. Ethernet: Optional via USB-to-Ethernet adapter (not onboard)

  11. Audio: HDMI audio output

  12. Power Input: 5 V/2 A via USB Type-C

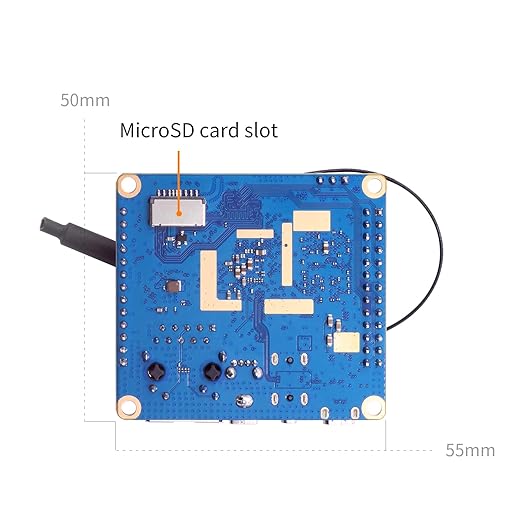

  13. Dimensions: Approx. 55 × 50 mm

  14. Operating Temp: –10 °C to +60 °C

  15. Applications: IoT edge devices, remote communication, smart hubs, 4G-enabled sensors, lightweight media playback

Non-returnable
₹5,000.00 ₹6,000.00
Product Details

The Orange Pi Zero 3 4G is a compact, budget-friendly single-board computer powered by the 64-bit Allwinner H618 quad-core Cortex-A53 processor, offering integrated 4G LTE connectivity via onboard SIM support. It also features dual-band Wi-Fi and Bluetooth 5.0, making it ideal for IoT, smart gateway, and media applications. The board supports up to 4K video playback via HDMI and offers 1 GB or 2 GB LPDDR4 RAM options. With USB 2.0 ports, a 26-pin GPIO header, and eMMC + microSD storage support, it is well-suited for remote sensing, communication hubs, and lightweight multimedia systems.


• Allwinner H618 quad-core 64-bit Cortex-A53 SoC
• Optional 4G LTE support via built-in SIM slot (Zero 3 4G version)
• Dual-band Wi-Fi (2.4/5 GHz) and Bluetooth 5.0
• Up to 4K@30 fps HDMI output for multimedia content
• 1 GB LPDDR4 onboard RAM (some variants may include 2 GB)
• Supports eMMC modules and microSD cards for storage
• Compact board size ideal for space-constrained installations
