Brand : HannStar
Size : 7.0"
Condition : New
Panel Type : a-Si TFT-LCD, LCM
Work Mode : 3S5P WLED, 20K hours
Warranty : 03 Months

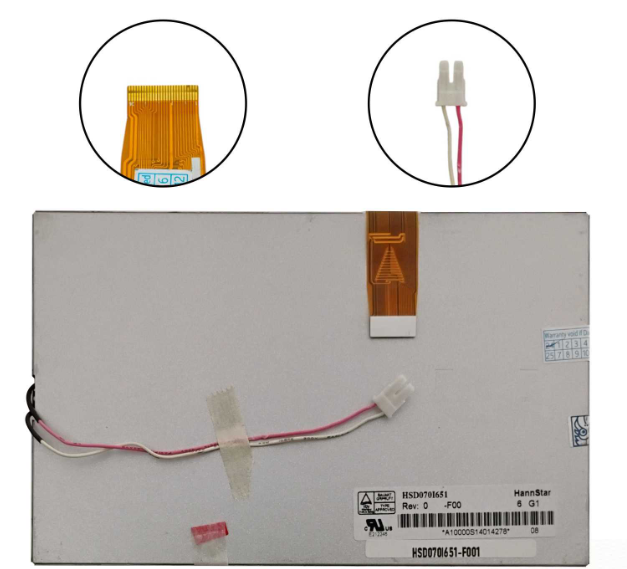

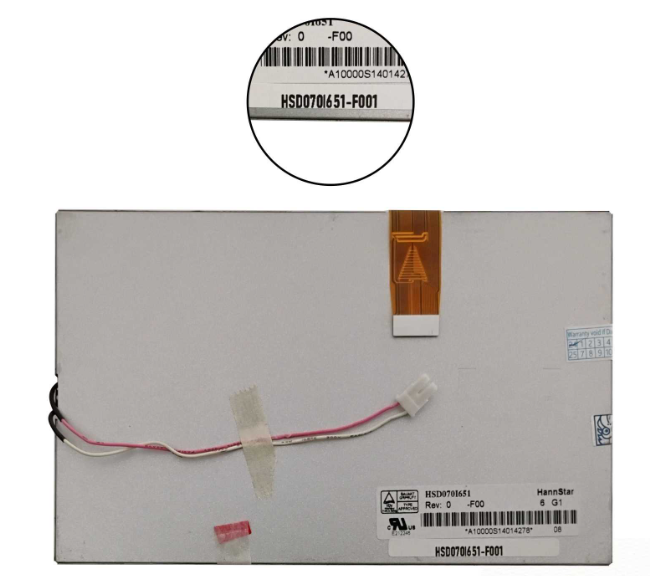

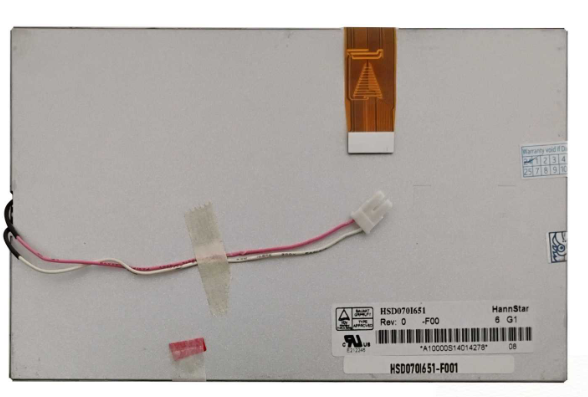

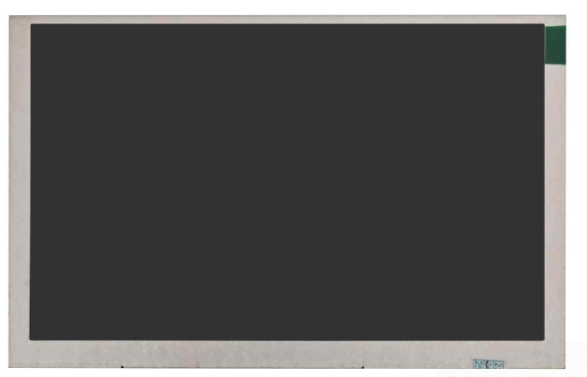

HannStar HSD070I651-F001 LCD DISPLAY
Specification:
Available Offer
Share :
The HannStar HSD070I651-F001 LCD Module is a 7.0-inch a-Si TFT-LCD panel designed for applications requiring reliable performance and clear visuals. It offers a resolution of 480(RGB) × 234 with a pixel density of 76 PPI and an active area of 154.08(W) × 86.58(H) mm, making it suitable for compact display requirements. The panel provides a luminance of 200 cd/m² (Typ.) and a contrast ratio of 500:1 (Typ.), ensuring balanced brightness and sharp image quality. With viewing angles of 70/70/65/65 (CR≥10) and a fast response time of 5/20 ms (Tr/Td), it delivers good visibility and reduced motion blur. It supports full color output with antiglare treatment and 3H hard coating for improved readability in various lighting conditions. Operating in RGB Vertical Stripe mode with a TFT specific Analog RGB interface (26 pins), the display runs at a 60Hz frame rate and requires a 3.3V/15V power supply. The 3S5P WLED backlight is rated for 20,000 hours, and the module is designed for durability with an operating temperature range of −30°C to 80°C and storage range of −20°C to 70°C.
