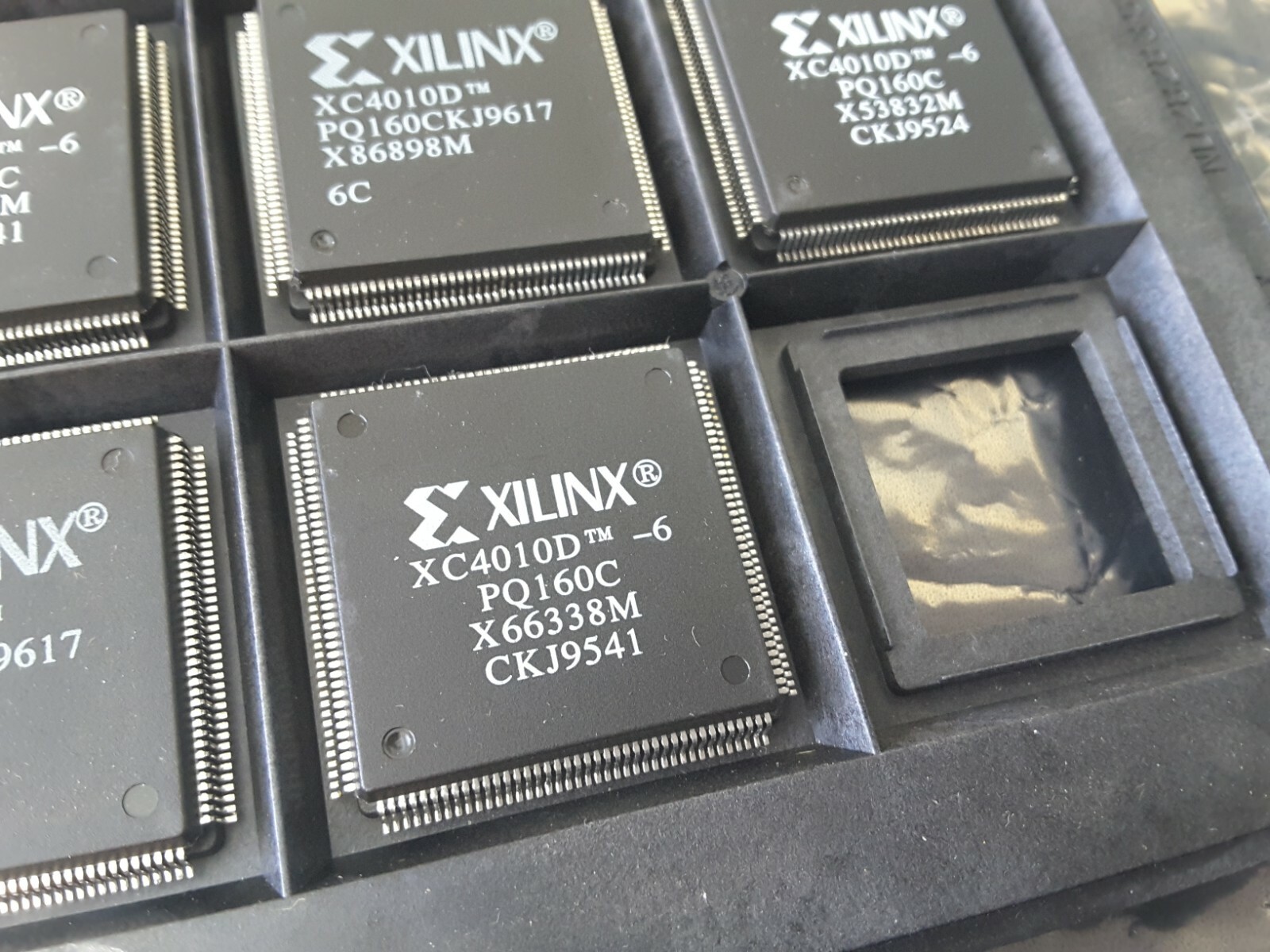

XILINX XC4010D -6 PQ160C

The Xilinx XC4010D‑6 in a PQ160 package is a classic FPGA from the XC4000D series, offering around 10,000 gates. This chip enables designers to implement complex programmable logic for applications such as glue logic, custom state machines, signal processing, and legacy systems requiring moderate performance. Its EEPROM-based configuration allows in-system updates, making it suitable for embedded prototypes or field-upgradable designs.

Features:

• Approximately 10,000 usable logic gates with 144 CLBs

• 160 configurable I/O pins for flexible interfacing

• In-system programmability via EEPROM or serial PROM

• Supports JTAG boundary scan for testing and diagnostics

• Programmable slew rates and input pull-ups/downs

• -6 speed grade offers a balance between speed and power consumption

• Industrial-compatible operation from 0 °C to 70 °C
