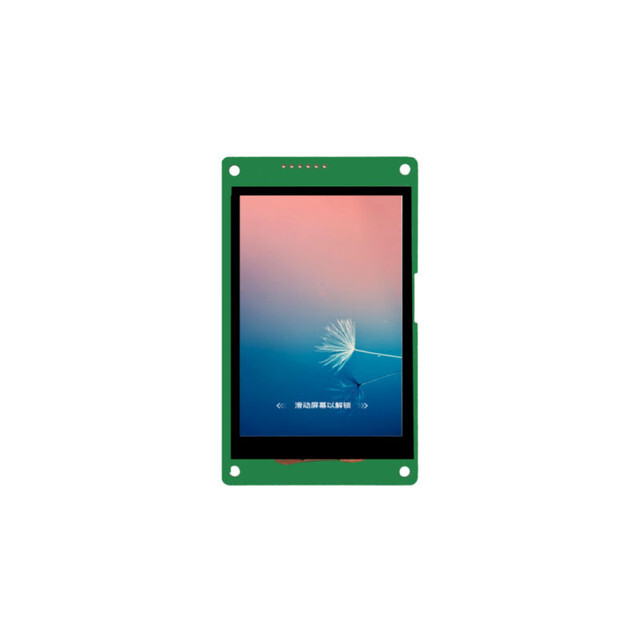

Specifications:
Display Size: 3.5 inches
Resolution: 320x240 pixels (QVGA)
Interface: Parallel (typically RGB or MCU)
Type: TFT LCD display with controller
Use: Human-Machine Interface (HMI), embedded systems
Non-returnable
₹2,000.00 ₹2,500.00
Specifications:
Display Size: 3.5 inches
Resolution: 320x240 pixels (QVGA)
Interface: Parallel (typically RGB or MCU)
Type: TFT LCD display with controller
Use: Human-Machine Interface (HMI), embedded systems

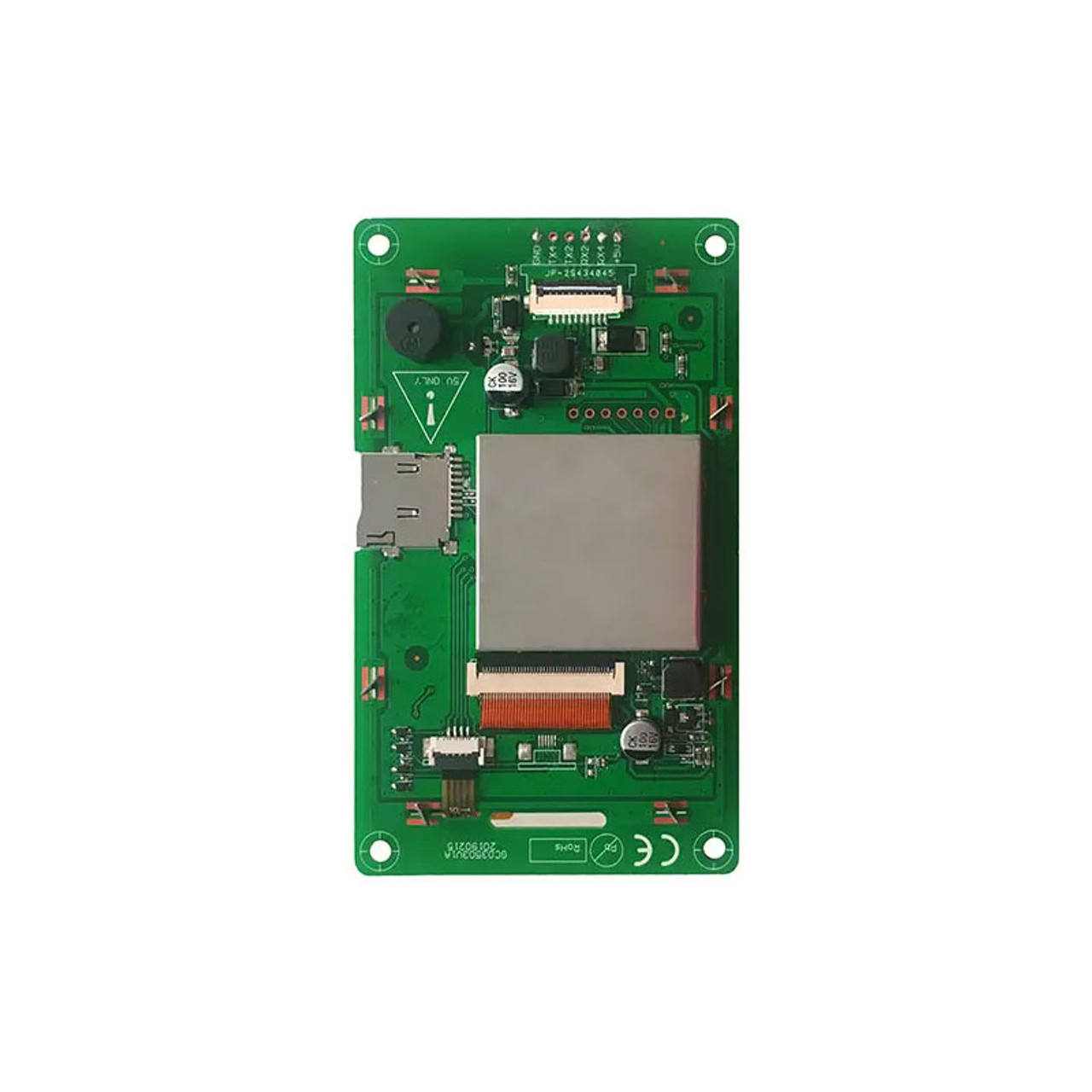

LCM interface FPC40_0.5mm, RGB interface TP interface Capacitive touch: IIC interface Resistive touch: 4Pin_1.0mm interface User interface 10Pin_1.0mm latching socket for power supply and serial communication. Download rate(typical value): 12KByte/s Flash 16 MBytes NOR Flash, for fonts, pictures and audio files. Rewrite cycle: over 100,000 times Buzzer 3V passive buzzer. Power: <1W SD card interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB flash disk PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product return to normal
