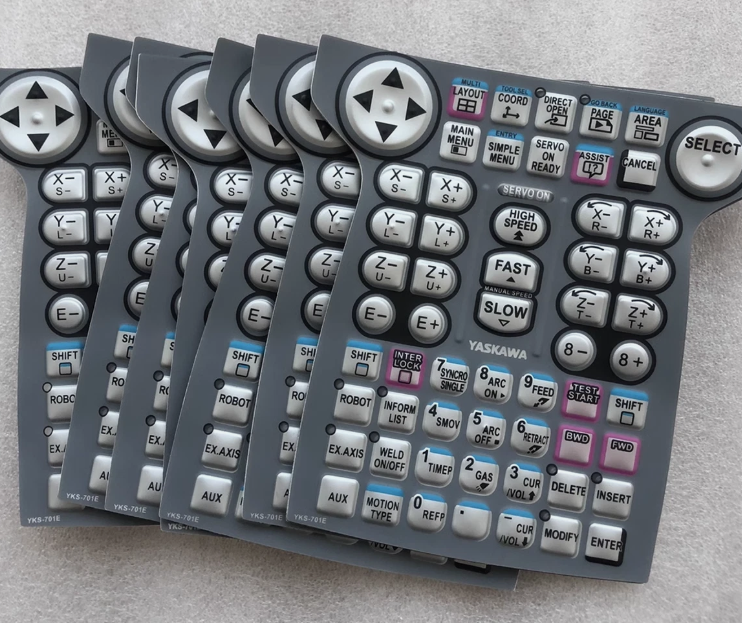

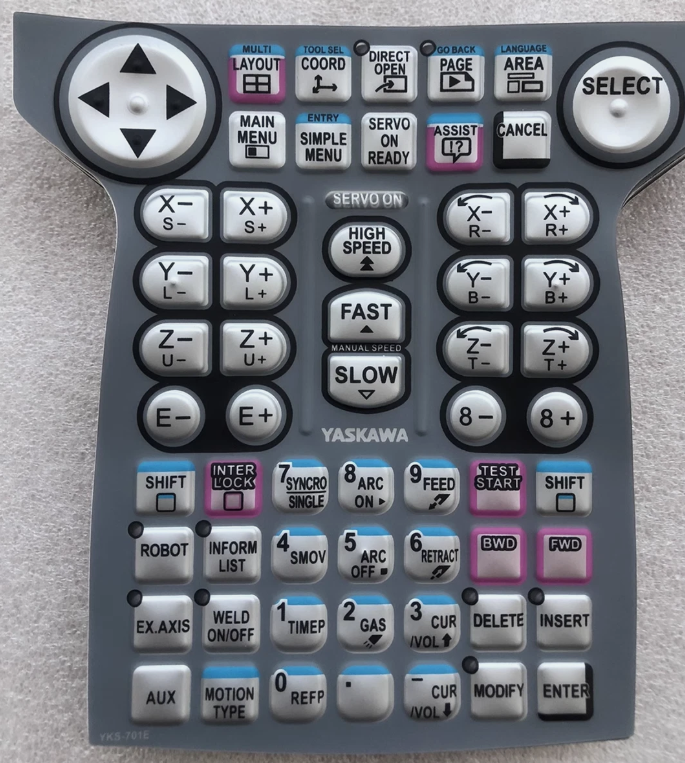

ELECTRONIC COMPONENTS YKS-701E Yaskawa Keypad
YKS-701E Yaskawa Keypad
YKS-701E Yaskawa Keypad
YKS-701E Yaskawa Keypad

YKS-701E Yaskawa Keypad

Specifications:

  1. Model Number: YKS-701E

  2. Display Type: 7-segment LED display (4-digit or more depending on model)

  3. Interface Type: Plug-in via keypad connector on the drive (usually RJ-type port)

  4. Compatibility: Designed for Yaskawa VFDs (e.g., VS-616G5, J1000, V1000 series)

  5. Functionality:
      • Real-time motor status monitoring
      • Parameter viewing/editing
      • Fault code display
      • Start/Stop motor control (manual mode)

  6. Button Layout: Tactile push buttons for navigation (▲▼◄►), Enter, Escape, Run, and Stop

  7. Operating Voltage: Powered via the VFD unit (no external power needed)

  8. Communication Protocol: Proprietary serial connection to the drive

  9. Mounting Style: Panel mountable or handheld (optional extension cables available)

  10. Material: Industrial-grade ABS plastic casing

  11. Dimensions: Approximately 100 mm × 60 mm × 20 mm

  12. Weight: ~80–100 grams

  13. Display Status Indicators: May include RUN, STOP, Hz, A, V, and fault codes

Non-returnable
₹7,000.00 ₹10,000.00
Product Details

The YKS-701E is a digital operator (keypad) designed for Yaskawa variable frequency drives (VFDs). It functions as a user interface for drive configuration, parameter setting, and real-time status monitoring. This keypad allows technicians and operators to conveniently navigate through menus, adjust parameters, and monitor motor and system performance directly from the front panel.

Typically used in industrial automation systems, the YKS-701E is compatible with various Yaskawa drive series such as the VS-616G5, J1000, V1000, and other models depending on firmware compatibility. It features a multi-digit 7-segment LED display, tactile push buttons, and an easy plug-in interface.


Features:

  • Simple, user-friendly interface for commissioning and troubleshooting Yaskawa drives.

  • Supports motor control functions including manual run/stop and speed adjustment.

  • Displays real-time values such as voltage, current, frequency, and fault diagnostics.

  • Compatible with a wide range of Yaskawa inverter models.

  • Plug-and-play operation without needing external power.

  • Durable and reliable for industrial environments.

  • Optional mounting or extension accessories for flexible installation.
