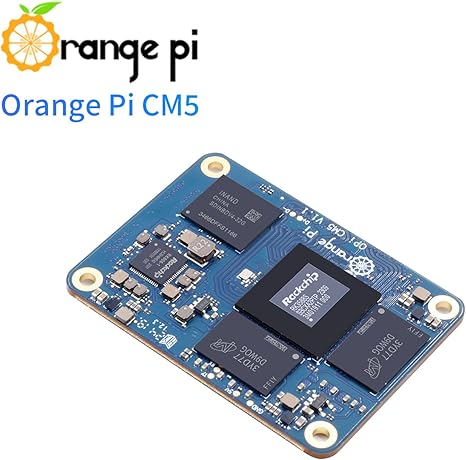

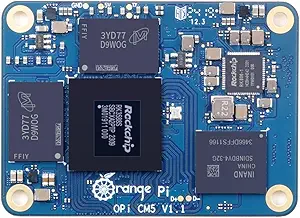

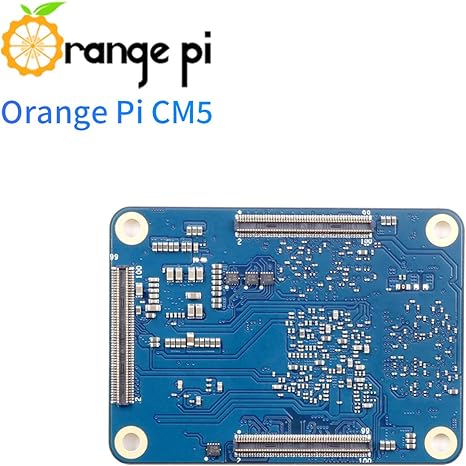

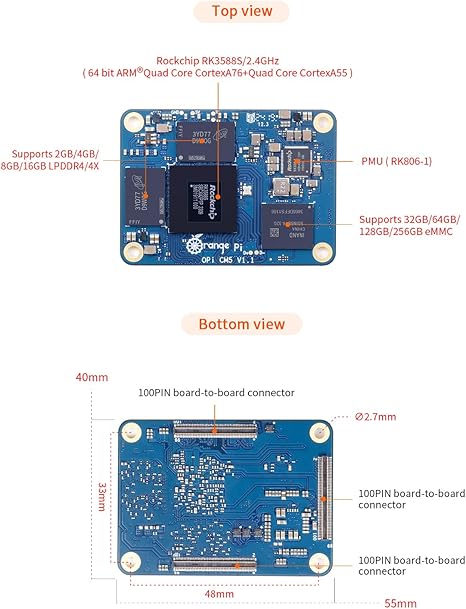

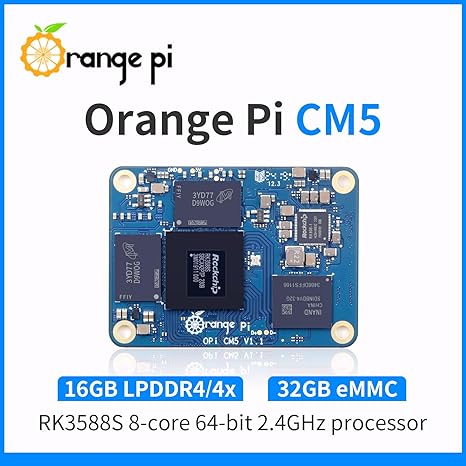

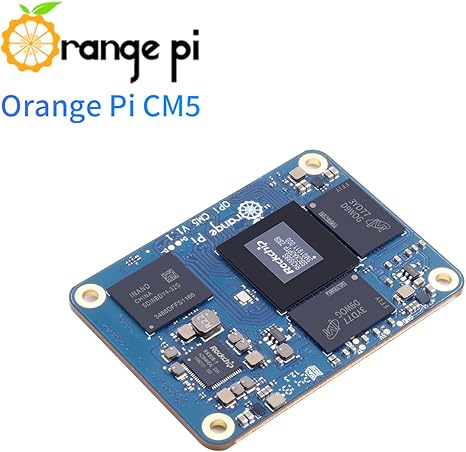

The OrangePi CM5 is a high-performance compute module built around the Rockchip RK3588S SoC, a powerful octa-core ARM processor tailored for AI edge computing, multimedia processing, and advanced embedded applications. With 4GB LPDDR4 RAM and 32GB onboard eMMC storage, this module is designed for use in custom hardware platforms like the Orange Pi CM5 Tablet Base Board.
The CM5’s compact form factor, rich peripheral support, and high-speed interfaces make it ideal for developers building tablets, industrial controllers, AI vision systems, digital signage, and IoT edge devices.

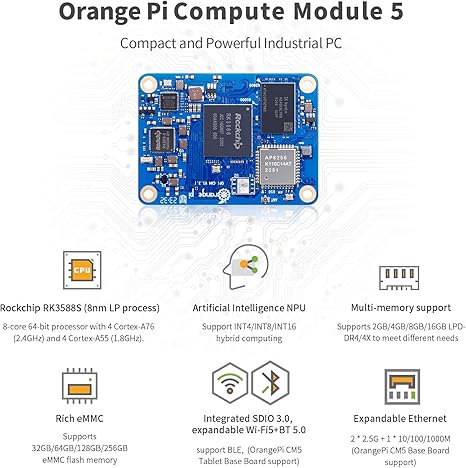

Key Features:
Powered by Rockchip RK3588S SoC
4× Cortex-A76 + 4× Cortex-A55 (big.LITTLE architecture)
Integrated NEON and AI accelerator for edge computing
4GB LPDDR4 RAM onboard (soldered)
32GB eMMC flash storage onboard
Compact Compute Module (CM) form factor
High-speed interfaces: MIPI DSI, CSI, USB 3.0, PCIe 2.1, I2C, SPI
Support for 4K video decoding and display output
Compatible with Android and Debian-based Linux OS
Designed to be used with OrangePi CM5 baseboards for rapid development
