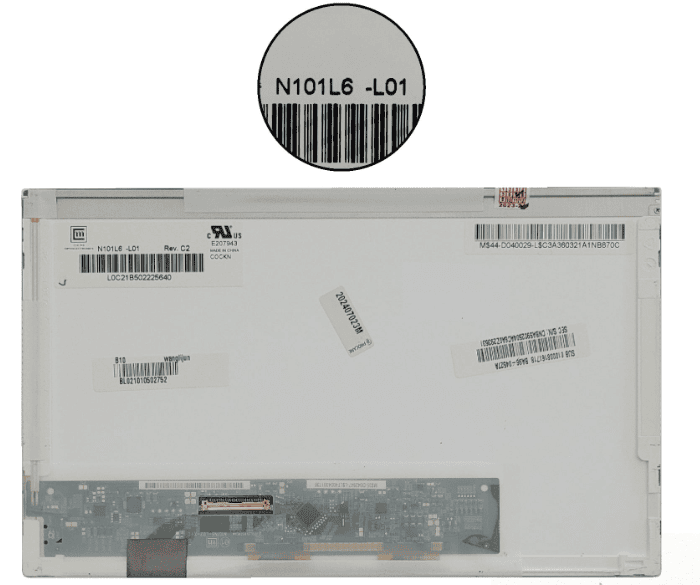

ChiMei N101L6-L01 LCD DISPLAY
ChiMei N101L6-L01 LCD DISPLAY
ChiMei N101L6-L01 LCD DISPLAY
ChiMei N101L6-L01 LCD DISPLAY
ChiMei N101L6-L01 LCD DISPLAY

ChiMei N101L6-L01 LCD DISPLAY

Specification:

  1. Display Type: a-Si TFT-LCD (Active Matrix)

  2. Screen Size: 10.1 inches (diagonal)

  3. Resolution: 1024 × 600 (WSVGA)

  4. Aspect Ratio: 16:9

  5. Pixel Pitch: ~0.2175 mm × 0.2175 mm

  6. Color Depth: 262K colors (6-bit)

  7. Brightness: ~200–250 cd/m² (typical)

  8. Contrast Ratio: ~500:1

  9. Viewing Angle: 45° (L/R) / 15° (U) / 35° (D)

  10. Surface Treatment: Anti-glare (AG), Hard coating (3H)

  11. Backlight Type: White LED (Edge-lit), typically with 40K hr lifetime

  12. Interface: 1-channel 6-bit LVDS

  13. Input Voltage: 3.3V (typical)

  14. Operating Temperature Range: 0°C to +50°C

  15. Storage Temperature Range: -20°C to +60°C

Non-returnable
₹8,150.00 ₹10,000.00
