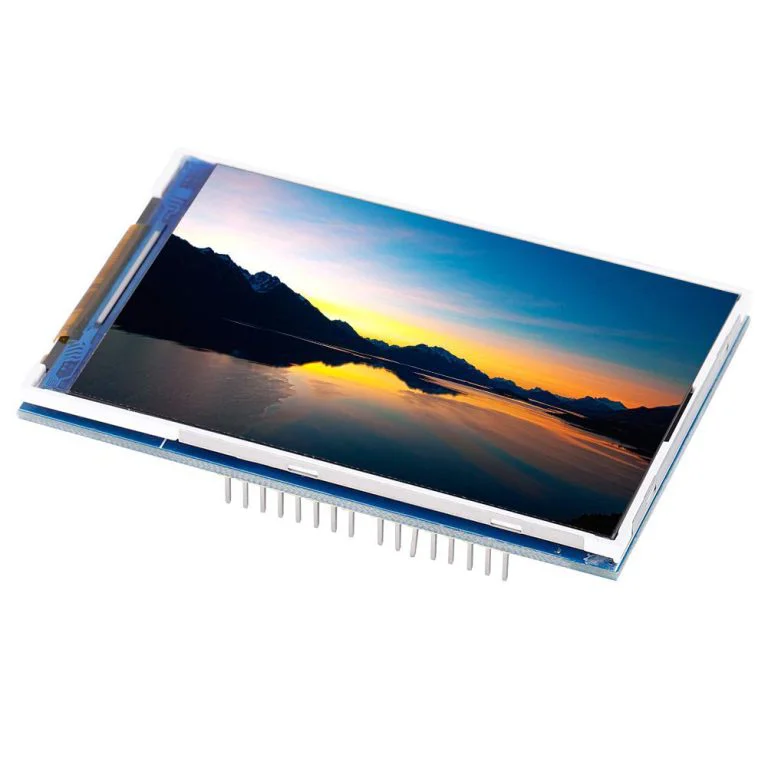

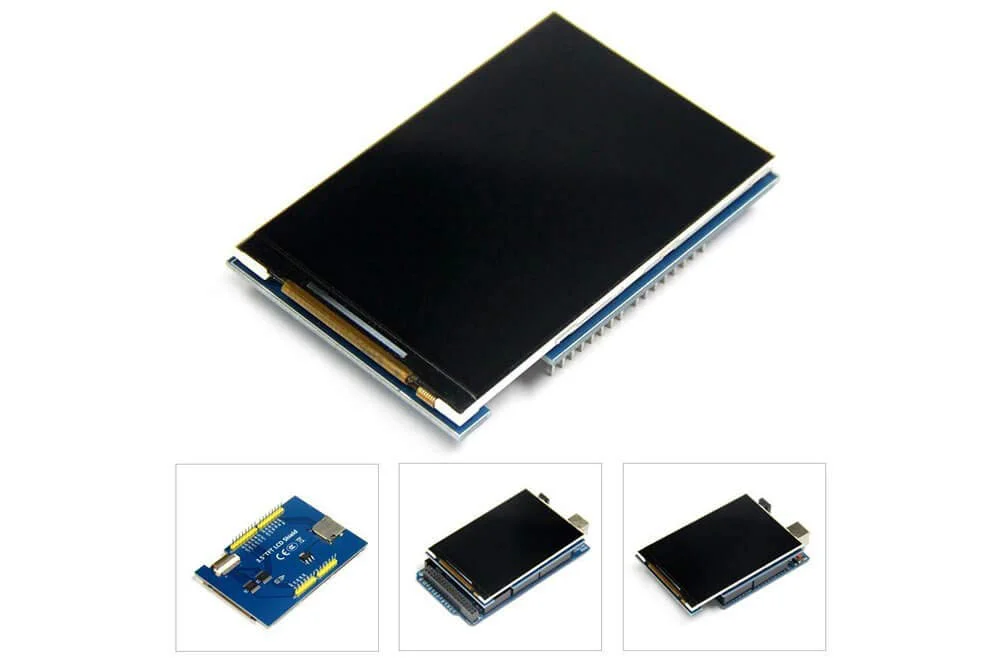

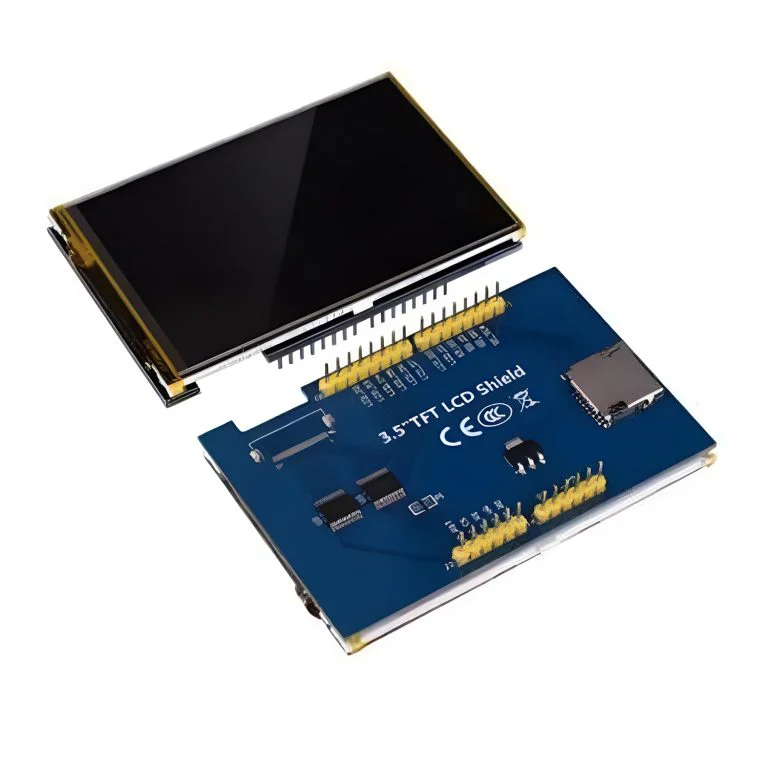

DisplayWAVESHARELCD 3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno
3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno

3.5" inch ILI9486 TFT Touch Shield LCD Module 480×320 for Arduino Uno

Specifications:
1. Display Size: 3.5 inches (diagonal)
2. Resolution: 480 × 320 pixels
3. Controller IC: ILI9486
4. Color Depth: 16-bit (65,536 colors)
5. Touch Panel: 4-wire resistive touch screen

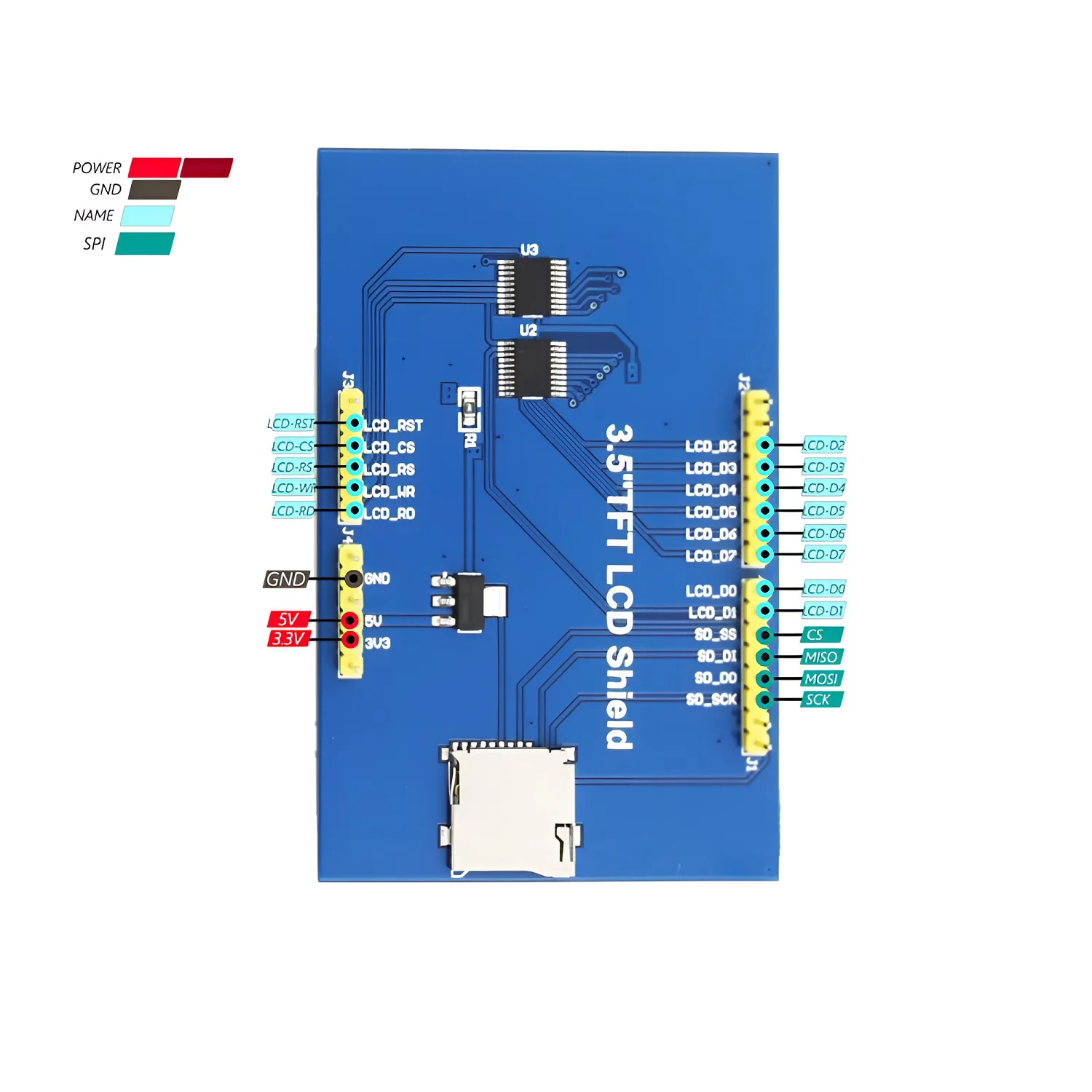

6. Interface: 8-bit Parallel (compatible with Arduino Uno digital pins)
7. Operating Voltage: 5V (via Arduino)
8. Backlight Control: Always ON by default (can be modified)

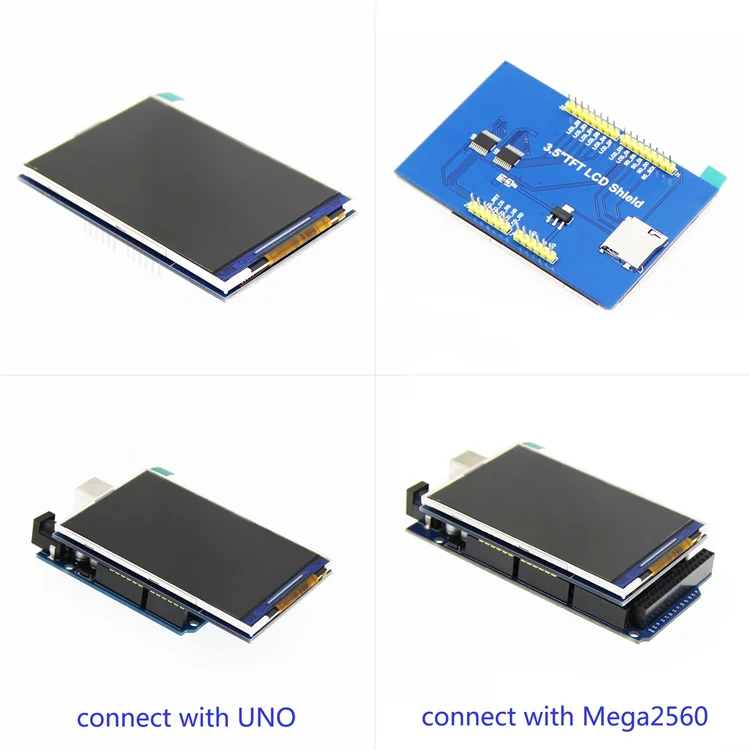

9. Compatibility: Arduino Uno, Mega 2560 (with jumper wires or shield)
10. Dimensions: ~85mm (L) × 55mm (W) × 12mm (H)
11. Weight: ~50–60 grams

🔧 Libraries: Compatible with libraries like TFT_HX8357, Adafruit_ILI9486, or MCUFRIEND_kbv for easy integration with Arduino sketches.

Non-returnable
₹760.00 ₹850.00
Product Details

The 3.5-inch ILI9486 TFT LCD Touch Shield is a color display module designed specifically for use with the Arduino Uno and compatible boards. Featuring a resolution of 480×320 pixels, this module offers a 16-bit RGB color display with a resistive touch panel. It connects via parallel interface, and the shield form factor allows direct plug-and-play without the need for jumper wires or breadboards. The ILI9486 controller ensures smooth graphics rendering, making it suitable for graphical user interfaces (GUIs), meters, games, and touch-controlled projects.

Features:
- 3.5-inch TFT LCD display with 480×320 resolution
- Integrated resistive touch panel
- Built-in ILI9486 controller for graphics rendering
- Direct shield mount for Arduino Uno R3 and similar boards
- Supports 16-bit color (65K colors)
- Backlight for better visibility in low light
- Ideal for touch interfaces, sensor data display, dashboards, and DIY electronics
