Specifications: 1. Motor Type: DC Eccentric Rotating Mass (ERM) Vibration Motor 2. Operating Voltage: 3V to 5V DC 3. Rated Voltage: 3V DC (typical) 4. Current Consumption: ~60–100 mA at 3V 5. Motor Diameter: Approx. 10 mm 6. Motor Length: Approx. 3.4–4 mm (body only, not including shaft) 7. Vibration Strength: 0.8 G – 1.2 G (depending on voltage) 8. Motor Speed: ~12,000 RPM at 3V 9. Connector: Solderable wire leads (pre-attached or bare terminals) 10. Weight: ~1–2 grams 11. Operating Temperature: –10°C to +60°C
Non-returnable
₹150.00 ₹300.00
Share :
Product Details

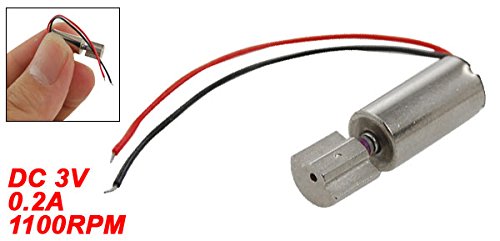

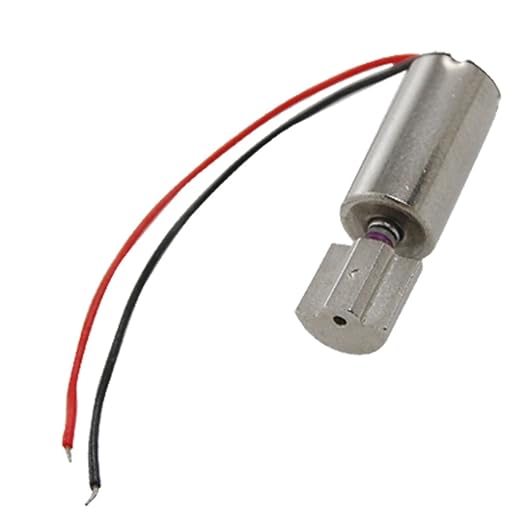

The vibration motor is a compact DC-powered eccentric rotating mass (ERM) motor that generates vibration feedback by rotating an off-center weight attached to its shaft. Commonly used in wearable electronics, mobile phones, toys, haptics feedback devices, and alerts systems, this motor is cylindrical and operates on a typical voltage range of 3V to 5V DC. The motor is often mounted inside enclosures and delivers strong vibrations relative to its small size. Its low power consumption, silent operation, and compact design make it suitable for battery-powered or space-constrained applications.
🔹 Key Features: • Compact and lightweight design • Generates tactile vibration feedback • Operates on low DC voltage (3V–5V) • Cylindrical casing for easy embedding in small devices • Reliable and maintenance-free construction
