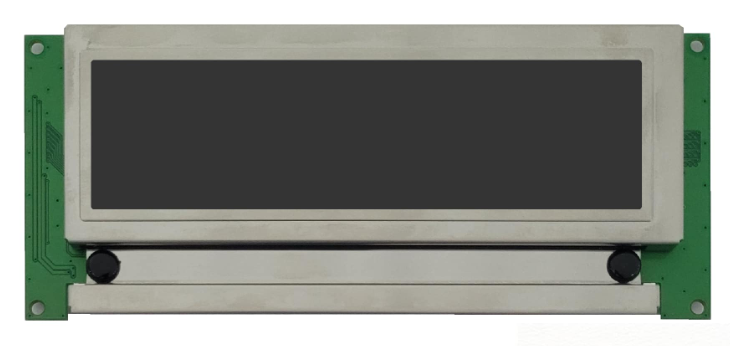

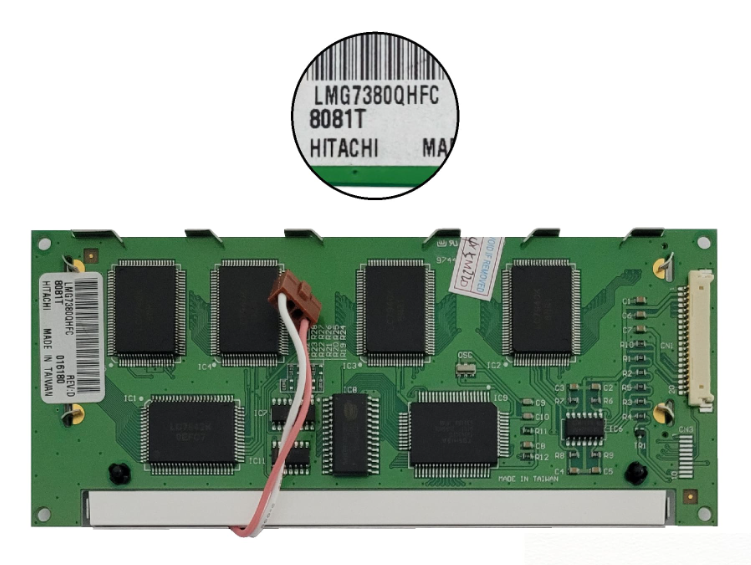

The Hitachi LMG7380QHFC is a 4.8-inch monochrome FSTN (Film Super Twisted Nematic) graphic LCD panel offering a 256×64-pixel resolution. Engineered with industrial-grade durability and featuring an integrated T6963C graphics controller, this module ensures seamless interfacing and dependable performance in harsh environments. It is equipped with a CCFL backlight, delivering consistent visibility in low-light or indoor applications.

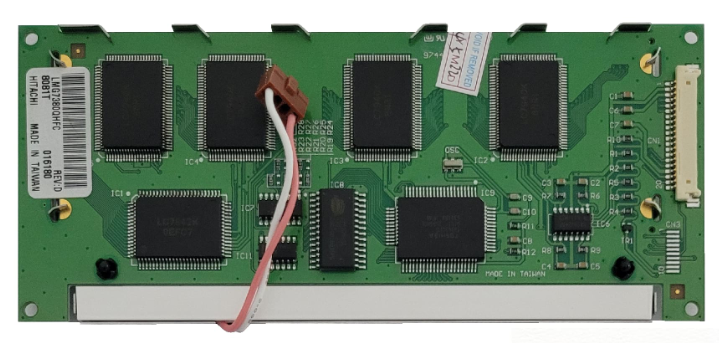

Mechanical Specifications:
Module Dimensions: ~150 mm (W) × 50 mm (H) × ~10 mm (D)
Active Area: ~115 mm (W) × 28 mm (H)
Weight: Approx. 130–160 grams
Mounting: Standard metal bezel with side tabs for secure installation
Interface: 8-bit/16-bit parallel data bus compatible with standard MCUs
Electrical & Environmental Specs:
Supply Voltage: 5V DC logic

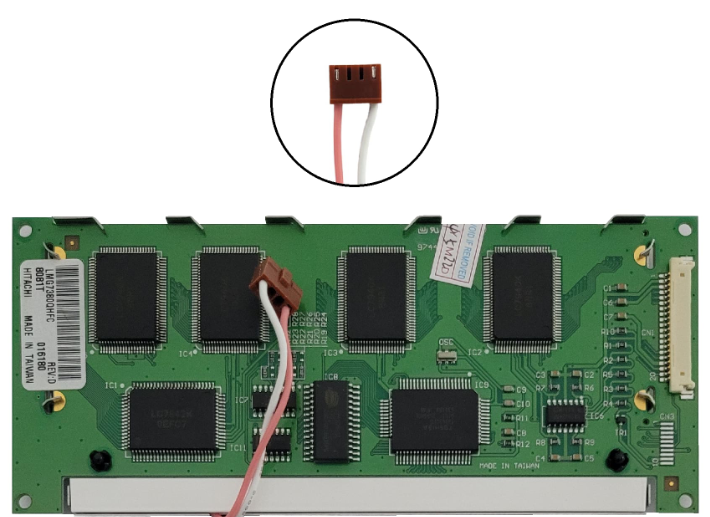

Backlight Voltage: External inverter required for CCFL (300–600V AC typical)
Power Consumption: Low power operation for embedded use
Operating Temperature: –10 °C to +60 °C
Storage Temperature: –20 °C to +70 °C
ESD and vibration tolerance: Industrial-rated durability
Applications:
Human-Machine Interfaces (HMI)
Factory automation systems
Industrial equipment control panels
Medical instruments
Point-of-sale and kiosk displays
Custom embedded GUI devices
