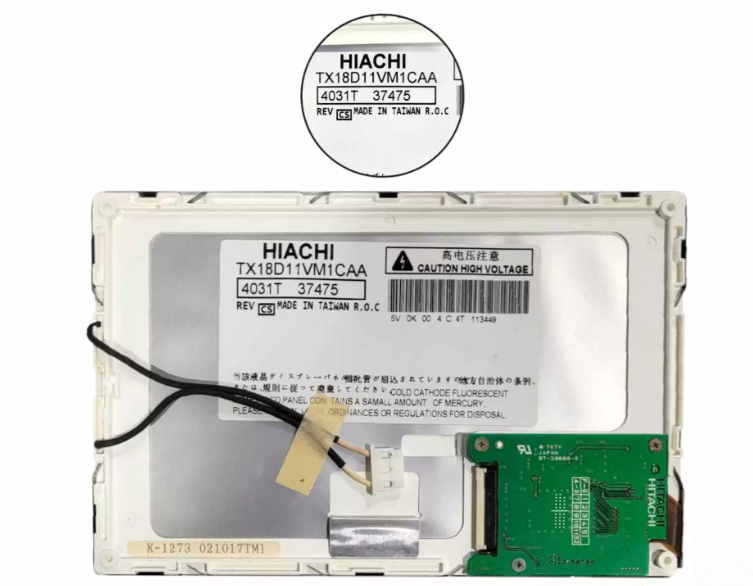

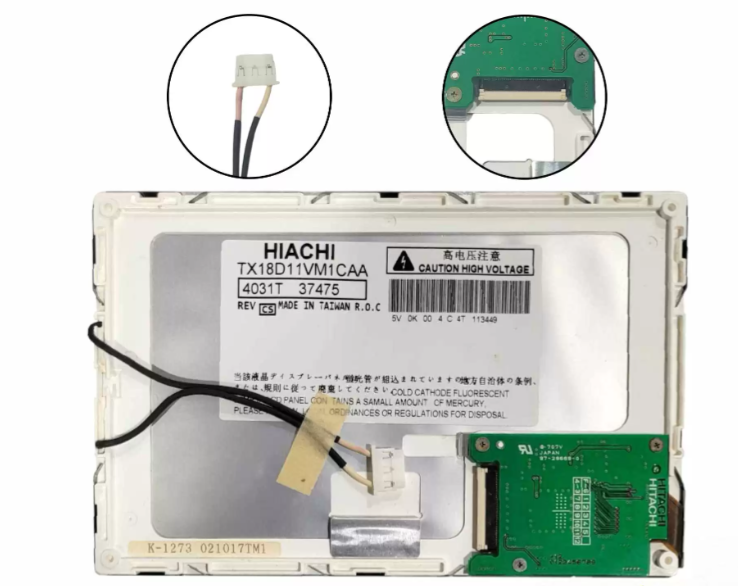

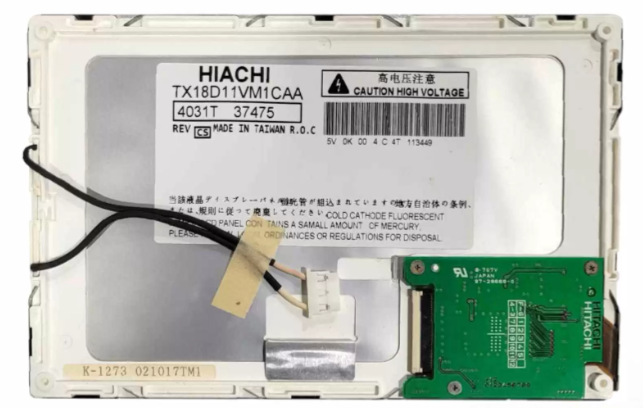

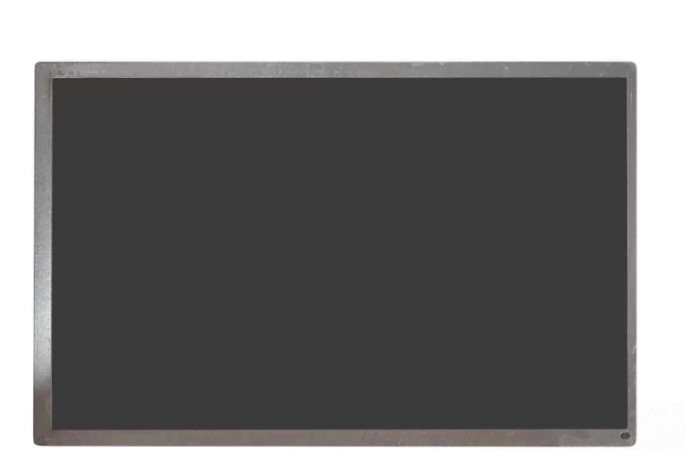

Hitachi TX18D11VM1CAA LCD DISPLAY

The Hitachi TX18D11VM1CAA is an 18.0-inch TFT LCD panel delivering WXGA (1280×768) resolution. With a high-brightness white LED backlight, wide viewing angles, and LVDS/CMOS interface, this module is designed for industrial and embedded applications where clarity and durability are essential—such as medical devices, HMI consoles, and rugged equipment.

1. Aspect Ratio: 5:3

2. Display Type: a-Si TFT LCD, normally white

3. Brightness: Approximately 350 cd/m²

4. Contrast Ratio: Around 600:1

5. Viewing Angles: ≥160° horizontal / ≥150° vertical

6. Color Depth: 16.7 million colors (8-bit)

7. Backlight Life: ~50,000 hours

8. Active Area: ~376.32 mm × 226.56 mm

9. Backlight Type: White LED edge-lit

10. Surface Treatment: Anti-glare, hard coating (3H)
