AUO G104SN03-V.0 LCD DISPLAY

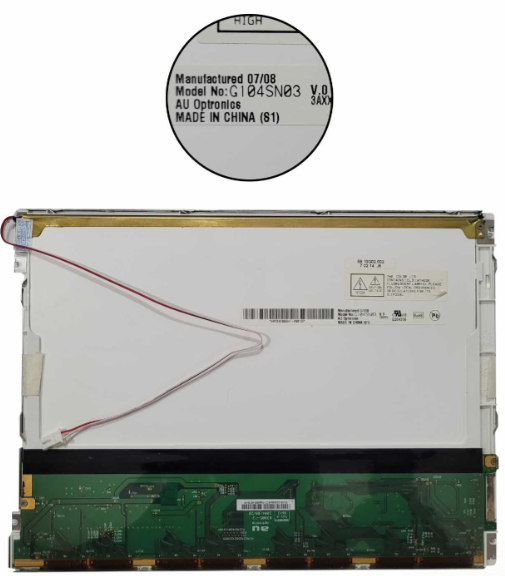

Refurbished AUO G104SN03-V.0 (G104SN03V0) is one of the most popular LCD Module which is mainly used in industrial and medical applications. It is a 10.4 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral CCFL backlight system, without backlight driver, without touch screen. It’s resolution 800(RGB)×600, SVGA 96PPI and contrast ratio 500 : 1 (Typ.) (TM). It features an operating temperature range of 0 ~ 50°C, a storage temperature range of -20 ~ 60°C, and the maximal vibration level of 1.5G (14.7 m/s²). Our engineers has entered all the specification details about this LCD screen according to the datasheet. Although errors may occur during this process.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
